Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Specifications
Table Size (mm) :
110
Table Travel (X) (mm) :
900 mm
Table Travel (Y) (mm) :
900 mm
Table Travel (Z) (mm) :
1400 mm
Number of Axes :
5
Max. Table Load(kg) :
5000
Travel (W-axis) (mm) :
450 mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Positioning Accuracy (X axis) mm :
0.03
Positioning Accuracy (Y axis) mm :
0.04
Positioning Accuracy (Z axis) mm :
0.02
No. of Spindles :
Single
Range of Spindle Speed(r.p.m) :
200 r.p.m
Type :
Horizontal
Condition :
New
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
Timeway
Voltage :
220V /380V
Dimension(L*W*H) :
4910x2451x2750
Weight (T) :
11.5 T
Warranty :
1 Year
Key Selling Points :
Multifunctional
Applicable Industries :
Machinery Repair Shops
Showroom Location :
Russia, Ukraine
Product name :
Boring Machine
Name :
Boring Machine
Application :
Construction Machine Repairing
Functions :
Broing
Product type :
Boring Machine
Machine type :
Horizontal Structure
Certification :
ISO9001
Color :
Custmized
Precision :
High Precision
Keyword :
Boring Machine
Price :
$89,658.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

Horizontal Boring and Milling Machine

Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning,

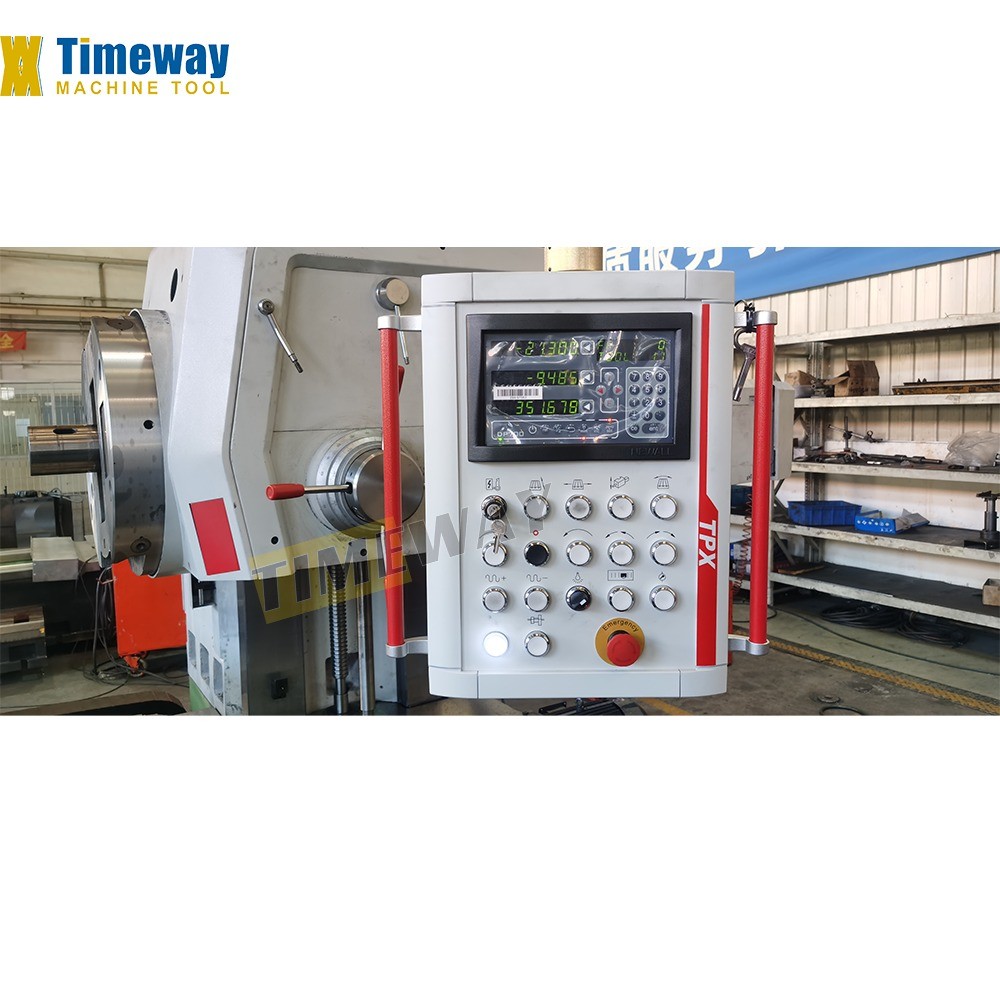

and grooving by radial feed of facing plate slide rest. worktable rotation uses a 4x90° optical positioning device suitable for large workpiece turnover machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation
Specification
Specification
Unit
TPX-110B
TPX-110C
Spindle dia.
mm
110
110
Spindle taper
-
MT6
MT6
Max. spindle torque
N.m
1225
1225
Max. spindle thrust
N
12250
12250
Spindle speed steps
-
22
22
Spindle speed range
rpm
8-1000
8-1000
Main motor power
kw
7.5
7.5
Max. facing head torque
N.m
1960
1960
Facing head dia.
rpm
600
600
Facing head speed range
rpm
4-200
4-200
Facing head speed steps
steps
18
18
Table size
mm
1100x960
1100x960
Max. loading capacity
kg
5000
5000
T-slot size
-
22
22
X/Y/Z travel
mm
900/900/1400
1250/900/1400
Spindle travel
mm
600
600
Facing slide travel
mm
180
180
Distance between spindle center and table
mm
0-900
0-900
X/Y/Z/W-axis rapid feed speed
mm
0.005
0.005
Machine weight
kg
11500
13000
Machine dimensions (LxWxH)
mm
4910x2454x2750
4910×2870×2750

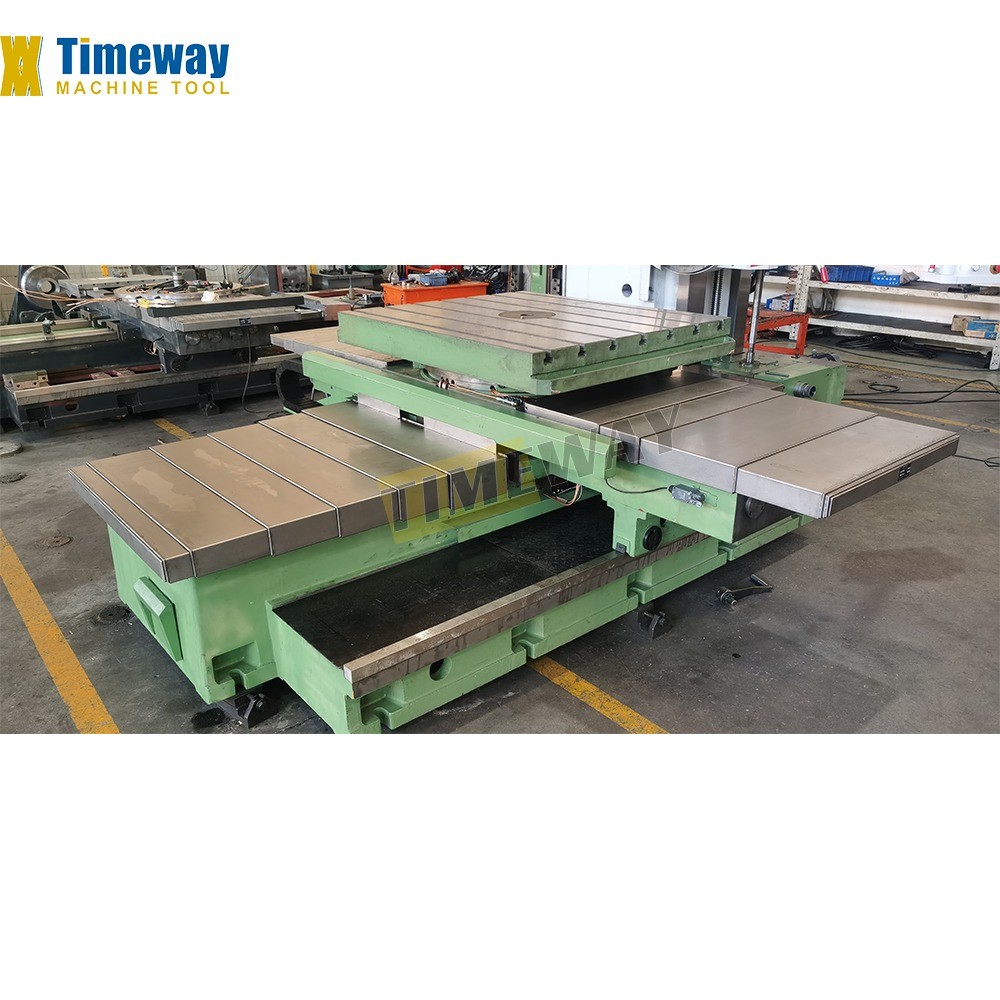

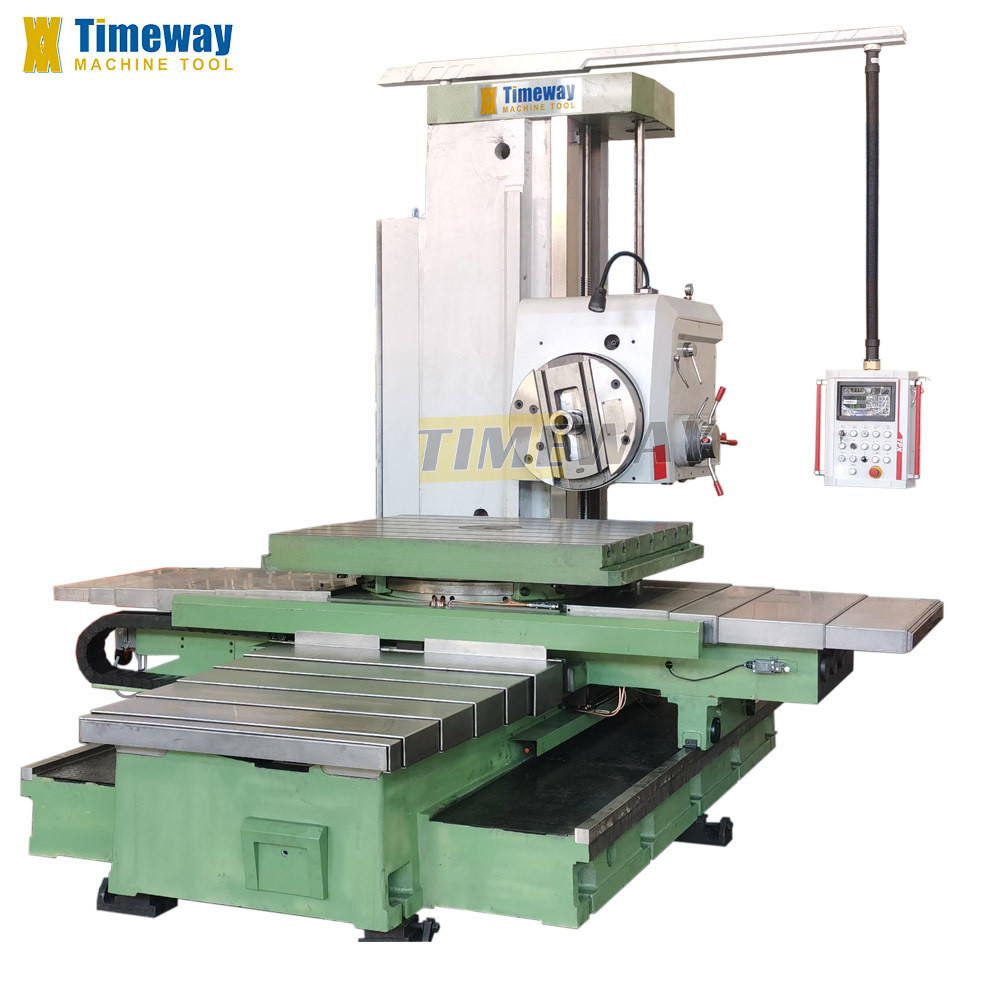

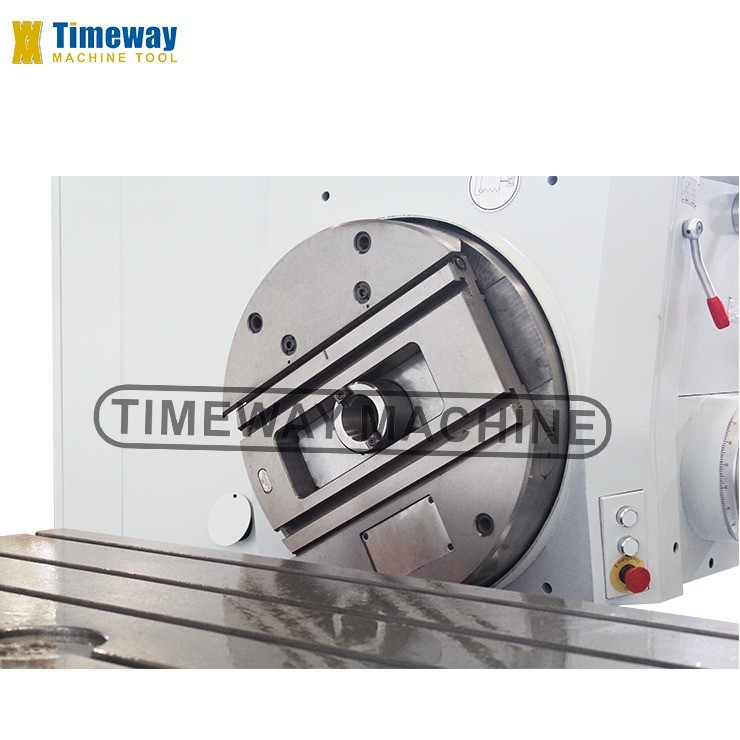

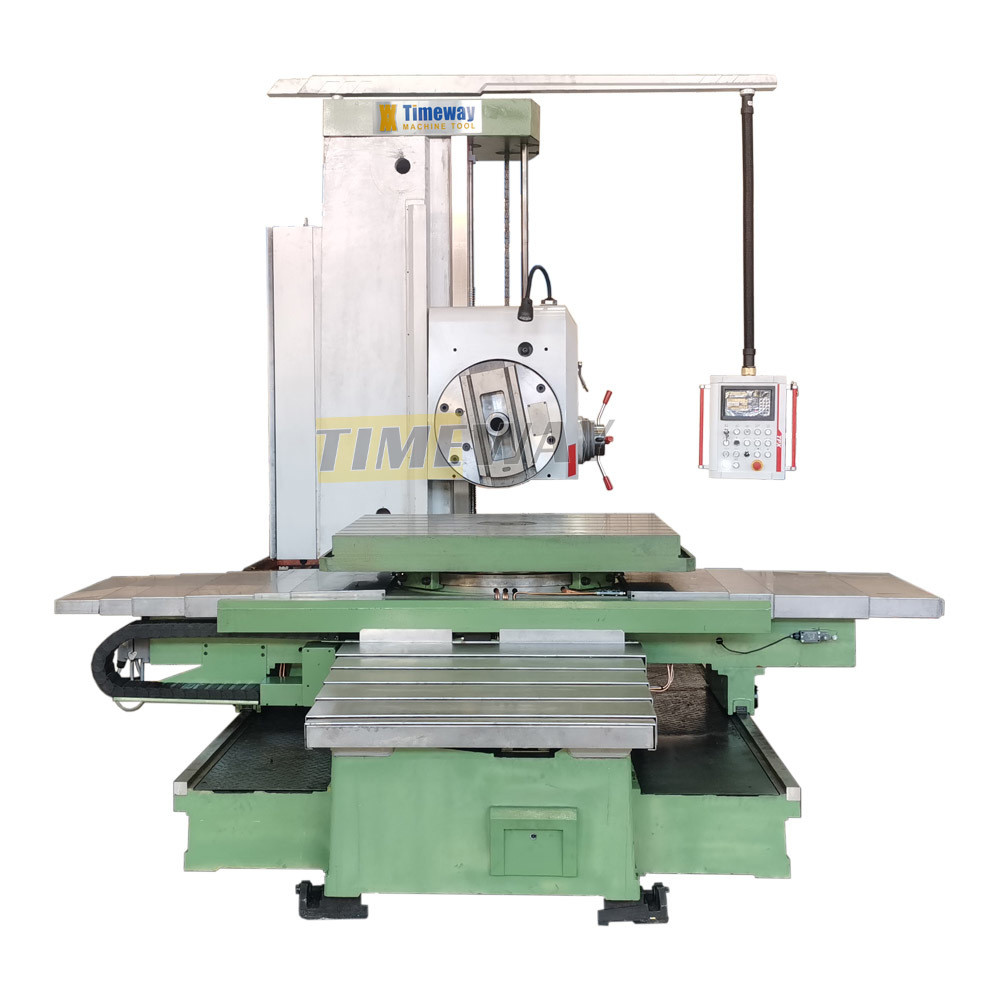

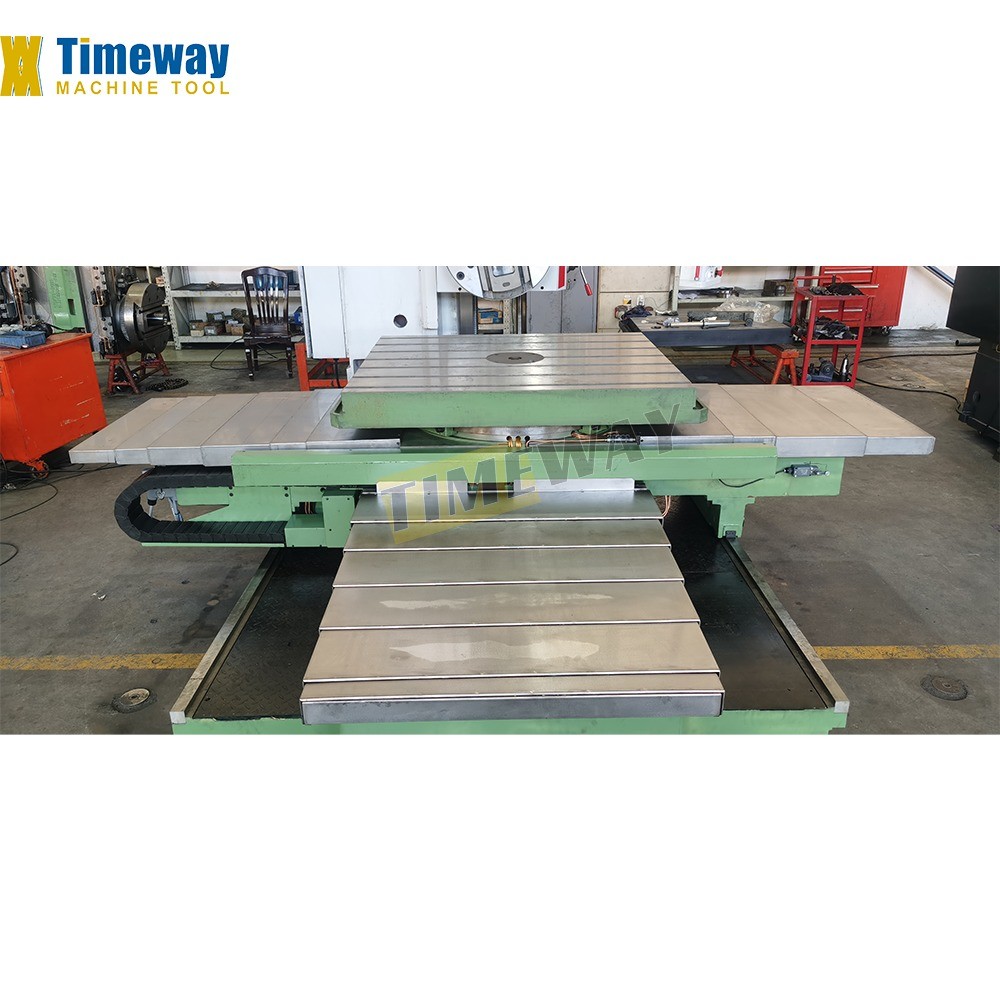

Detailed Images
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Company Profile
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
Horizontal Boring and Milling Machine with Digital Display Table Travel Y 900 mm
