Specifications
Table Travel (X) (mm) :
920/1000
Machining Capacity :
Medium Duty
Table Travel (Y) (mm) :
400
Table Travel (Z) (mm) :
400
Spindle Taper :
R8
Range of Spindle Speed(r.p.m) :
65 - 4500 r.p.m
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
M320
Type :
Universal
Spindle Motor Power(kW) :
2.2
Dimension(L*W*H) :
1520x1550x2080mm
Weight (KG) :
1400
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
New Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
Turret Milling Machine
After-sales Service Provided :
Provided
Table size :
320x1370/320x1500mm
Longitudinal travel (X) :
920/1000mm
Cross travel (Y) :
400mm
Vertical travel (Z) :
400mm
Mill head swivel angle :
±90°
Distance from spindle to table :
0-400mm
Main motor power :
2.2kw
Gross weight (One) :
1400kg
Number of Axes :
3
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Showroom Location :
Kenya, South Korea, Chile, Colombia, Japan, Australia, Canada, United Kingdom, Italy, Germany, Indonesia, India, Russia, Thailand
Core Components :
Motor, Engine
Year :
2024
Price :
$12,000.00/sets 1-2 sets
MOQ :
1 set
Description
You can click on the picture to view the products you are interested in
One-Stop Shopping
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Product Description

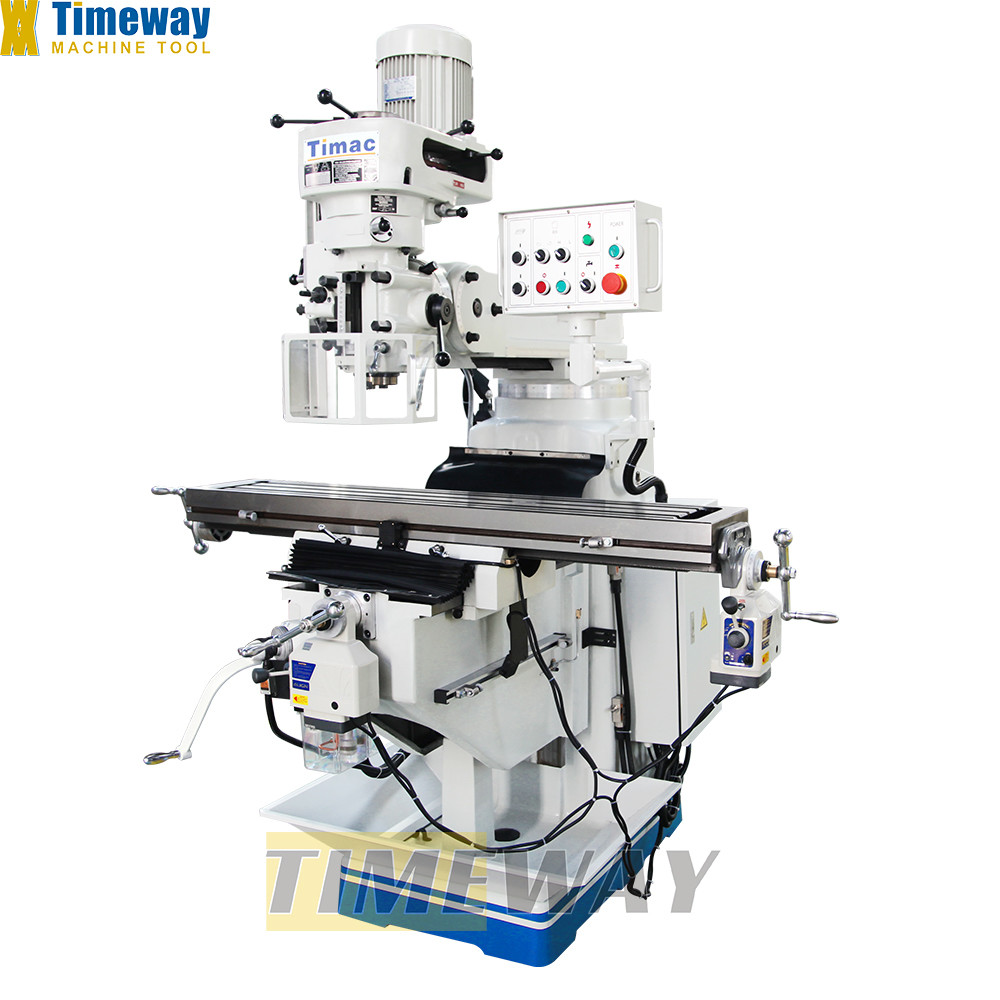

Turret Milling Machine M320

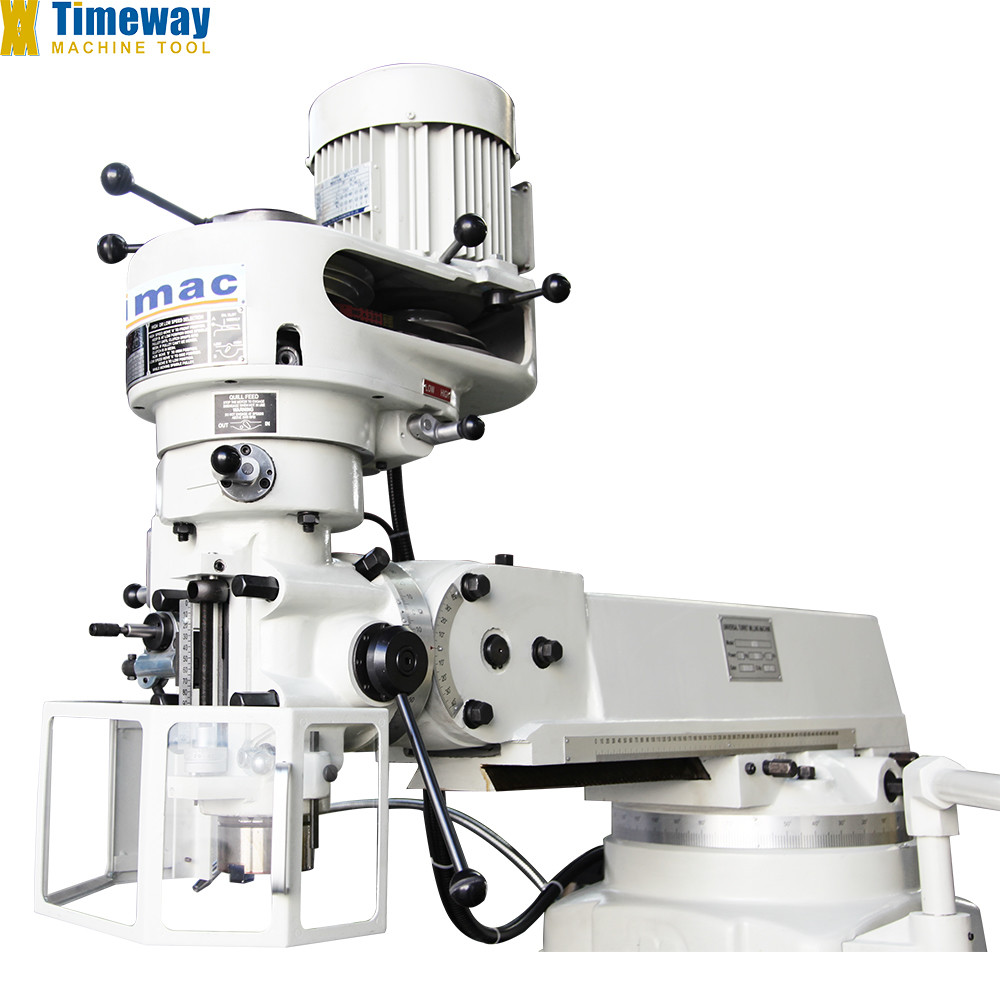

Swivelable mill head from -90° to +90° allows for various operations.
Mill head can be turned, tilted and swivelled making it extremely versatile.
Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Specification
SPECIFICATION
UNIT
M320
Table size
mm
320x1370/320x1500
Longitudinal travel (X)
mm
920/1000
Cross travel (Y)
mm
400
Vertical travel (Z)
mm
400
T-slot (No./width)
mm
3/16
Ram travel
mm
470
Distance from spindle to table
mm
0-400
Spindle taper
-
R8 (Optional : ISO30/ISO40)
Spindle quill travel
mm
127
Spindle speed
rpm
16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200)
Spindle quill automatic feed
mm/r
0.038/0.076/0.152
Main motor power
kw
2.2
Mill head swivel angle
°
±90°
Mill head tilting angle
°
±45°
X/Y/Z-axis guide type
-
▲▲▲
Dimension of package(One)
mm
1520x1550x2080
Gross weight (One)
kg
1400
Notes: "▲" means double dovetail guideway; "■" means rectangular guideway.
