TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
Specifications
Table Travel (X) (mm) :
880/1000
Machining Capacity :
Medium Duty
Table Travel (Y) (mm) :
390
Table Travel (Z) (mm) :
460
Spindle Taper :
Other
Range of Spindle Speed(r.p.m) :
65 - 4500 r.p.m
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
TM300A
Type :
Universal
Dimension(L*W*H) :
160x170x220mm
Weight (KG) :
1640
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
New Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
Turret Milling Machine
After-sales Service Provided :
Provided
Table size :
305x1370/305x1500mm
Table longitudinal travel :
880/1000mm
Knee vertical travel :
390mm
Vertical travel (Z) :
460mm
Knee rapid feed speed :
345mm/min
Ram cross travel :
500mm
Ram swivel angle :
180°
Worktable swivel angle :
±35°
Number of Axes :
3
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Showroom Location :
Kenya, South Korea, Chile, Colombia, Japan, Australia, Canada, United Kingdom, Italy, Germany, Indonesia, India, Russia, Thailand
Core Components :
Motor, Engine
Year :
2024
Price :
$11,900.00/sets 1-2 sets
MOQ :
1 set
Description
You can click on the picture to view the products you are interested in
One-Stop Shopping
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
Product Description

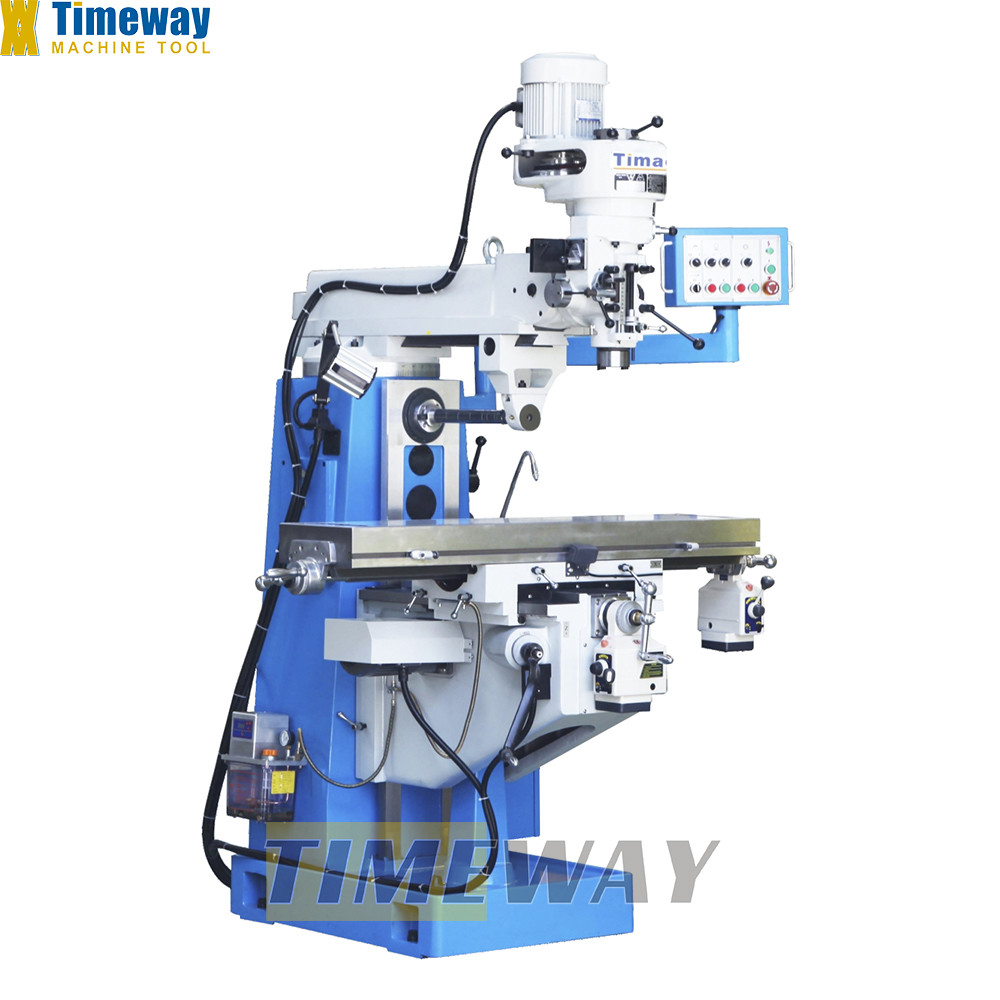

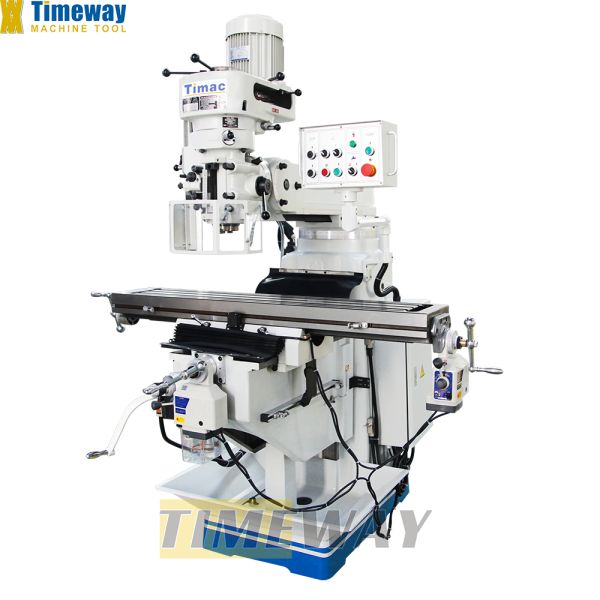

Turret Milling Machine TM300A

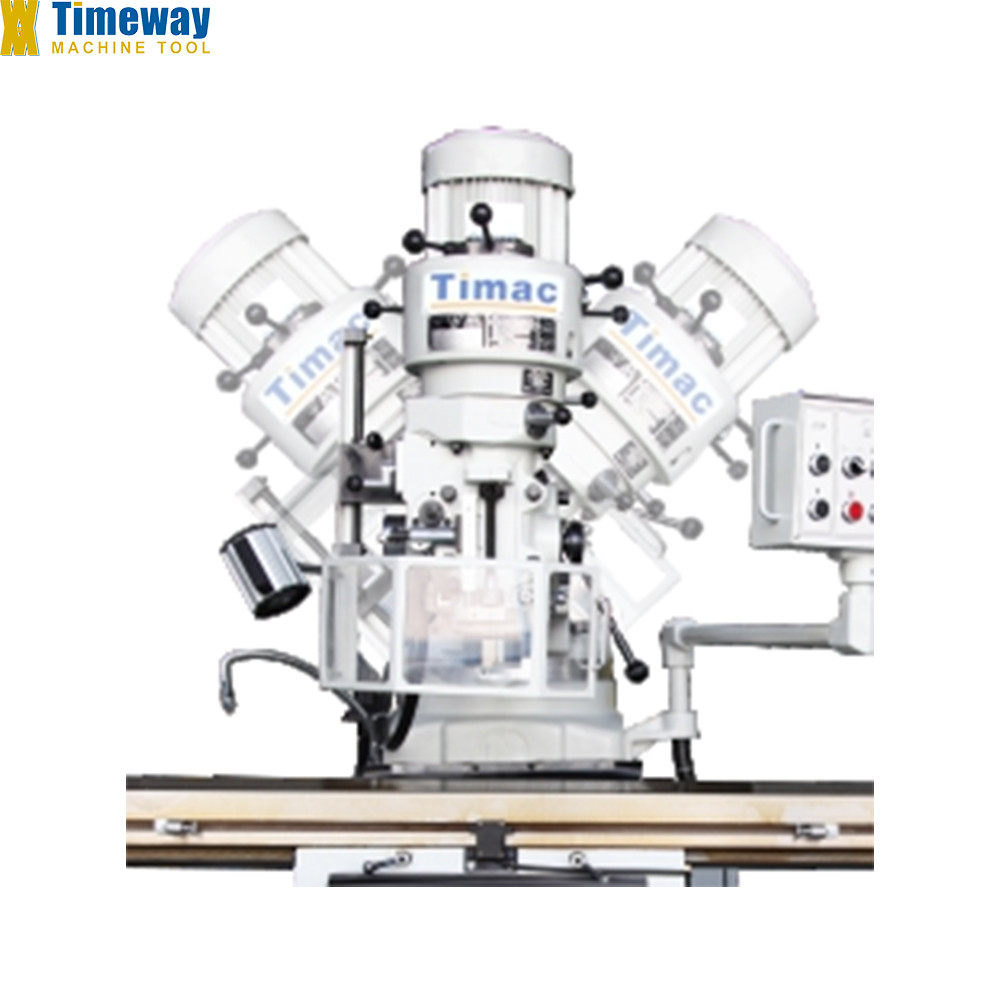

Swivelable mill head from -90° to +90° allows for various operations.
Spindle feed by hand or automatic (0.04/0.08/0.15mm/r).
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability

STANDARD CONFIGURATION:

1. 3HP/16steps milling head

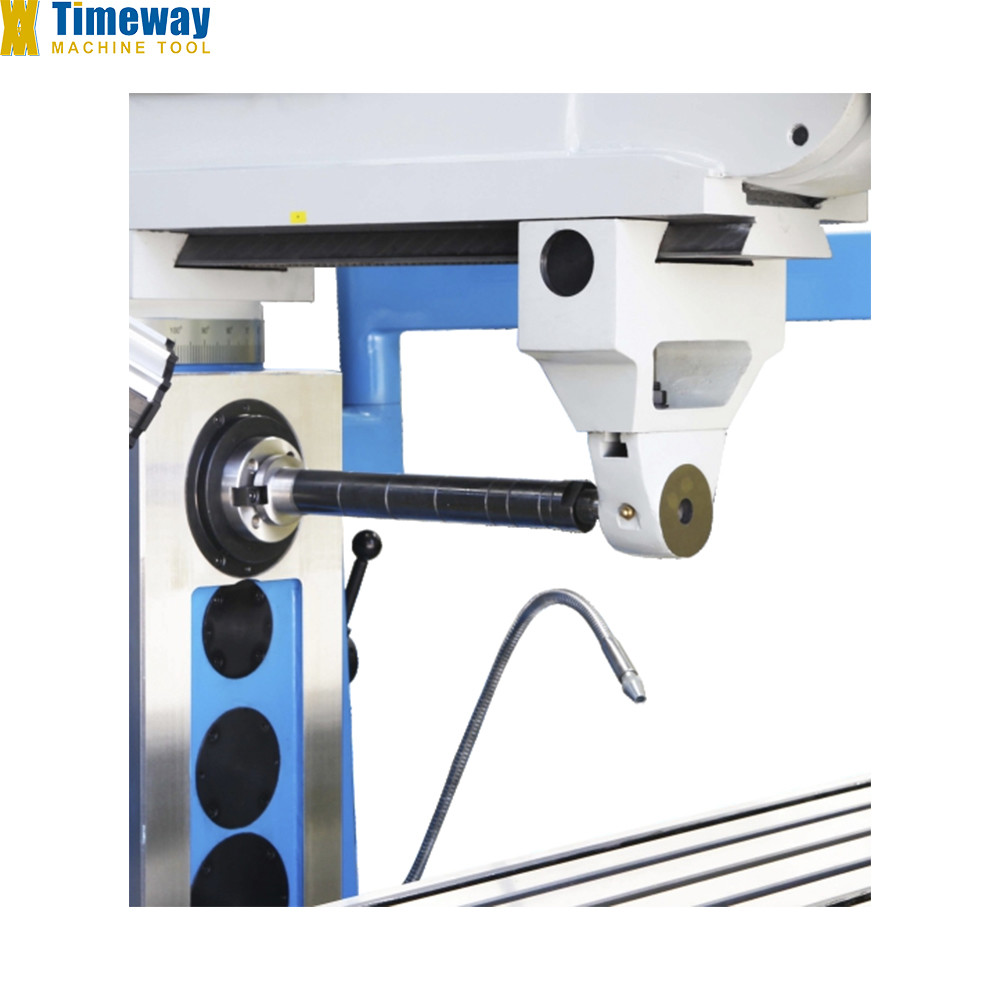

2. 5HP/12steps H spindle
3. Draw bar of V spindle & H spindle
4. Working lamp
5. Tools shank of H spindle
6. Cooling pump
7. Handle lubricant pump
8. Z-axis elevating motor(only for TM300,TM300A)
9. Operating tools and tool box
10. Operation manual

OPTIONS & EXTRA COST:

1. 5HP/16steps milling head
2. Variable speed milling head
3. Rotating table (±35º) (TM250A, TM300A)
4. X/Y/Z-axis DRO
5. Alloy luxury hung up control panel

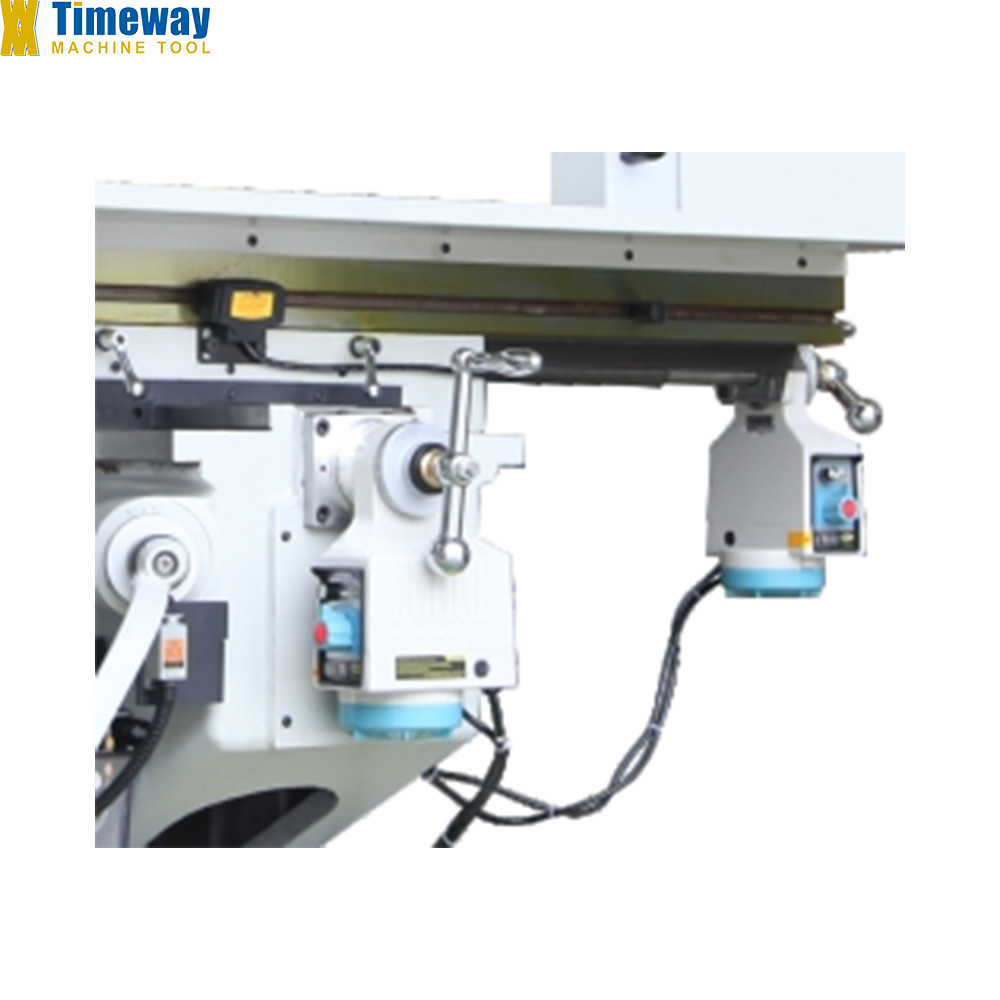

6. X-axis power feed
7. Y-axis power feed
8. X-axis gearbox power feed
9. Y-axis gearbox power feed
10. X/Y-axis ball-screw
11. Z-axis elevating motor (only forTM250,TM250A)
12. R8 collets
13. NT40 collets
14. 6” machine vise
15. 52pc clamping kits
16. Air draw bar
17. Electric oil pump
Specification
SPECIFICATION
UNIT
TM300A
Table size
mm
305x1370/305x1500
Table longitudinal travel
mm
880/1000
Table cross travel
mm
390
Knee vertical travel
mm
460
Knee rapid feed speed
mm/min
345
Vertical spindle motor power
HP
3HP (opt.: 5HP)
Vertical spindle speed
rpm
16steps, 50HZ: 65-4500/60HZ: 80-5440 (opt.: variable speed)
Vertical spindle taper
-
R8 (opt.: ISO30/40)
Vertical spindle quill travel
mm
127
Vertical spindle quill feed rate
mm/r
0.04/0.08/0.15
Vertical spindle swivel angle
°
±90°
Vertical spindle tilting angle
°
±45°
Vertical spindle distance spindle end to table
mm
30-490
Horizontal spindle motor power
HP
5HP
Horizontal spindle speed
rpm
12steps:40/57/77/110/150/215/240/340/460/650/900/1280
Horizontal spindle taper
-
ISO40
Horizontal spindle distance spindle center to table
mm
-135-355
Horizontal spindle distance spindle center to ram
mm
185
Ram cross travel
mm
500
Ram swivel angle
°
180°
Worktable swivel angle
°
±35°
Net weight
kg
1640/1680
Packing size (LxWxH) One
mm
160x170x220
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
Factory Display：
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
