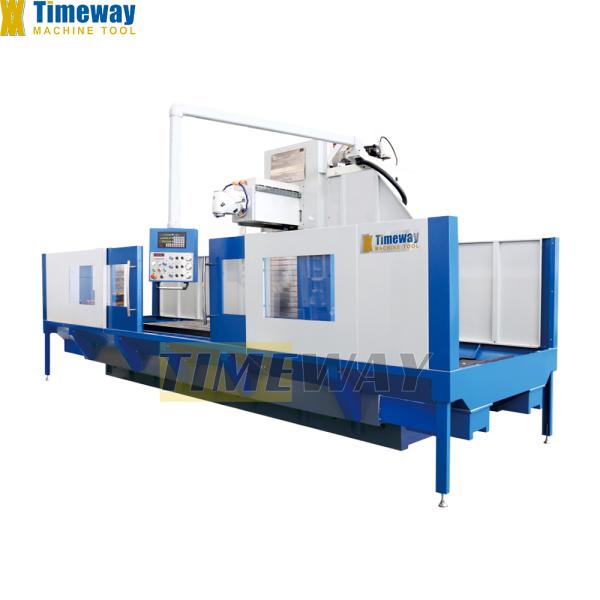

Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Specifications
Table Travel (X) (mm) :
2100
Machining Capacity :
Medium Duty
Table Travel (Y) (mm) :
1000
Table Travel (Z) (mm) :
1400
Spindle Taper :
ISO50
Range of Spindle Speed(r.p.m) :
0 - 2000 r.p.m
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
BM7110A
Type :
Universal
Spindle Motor Power(kW) :
22/26
Dimension(L*W*H) :
4200x2500x2500mm
Weight (KG) :
12000
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Hot Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Name :
Universal Milling Machine
Table size :
2100x1000mm
Longitudinal travel of X axis :
2100mm
Cross travel of Y axis :
1000mm
Vertical travel of Z axis :
1400mm
Machine Type :
Veritcal Horizontal Universal Milling Machine
Color :
Opitional
Main motor power :
22/26kw
Spindle Speed :
0-2000r/min
After-sales Service Provided :
After-sales Service
Number of Axes :
3
Condition :
New
Applicable Industries :
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Construction works , Energy & Mining
Showroom Location :
Morocco, Kenya, Chile, Romania, South Africa, Kazakhstan, Japan, Malaysia, Australia, Egypt, Italy, France, Viet Nam, Thailand
Core Components :
Motor, Gear
Price :
$28,800.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Product Description
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight

STANDARD ACCESSORIES:

- SINO DRO
- Draw bar
- Spindle guard
- CE schneider electric
- Aluminum hang arm
- Central lubrication unit
- Electronic hand-wheels on all axes
- 3-axis linear guideway
- ISO50 milling chuck set
- Milling cutter holder
- Tool-box&tools
- Operation manual

OPTIONAL ACCESSORIES:

- Pneumatic tool clamping
Specification
SPECIFICATION
UNIT
BM7110A
Table size
mm
2100x1000
T slot (No./width/distance)
mm
22x7x140
Max. load of table
kg
4000
Longitudinal travel of X axis
mm
2100
Cross travel of Y axis
mm
1000
Vertical travel of Z axis
mm
1400
Table feed-X/Y/Z
m/min
1-8000
Table rapid feed X/Y/Z
m/mni
12/12/12
Distance from spindle nose to table surface
mm
100-1500
Spindle taper
-
7:24 ISO50
Spindle speed
r/min
2000
Max torque of spindle
NM
475
Main motor power
kw
22/26
Machine dimensions (L×W×H)
mm
4200x2500x2500
Machine weight
kg
12000
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Factory Display：
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Building Material Shops Universal Head Bed Type Milling Machine BM7110A 12000KG Weight
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
