300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
Specifications
Table Travel (X) (mm) :
720 mm
Machining Capacity :
Medium Duty
Table Travel (Y) (mm) :
300
Table Travel (Z) (mm) :
400
Spindle Taper :
ISO40
Range of Spindle Speed(r.p.m) :
35 - 1500 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
XQ6030
Type :
Horizontal
Spindle Motor Power(kW) :
3 kw
Voltage :
As requested
Dimension(L*W*H) :
1720x1680x1730 mm
Weight (KG) :
1500
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Name :
Milling Machine
Model :
XQ6030
Application :
Metal Machining
Table size :
1270X300 mm
Spindle speed range :
35-1500 r/min
Table cross feed speed (Y) :
30-830 mm/min
Table vertical feed speed (Z) :
23-650 mm/min
Main motor :
3 kw
Machine weight :
1500 kg
Number of Axes :
3
Condition :
New
Applicable Industries :
Manufacturing Plant, Restaurant, Printing Shops
Showroom Location :
Kenya, Argentina, South Korea, Romania, Kyrgyzstan, Nigeria, Australia, Egypt, Philippines, Mexico, Russia
Table Travel (mm) :
720X300X400 mm
Core Components :
Gear, Other
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$30,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

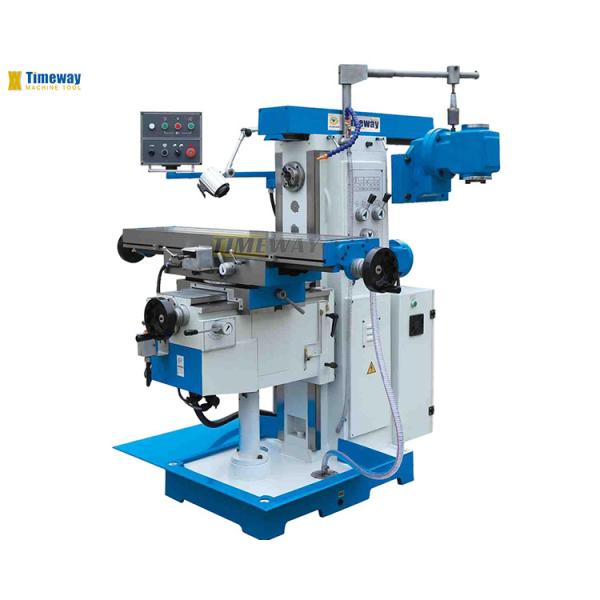

300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
*Large rectangular guide in the y- and z-axis guarantees an increase in stability.
*8 automatic table feeds and rapid feed in all axis, driven by servomotor.

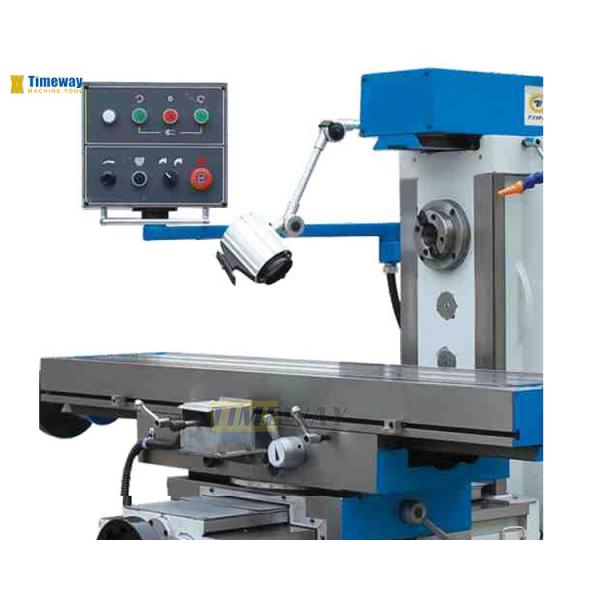

*Ergonomically mounted switches on swivelling control panel.
* Solid, grey cast iron machine construction eliminates vibrations.
* Polished gears, in oil bath, guarantees smooth running.
*Clearly arranged spindle speed control unit on machine arm.
* Digital readout for x-, y- and z-axis come optional.
*Table swivels ±45° for selection.
* Surface treated table features T-slots.
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
Specification
Unit
XQ6030
XQ6030A
Table size
mm
1270x300
1370x300
T-slots(No./width/pitch)
mm
3/14/80
3/14/80
Table travel(X/Y/Z)
mm
720/300/400
820/300/400
Distance from spindle nose to table
mm
65-465
65-465
Distance from spindle axis to ram
mm
155
155
Ram travel
mm
450
450
Spindle taper
-
7: 24 ISO40
7: 24 ISO40
Spindle speed range
r/min
35-1500
35-1500
Spindle speed steps
steps
12
12
Table longitudinal feed speed (X)
mm/min
30-830
30-830
Table cross feed speed (Y)
mm/min
30-830
30-830
Table vertical feed speed (Z)
mm/min
23-625
23-625
Feed speed steps (X/Y/Z)
steps
8 1
8 1
Table rapid feed speed(X/Y/Z)
mm/min
335/1335/1000
335/1335/1000
Main motor
kw
3 1
3 1
Servo feed motor torque
Nm
0
0
Overall dimensions(Lx WxH)
mm
1720x1680x1730
1820x1680x1730
Machine weight
kg
1500
1550
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
· Draw bar
· Horizontal mill arbor
· Coolant system
· Chip tray
· Work lamp
· Lubrication system
·Tools and Tool box
·Operator manual
· 2/3-axis digital readout
· 58pcs clamping kit
· Machine vise
· Spindle protection guard
· Table protection guard
· Dividing head
· Rotary table
· Reducing sleeve
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
Why Choose Us
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
