Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Specifications
Table Travel (X) (mm) :
900
Machining Capacity :
Medium Duty
Table Travel (Y) (mm) :
390
Table Travel (Z) (mm) :
500
Spindle Taper :
ISO40
Range of Spindle Speed(r.p.m) :
60 - 1800 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
UM1460-1
Type :
Universal
Spindle Motor Power(kW) :
4
Voltage :
380V
Dimension(L*W*H) :
2220x1660x2020
Weight (KG) :
2750
Warranty :
2350
Key Selling Points :
Easy to Operate Drilling Milling Machine
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Table size :
360x1500
Longitudinal travel (X) :
900
Cross travel (Y) :
390
Vertical travel (Z) :
500
T-slots :
3/18/70
Worktable swivel angle :
±360°
Distance from spindle center to table :
220-720
Horizontal Spindle taper :
ISO40
Spindle speed (steps) :
60-1800(12)
Machine weight :
2350
Number of Axes :
3
Condition :
New
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
Showroom Location :
Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Gearbox
Table Travel (mm) :
360x1500
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$35,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

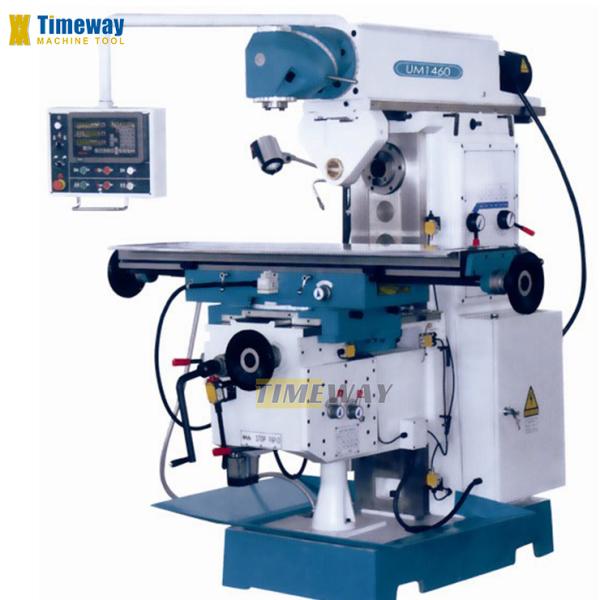

Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo

Features:

---The mill machine is a solidly constructed universal milling machine featuring a moveable arm and big clamping area.
---The big dimensioned guideways in all axis guarantees absolute precision and stability.
---Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing.
---Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
---The milling table features a large setup area, long X-axis travel, and it can be horizontally swiveled up to 45°.
---Quiet and precision-made headstock gears with hardened and ground gears.
---The universal cutter head swivels on 2 planes, allowing virtually any spatial angle setting.
---Vertical and horizontal spindles each have a separate drive with gearbox for maximum machining power.
---Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle.
---Minimum downtime due to rapid positioning of work table and rapid feeds in all axes.
---Swiveling control panel with integrated position indicator for maximum operator comfort.
---Coolant system and chip tray are included.
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
SPECIFICATIONS
UNIT
UM1460-1
Table size
mm
360x1500
Longitudinal travel (X)
mm
900
Cross travel (Y)
mm
390
Vertical travel (Z)
mm
500
Ram travel
mm
460
T-slots
mm
3/18/70
Loading capacity
kg
500
Distance from vertical spindle center to column
mm
220-720
Distance from vertical spindle nose to table
mm
170-670
Distance from horizontal spindle center to table
mm
30-510
Distance from horizontal soindle center to ram
mm
150
X-axis feed speed
mm/min
30-600(8)
Y-axis feed speed
mm/min
22-410(8)
Z-axis feed speed
mm/min
15-220(8)
X-axis rapid feed speed
mm/min
1800
Y-axis rapid feed speed
mm/min
1200
Z-axis rapid feed speed
mm/min
600
Vertical spindle taper
ISO40
Vertical spindle speed (steps)
rpm
60-1800（12)
Horizontal spindle taper
ISO50
Horizontal spindle speed (steps)
rpm
40-1300(12)
Table swivel angld
士45°
Mill head swivel angle
360°
Main motor power
kw
4(V);3(H)
X/Y-axis feed motor power
kw
1.1
Coolant motor power
kw
0.09
Net weight
kg
2350
Machine dimensions (LxWxH)
mm
2220x1660x2020
STANDARD ACCESSORIES:
OPTIONAL ACCESSORIES:
Ÿ Draw bar
Ÿ Coolant system
Ÿ Chip tray
Ÿ Work lamp
Ÿ Lubrication system
Ÿ Tools and Tool box
Ÿ Operator manual


Ÿ 2/3-axis digital readout
Ÿ 58pcs clamping kit
Ÿ Machine vise
Ÿ Spindle protection guard
Ÿ Table protection guard
Ÿ Dividing head
Ÿ Rotary table
Ÿ Reducing sleeve
Why Choose Us
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
