Specifications
Table Travel (X) (mm) :
880
Machining Capacity :
Light Duty
Table Travel (Y) (mm) :
420
Table Travel (Z) (mm) :
500
Spindle Taper :
R8
Range of Spindle Speed(r.p.m) :
65 - 4500 r.p.m
Place of Origin :
Henan, China
Brand Name :
timeway
Model Number :
TM300
Type :
Universal
Dimension(L*W*H) :
1600*1700*2200mm
Weight (KG) :
1640
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
Metal Milling Machine
Machine Type :
Milling Machine Vertical Universal
CNC or Not :
Normal Milling Machine
Color :
Cusomer Request
After-sales Service Provided :
1 Year
Table size :
305*1370mm
Cross travel :
420mm
Spindle Speed :
65-4500/80-5440 Rpm
Model :
TM300
Package :
Wooden Box
Number of Axes :
3
Condition :
New
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Energy & Mining
Showroom Location :
Algeria, Bangladesh, Egypt, Viet Nam, Russia
Core Components :
Motor, Pump, Gear, PLC, Gearbox
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$6,800.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

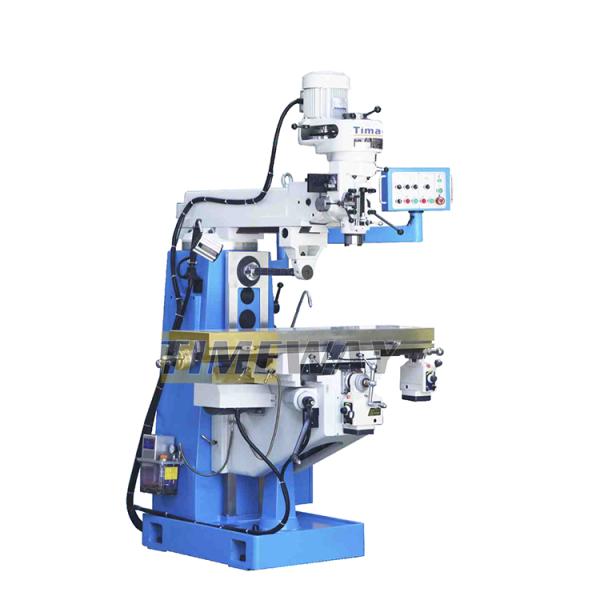

Universal Turret Milling Machine
Vertical Universal Precision Manual Milling Machine with DRO and Table Travel Y of 420mm
Specification
Specification
Unit
TM300
TM300A
Table size (WxL)
mm
305x1370/305x1500
305x1370/305x1500
Table longitudinal travel
mm
880/1000
880/1000
Table cross travel
mm
420
390
Knee vertical travel
mm
500
460
Knee rapid feed speed
mm/min
345 (optional)
345 (optional)
Motor power
HP
3HP (opt.: 5HP)
3HP (opt.: 5HP)
Speed
rpm
16steps, 50HZ: 65-4500/60HZ: 80-5440 (opt.: variable speed)
Taper
-
R8 (opt.: ISO30/40)
R8 (opt.: ISO30/40)
Quill travel
mm
127
127
Quill feed rate
mm/r
0.04/0.08/0.15
0.04/0.08/0.15
Swivel angle
°
±90°
±90°
Tilting angle
°
±45°
±45°
Distance spindle end to table
mm
0-535
30-490
Motor power
HP
5HP
5HP
Speed
rpm
12steps: 40/57/77/110/150/215/240/340/460/650/900/1280
Taper
-
ISO40
ISO40
Distance spindle center to table
mm
-50-410
-1
35-355
Distance spindle center to ram
mm
185
185
Ram cross travel
mm
500
500
Ram swivel angle
°
180°
180°
Worktable swivel angle
°
-
±35°
Net weight
kg
1640/1680
1640/1680
Packing size (LxWxH) One
mm
160x170x220
160x170x220
Packing size (LxWxH) Two
mm
170x220x220
170x220x220

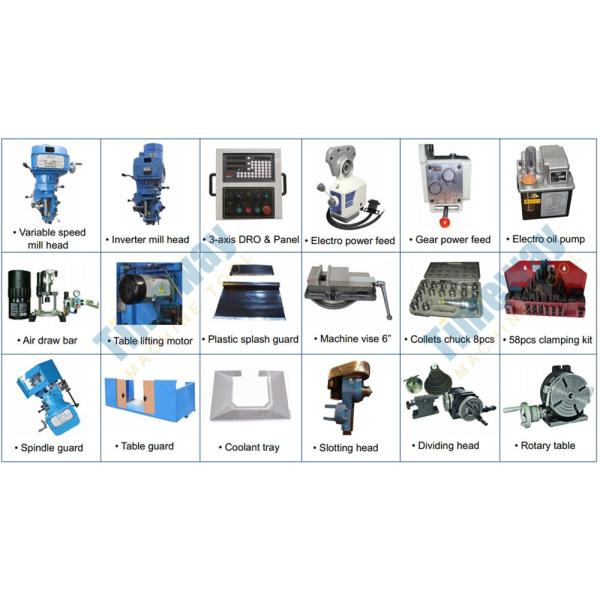

Accessories
Vertical Universal Precision Manual Milling Machine with DRO and Table Travel Y of 420mm

Standard accessories:

· 3HP/16steps milling head
· 5HP/12steps H spindle
· Draw bar of V spindle & H spindle
· Working lamp
· Tools shank of H spindle
· Cooling pump
· Handle lubricant pump
· Z-axis elevating motor(only for TM300,TM300A)
· Operating tools and tool box
· Operation manual

Optional accessories:

· 5HP/16steps milling head
· Variable speed milling head
· Rotating table (±35º) (TM250A, TM300A)
· X/Y/Z-axis DRO
· Alloy luxury hung up control panel
· X/Y-axis power feed
· X/Y-axis gearbox power feed
· X/Y-axis ball-screw
· Z-axis elevating motor (only for TM250,TM250A)
· R8 collets
· NT40 collets
· 6” machine vise
· 52pc clamping kits
· Air draw bar
· Electric oil pump
Client feedback
Vertical Universal Precision Manual Milling Machine with DRO and Table Travel Y of 420mm

This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Vertical Universal Precision Manual Milling Machine with DRO and Table Travel Y of 420mm
Factory Display：
Vertical Universal Precision Manual Milling Machine with DRO and Table Travel Y of 420mm
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Vertical Universal Precision Manual Milling Machine with DRO and Table Travel Y of 420mm
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Vertical Universal Precision Manual Milling Machine with DRO and Table Travel Y of 420mm
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Vertical Universal Precision Manual Milling Machine with DRO and Table Travel Y of 420mm
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
