Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Specifications
Table Travel (X) (mm) :
2000
Machining Capacity :
Heavy Duty
Table Travel (Y) (mm) :
1250
Table Travel (Z) (mm) :
2000
Spindle Taper :
ISO50
Range of Spindle Speed(r.p.m) :
82 - 505 r.p.m
Place of Origin :
Henan, China
Brand Name :
timeway
Model Number :
GM1250
Type :
Gantry
Spindle Motor Power(kW) :
7.5
Dimension(L*W*H) :
5000*3550*2950mm
Weight (KG) :
10000
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
Gantry type milling machine
Machine Type :
Manual Milling Machine
CNC or Not :
Normal Milling Machine
Model :
GM1250
Color :
Cusomer Request
Table size :
2000*1250mm
Spindle Speed :
82-505rpm
Main motor power :
7.5kw
After-sales Service Provided :
1 year
Cross travel :
1250mm
Number of Axes :
3
Condition :
New
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Showroom Location :
Uzbekistan, Viet Nam, Saudi Arabia, Pakistan, Russia
Core Components :
Bearing, Motor, Pump, Gear, Engine, Gearbox
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$82,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

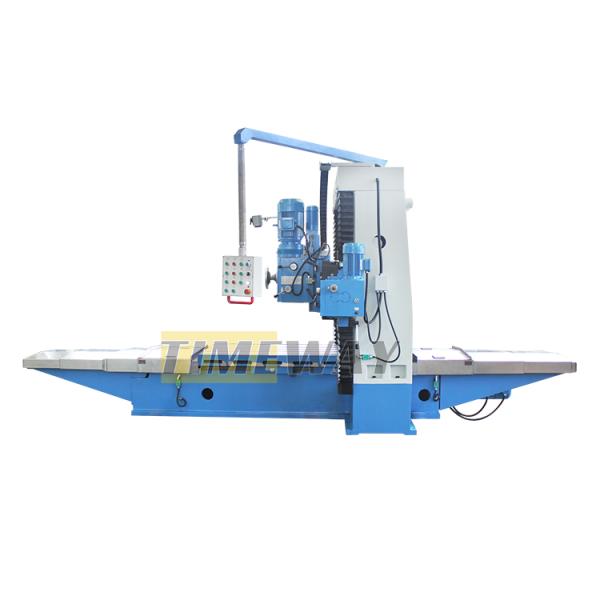

Gantry Type Milling Machine
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Features:
1. Bed, columns and travel tracks form a solid cast-iron frame structure for high rigidity under hard machining conditions and high table loads.
2. The gantry construction is fully integrated into the machine frame for maximum rigidity.
3.The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized.
4. Rigid guides with ground surfaces support the table across the entire travel distance to ensure constant high geometric accuracy.
5. Infinitely variable feed on X.
6. Main spindle gears with 6 steps for vertical and horizontal operation.
7. Including weight balancing system for easy movement and precise positioning of the horizontal spindle head.
8. All guideways are protected by telescoping covers or bellows.
9. The control panel is mounted on a long arm, giving the user maximum positioning flexibility.
10. Automatic central lubrication is included.
Specification
Specification
Unit
GM1250
Table size (length)
mm
2000/3000/4000
Table size (width)
mm
1250
Longitudinal travel
mm
2000/3000/4000
Max. width of workpiece
mm
1400
Max. height of workpiece
mm
1000/1200
Distance between columns
mm
1600
Table feed speed
mm/min
25-450
Table rapid feed speed
mm/min
1300
Mill head swivel angle
°
±35°
Vertical mill head feed speed
mm/min
65/320/890
Side mill head feed speed
mm/min
50/265/730
Table feed motor power
kw
5.5/7.5/7.5
Machine width
mm
3550
Machine height
mm
2950/3150
Accessories

Standard accessories:

· Milling arbor
· Draw bar
· Work lamp
· Oil gun
· Tools & tool-box
· Leveling bolts & wedges
· Operation manual

Optional accessories:

*2/3 axis digital readout
* Milling chuck
* ISO50 Rotary table
* Tilting rotary table
* Dividing head
Client feedback
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center

This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Factory Display：
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
