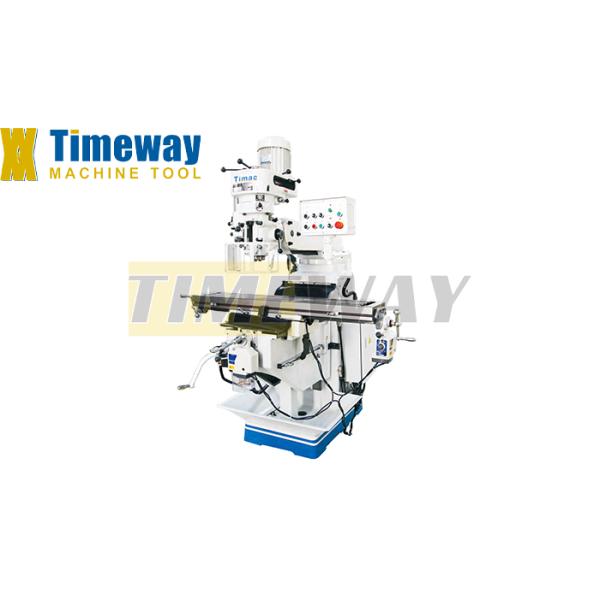

Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Specifications
Type :
Universal
Range of Spindle Speed(r.p.m) :
65 - 4500
Number of Axes :
3
No. of Spindles :
Single
Machining Capacity :
Medium Duty
Spindle Taper :
R8 (Optional : ISO30/ISO40)
Table Travel (X) (mm) :
920/1000
Table Travel (Y) (mm) :
400
Table Travel (Z) (mm) :
400
Positioning Accuracy (mm) :
±0.005
Repeatability (X/Y/Z) (mm) :
±0.003
Place of Origin :
Henan, China
Brand Name :
Timeway
Model Number :
M320
Voltage :
220V/380V
Key Selling Points :
Multifunctional
Weight (KG) :
1400
Warranty :
1 Year
Max. Table Load(kg) :
550 kg
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
Product name :
Milling Machine
Machine Type :
Table Moving
After-sales Service Provided :
Service Machinery Overseas
Name :
Vertical Metal Machine
Keyword :
China Milling Machine
Application :
Metal Machining
Function :
Machining Metal
Precision :
High Precision
Usage :
Processing Machine
Condition :
New
Showroom Location :
Egypt, Canada, Turkey, Italy, France, Viet Nam, Peru, Saudi Arabia, Russia, Spain, South Korea, Chile, Romania, Bangladesh, Nigeria, Uzbekistan
Year :
2023
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Advertising Company, Other
Core Components :
Bearing, Motor, Gear, Gearbox, Other
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$7,100.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
M320
Turret Milling Machine:
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Specification
Unit
M320
Table size
mm
320x1370/320x1500
Longitudinal travel (X)
mm
920/1000
Cross travel (Y)
mm
400
Vertical travel (Z)
mm
400
T-slot (No./width)
mm
3/16
Ram travel
mm
470
Distance from spindle to table
mm
0-400
Spindle taper
-
R8 (Optional : ISO30/ISO40)
Spindle quill travel
mm
127
Spindle speed
rpm
16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200)
Spindle quill automatic feed
mm/r
0.038/0.076/0.152
Main motor power
kw
2.2
Mill head swivel angle
°
±90°
Mill head tilting angle
°
±45°
X/Y/Z-axis guide type
-
▲▲▲
Dimension of package
One
mm
1520x1550x2080
Two
mm
1650x1800x2170
Three
mm
-
Gross weight (One)
kg
1400
Positive Comments From Customers
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Company Introduction
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Factory Display：
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Text Introduction：
Single Spindle M320 CNC Turret Milling Machine Sharp Tool for and Precision Machining
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
