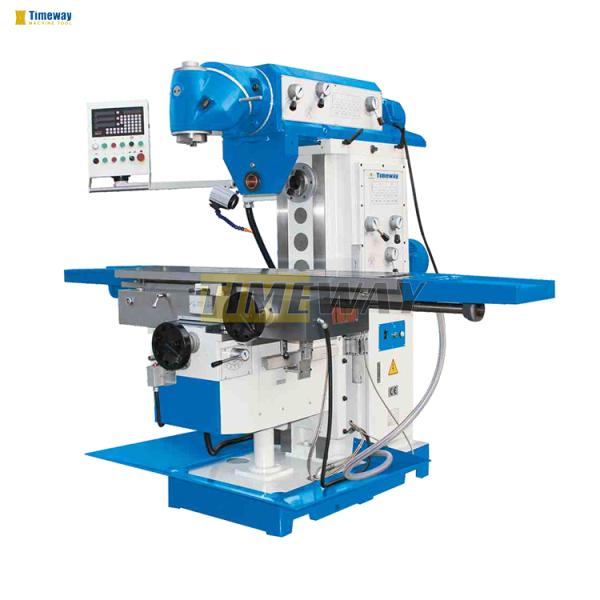

Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Specifications
Table Travel (X) (mm) :
1100
Machining Capacity :
Medium Duty
Table Travel (Y) (mm) :
320
Table Travel (Z) (mm) :
450
Spindle Taper :
ISO50
Range of Spindle Speed(r.p.m) :
60 - 1800 r.p.m
Place of Origin :
China
Brand Name :
TIMEWAY
Model Number :
Servo S36H; Servo S36HL
Type :
VERTICAL
Spindle Motor Power(kW) :
5.5
Voltage :
optional
Dimension(L*W*H) :
2245x2100x2000mm
Weight (KG) :
2750
Warranty :
1 Year
Key Selling Points :
High Productivity
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Product name :
Swivel Head Manual Knee-Type Milling Machine
Name :
universal tool milling machine
After Warranty Service :
Online support
Certification :
ISO
Table size :
360x1325mm
Color :
Customizable
X-axis travel :
1100mm
Y-axis travel :
320mm
Z-axis travel :
450mm
Spindle Speed :
60-1800rpm
Number of Axes :
3
Condition :
New
Applicable Industries :
Manufacturing Plant, Construction works
Showroom Location :
Kenya, South Korea, Chile, UAE, Ukraine, Uzbekistan, Japan, Egypt, United Kingdom, United States, Italy, Philippines, Brazil, Pakistan
Table Travel (mm) :
1020
Year :
2023
Core Components :
Motor, Other
Packaging Details :
wooden case
Port :
China port
Supply Ability :
100 Set/Sets per Month
Price :
$18,321.00/sets 1-2 sets
MOQ :
1 set
Description
Product Paramenters
Swivel Head Manual Knee-Type Milling Machine
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Specification
Unit
Servo S36H
Servo S36HL
Worktable size
mm
360x1325
360x1600
T-slot(NxWxD)
mm
3/18/80
3/18/80
Ram travel
mm
550
550
Longitudinal travel(X)
mm
1100
1300
X/Y/Z-axis rapid feed speed
mm/min
1000/800/600
1000/800/600
Feed speed range(X)
mm/min
30-750
30-750
Feed speed range(Y)
mm/min
20-500
20-500
Feed speed range(Z)
mm/min
13-375
13-375
Mill head swivel angle
°
360
360
Distance from spindle nose to table
mm
196-646
196-646
Dimensions (LxWxH)
mm
2245x2100x2000
2520x2100x2000
Machine Weight
kg
2750
2800
Positive Comments From Customers
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Company Introduction
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Video Description：
Factory Display：
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Customers Visited
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Exhibition & Training
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Export Cases
Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
FAQ
Q: Why choose TIMEWAY MACHINE? A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
