Specifications
Table Travel (X) (mm) :
1200
Machining Capacity :
Heavy Duty
Table Travel (Y) (mm) :
700
Table Travel (Z) (mm) :
500
Spindle Taper :
ISO50
Range of Spindle Speed(r.p.m) :
30 - 2050 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
RUM500
Type :
VERTICAL
Spindle Motor Power(kW) :
7.5
Voltage :
As client's request
Dimension(L*W*H) :
2625*2460*2080mm
Weight (KG) :
5000
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
After-sales Service Provided :
Online support
Power :
7.5kw
Weight :
5000kg
Certification :
CE, ISO9001:2008
X-axis travel :
1200mm
Y-axis travel :
700mm
Z travel :
500mm
Warranty period :
1year
Product name :
Ram type Milling Machine
Number of Axes :
2
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Construction works , Energy & Mining, Advertising Company
Showroom Location :
Chile, Algeria, Uzbekistan, Germany, Pakistan, Mexico, Russia
Core Components :
Bearing, Motor, Pump, Gear, Engine
Table Travel (mm) :
1200x700x500
Packaging Details :
Wood case (fumigated)
Port :
Qingdao Port
Supply Ability :
60 Set/Sets per Month
Price :
$28,000.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

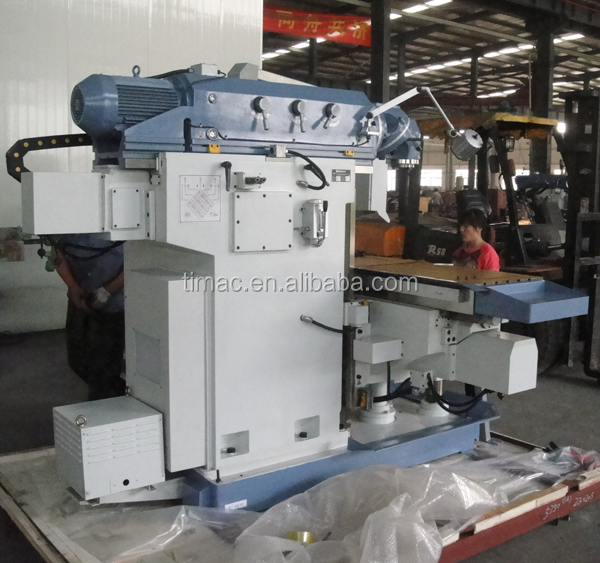

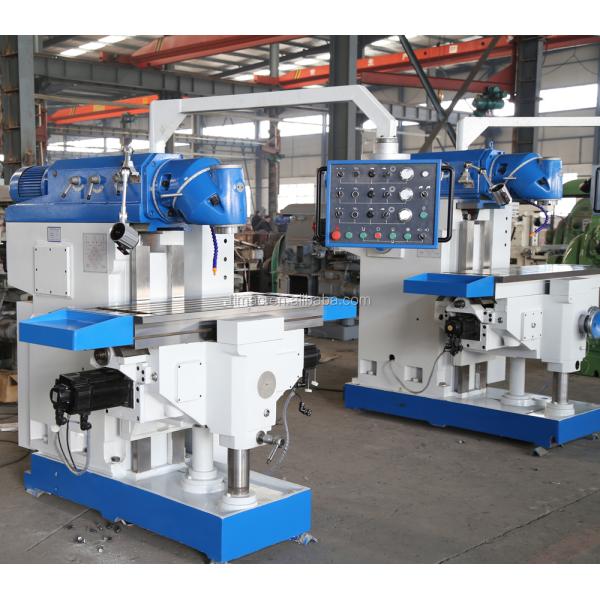

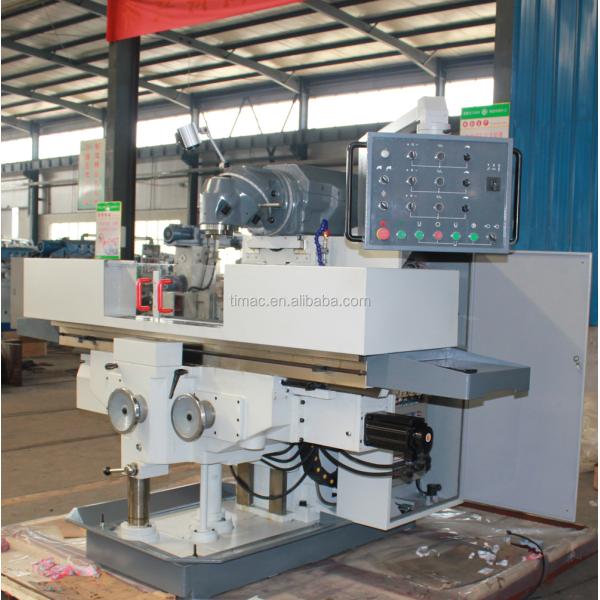

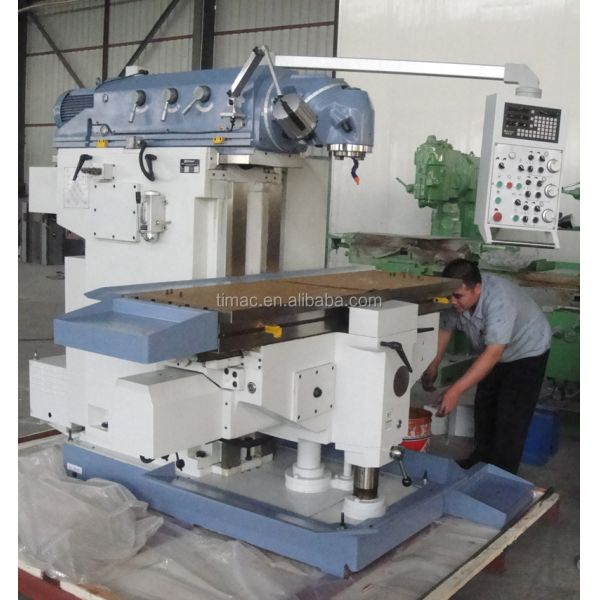

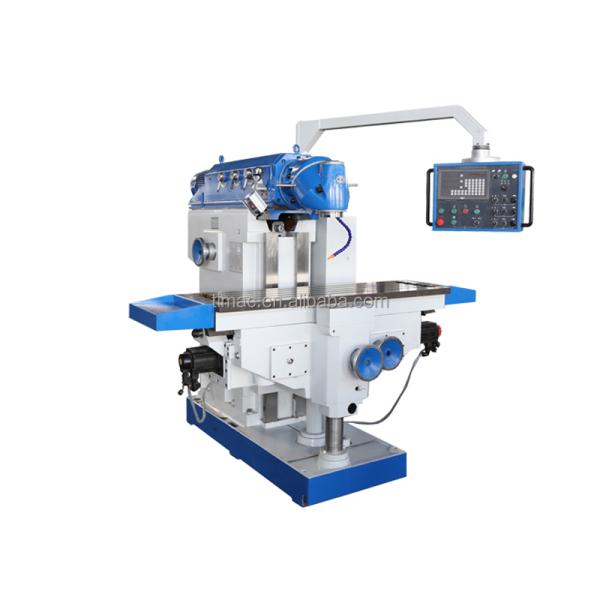

Ram type Milling Machine RUM500

High Precision 2 Axis Ram Type Milling Machine RUM500 with 1200mm X-axis Travel

Key Feature:

• Extra large work table and wide 3-axis travel ranges;

• Stepless variable feed settings & rapid feed driven by Powerful servo motors on each axes;

• Ball screw in all axis providing smooth and accurate Operation;

• Universal head can swivel to any position within 360°;

• Dovetail guideway in X-axis, rectangular in Y & Z-axis.

Technical Specification:

Model

RUM460

RUM500

Table size (W×L)

460×1235mm

500×1600mm

Table travel (X/Y/Z)

900×650×450mm

1200×700×500mm

Table t-slots(No./Width/Pitch)

5-18-80mm

5-18-80mm

Max. loading of worktable

800kg

1800kg

Spindle taper

ISO40

ISO50

Spindle speed range

30-2050r.p.m (27steps)

30-2050r.p.m (27steps)

Swivel angle of milling head

360°

360°

Table longitudinal & cross feed (X/Y)

10-1000mm/min

10-1000mm/min

Table vertical feed (Z)

6-640mm/min

5-500mm/min

Table rapid speed (X/Y/Z)

2200/2200/1100mm/min

2200/2200/1100mm/min

Distance spindle - table surface

32-482mm

50-550mm

Distance spindle - column

47-697mm

28-728mm

Main motor power

5.5kw

7.5kw

Feed motor

AC servo motor X/Y:15NM; Z: 18NM

Overall dimensions (L×W×H)

1835×2362×2090mm

2625×2460×2080mm

Machine weight

4000kg

5000kg

Price (FOB China)

Standard Configuration:

Universal swivel head, Electronic hand wheel, Central lubrication, LED Work lamp, Cooling system, Draw bar

Operating tools, Operator manual

Options & Extra Cost:

3-axis SINO D.R.O, 58pcs clamping kit, Machine vise, Dividing head, Rotary table

High Precision 2 Axis Ram Type Milling Machine RUM500 with 1200mm X-axis Travel High Precision 2 Axis Ram Type Milling Machine RUM500 with 1200mm X-axis Travel

High Precision 2 Axis Ram Type Milling Machine RUM500 with 1200mm X-axis Travel High Precision 2 Axis Ram Type Milling Machine RUM500 with 1200mm X-axis Travel

Packaging & Shipping

High Precision 2 Axis Ram Type Milling Machine RUM500 with 1200mm X-axis Travel

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size: 1.9 x 2.4 x 2.1M N.W./G.W.: 4000/4250kg

Container loaded: 2 sets / 20'GP
