Specifications
Table Travel (X) (mm) :
600
Machining Capacity :
Heavy Duty
Table Travel (Y) (mm) :
300
Table Travel (Z) (mm) :
280
Spindle Taper :
ISO40
Range of Spindle Speed(r.p.m) :
80 - 5440
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
TM500
Type :
VERTICAL
Spindle Motor Power(kW) :
2.2
Voltage :
As client's request
Dimension(L*W*H) :
1700*1500*2150mm
Weight (KG) :
1600
Warranty :
1 Year
Key Selling Points :
High-accuracy
After Warranty Service :
Online support
Local Service Location :
Romania, South Africa, Brazil, Indonesia, Russia
CNC or Not :
Normal
After-sales Service Provided :
Online support
milling machine :
machine tools
Power(kw) :
2.2(V), 2.2(H)
Weight(kg) :
1600
Certification :
CE, ISO9001:2008
Showroom Location :
Romania, South Africa, Brazil, Indonesia, Russia
Number of Axes :
3
Condition :
New
Applicable Industries :
Manufacturing Plant
Table Travel (mm) :
600X300X280
Packaging Details :
Wood case (fumigated)
Port :
Qingdao Port
Supply Ability :
140 Set/Sets per Month
Price :
$6,750.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

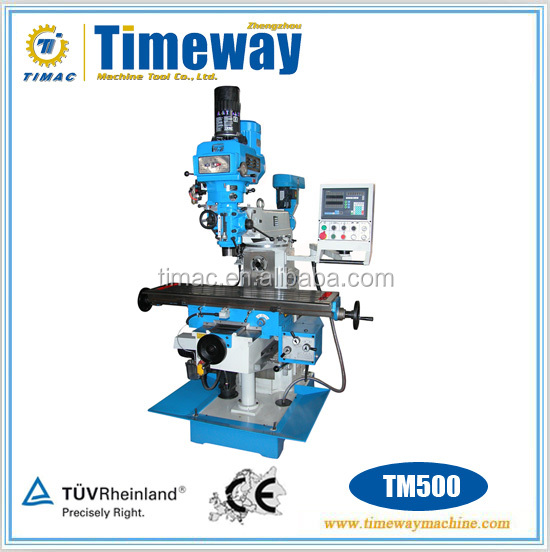

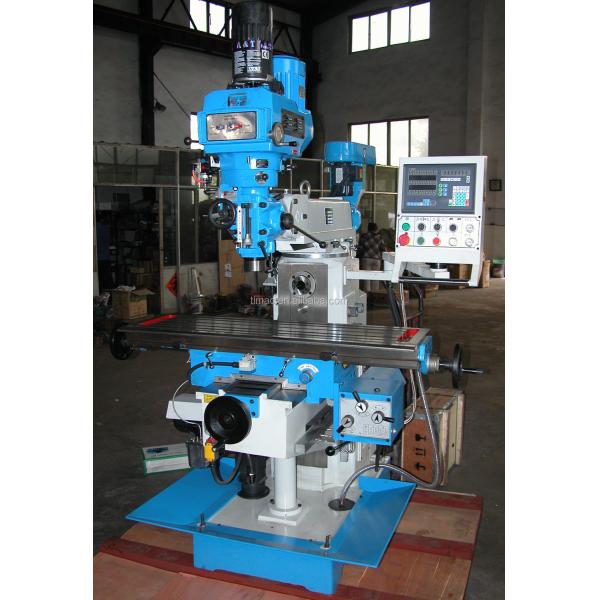

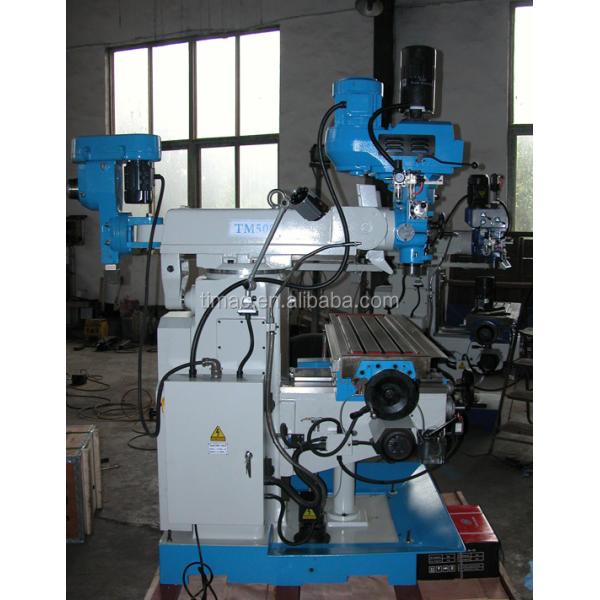

H/V Head Auto-feeding Turret Milling Machine TM500

3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage

3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage 3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage 3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage

Features :

Turret Milling Machine

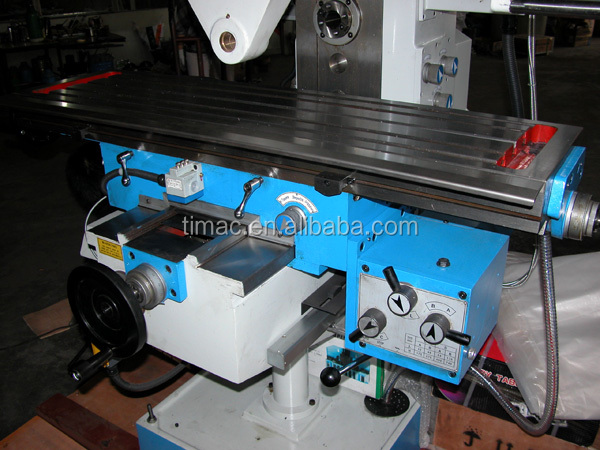

1. Hardened and ground table surface;

2. Automatic feeds on X, Y axes, motorized rise and fall of table on Z axis;

3. Spindle sleeve can tap, automatic feed with 3 speeds;

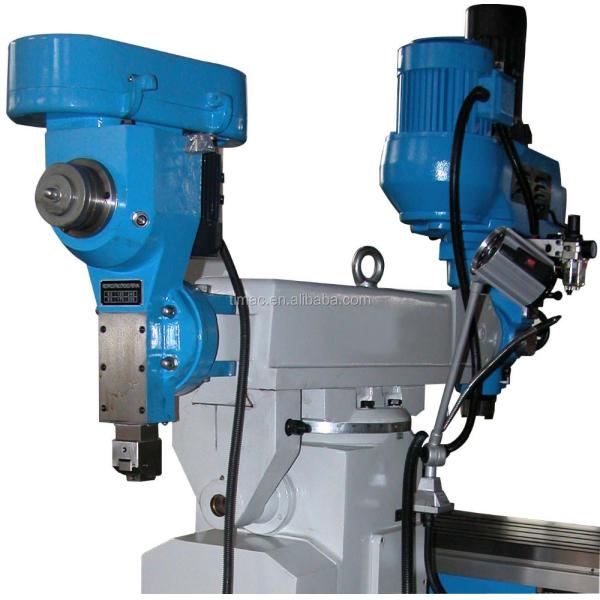

4. Headstock swivels ±90° from right to left, tilt ±45° from forth to back (TM500)

5. Drill depth stop with display of measurement;

6. Rectangular column guide way with high stability (TM600, TM700, TM800)

Parameter:

Model

Unit

TM500

TM600

TM700

TM800

Table size

mm

320 x 1250

320 x 1250

320 x 1250

360 x 1250

Spindle taper

ISO40(V),

ISO40(H)

ISO40(V),

ISO40(H)

ISO40(V),

ISO40(H)

ISO40(V),

ISO50(H)

Diameter of quill

mm

95

120

120

120

Distance from spindle to table

mm

9 ± 0-370

90-490

90-490

135-535

Distance from horizontal

spindle to table

mm

0-280

0-400

0-400

230

Distance from spin dle to column

mm

200-700

200-700

200-700

200-700

Spindle speed

r.p.m

(16steps)

80-5440(V),

(12steps)

40-1300(H)

(16steps)

70-7200(V),

(12steps)

40-1300(H)

(16steps)

70-7200(V),

(12steps)

40-1300(H)

(16steps)

70-7200(V),

(12steps)

60-1800(H)

Spindle travel

mm

127

145

145

145

Quill feed

mm

(3steps)0.15,0.08,0.25

(3steps)0.4,0.08,0.15

(3steps)0.4,0.08,0.15

(3steps)0.4,0.08,0.15

Max. drilling capacity of auto-feeding

mm

10

10

10

10

Head swivel(right to left)

±90°

±90°

±90°

±90°

Head tilt(fore to back)

±45°

Table travel(Longitudinal/Cross/Verical)

mm

600/300/280

600/300/400

800/300/400

1000/320/400

X,Y axes feed speed

mm/min

22-555

22-555

22-555

22-555

X,Y axes rapid feed speed

mm/min

1080

1080

1080

1080

Z axis rapid elevate speed

mm/min

590

590

590

590

Z axis rapid elevate motor power

w

750

750

750

1100

Max. weight of workpiece

kg

300

300

300

400

T slot(No./width/distance)

mm

3/14/70

3/14/70

3/14/70

3/18/80

Main motor

kw

2.2(V), 2.2(H)

3.75(V), 2.2(H)

3.75(V), 2.2(H)

5.5(V), 4(H)

X,Y axes auto-feed drive motor

w

750

750

750

750

Coolant pump power

w

40

40

40

90

Overall dimension

mm

1700x1500x2150

1700x1500x2270

1780x1500x2270

2220x1790x2360

N.W./G.W.

kg

1450/1600

1550/1650

1650/1750

2450/2650

***Standard:

5HP Taiwan made step pulley type milling head, Mill chuck&collets, draw bar, machine vise, horizontal mill arbor, coolant system, work lamp, table elevating motor, convergent panel, wrench, spanner, middle sleeve, elevating rotary handle, oil collecting plate, operation manual(English edition).

***Optional:

3-axes DRO
5HP Taiwan made variable(stepless) speed type milling head
Air power draw bar
58pcs clamping kits
Universal dividing head
Rotary table

Packaging & Shipping

3-Axis TIMEWAY H/V Mill Head Turret Milling Machine TM500 with Customizable Voltage

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:

One piece in one case: 114x122x222CM N.W./G.W.: 850/1050KGS

Two pieces in one case: 114x122x222CM N.W./G.W.: 1700/1900KGS

Container loaded: 3 sets / 20'GP
