Specifications
Table Travel (X) (mm) :
600
Machining Capacity :
Heavy Duty
Table Travel (Y) (mm) :
300
Table Travel (Z) (mm) :
280
Spindle Taper :
ISO40
Range of Spindle Speed(r.p.m) :
60 - 1500 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
MD700
Type :
Universal
Spindle Motor Power(kW) :
2.2
Voltage :
220v/380v
Dimension(L*W*H) :
1780x1500x2100mm
Weight (KG) :
1450
Warranty :
12 Months
Key Selling Points :
Competitive Price
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Color :
Blue-white
Table size :
1250x320mm
Table travel :
600/300/280mm
Vertical spindle speed :
60-1500rpm(8steps)
Horizontal spindle speed :
40-1300rpm(12steps)
Spindle taper :
ISO40(V/H)
Spindle travel :
120mm
Weight :
1450kg
Certification :
CE ISO
Power :
1.5kw (V),2.2kw (H)
Number of Axes :
2
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location :
Argentina, Romania, Turkey, United States, Germany, Brazil, Saudi Arabia, Indonesia, Russia
Core Components :
Bearing, Motor, Gear
Table Travel (mm) :
600/300/280mm
Packaging Details :
In plywood cases.
Port :
China port.
Supply Ability :
200 Set/Sets per Month
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description

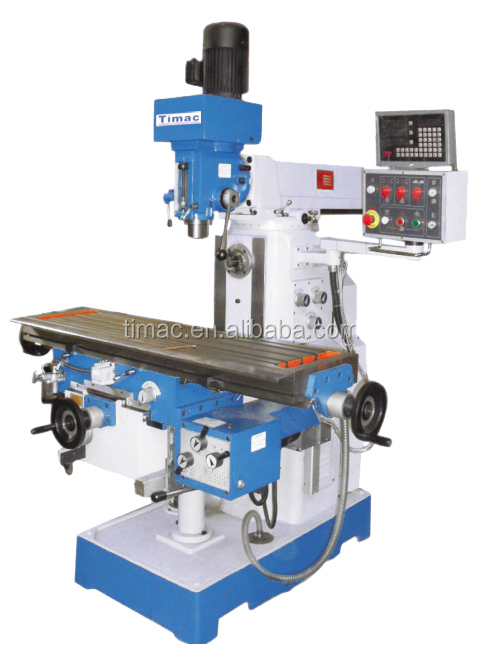

Vertical Horizontal Spindle Milling Drilling Machine

MD700

Main Outlook

600/300/280mm Table Travel Conventional Milling Drilling Machine for Versatile Drilling

Technical parameter:

Model Unit MD700
Spindle taper ISO40(V),ISO40(H)
Diameter of quill mm 100
Distance from spindle to table mm 90-370
Distance from horizontal spindle to table mm 0-280
Distance from spindle to column mm 200-700
Spindle speed r.p.m (8steps)60-1500(V),(12steps)40-1300(H)
Spindle travel mm 120
Quill feed mm (3steps)0.15,0.08,0.25
Max.drilling capacity of auto-feeding mm 12
Head swivel ±90°
Table size mm 1250×320
Table travel(Longitudinal/Cross/Vertical) mm 600/300/280
X,Y axes feed speed mm/min 22-555
X,Y axes rapid feed speed mm/min 1080
Z axis rapid elevate speed mm/min 590
Z axis rapid elevate motor power w 750
Max.weight of workpiece kg 200
T slot(No./width/distance) mm 3/14/70
Main motor kw 1.5(V),2.2(H)
X,Y axes auto-feed drive motor w 750
Coolant pump power w 40
Overall dimension mm 1780×1500×2100
N.W./G.W. kg 1450/1550

Features:

1.Hardened and ground table surface;

2.Automatic feeds on X,Y axes, motorized rise and fall of table on Z axis;

3.Headstock swivels ±90°;

4.Spindle sleeve can tap,automatic feed with 3 speeds;

5.Drill depth stop with display of measurement.

Company Information

600/300/280mm Table Travel Conventional Milling Drilling Machine for Versatile Drilling

600/300/280mm Table Travel Conventional Milling Drilling Machine for Versatile Drilling

600/300/280mm Table Travel Conventional Milling Drilling Machine for Versatile Drilling

If you have any queries please give us a

call or send us a message.

We will be happy to assist you!

Our Services

600/300/280mm Table Travel Conventional Milling Drilling Machine for Versatile Drilling

Client feedback

600/300/280mm Table Travel Conventional Milling Drilling Machine for Versatile Drilling

600/300/280mm Table Travel Conventional Milling Drilling Machine for Versatile Drilling

600/300/280mm Table Travel Conventional Milling Drilling Machine for Versatile Drilling

Packaging & Shipping

600/300/280mm Table Travel Conventional Milling Drilling Machine for Versatile Drilling

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:

One piece in one case: 114x122x222CM N.W./G.W.: 850/1050KGS

Two pieces in one case: 114x122x222CM N.W./G.W.: 1700/1900KGS

Container loaded: 3 sets / 20'GP
