1120x260mm Table Size Universal Milling Drilling Machine for Machinery Repair Shops
1120x260mm Table Size Universal Milling Drilling Machine for Machinery Repair Shops
Specifications
Condition :
New
type :
Drilling & Milling Machine
Max. Drilling Dia. (mm) :
50
Range of Spindle Speed(r.p.m) :
115 - 1750 r.p.m
CNC or Not :
Normal
Drilling Speed :
Normal Speed
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
MDW600
Voltage :
220V/380V
Dimension(L*W*H) :
1655x1450x2150mm
Weight (KG) :
1500 KG
Warranty :
1 Year
Key Selling Points :
Multifunctional
Showroom Location :
Turkey, Indonesia, Thailand, Chile, Romania, South Africa, Australia
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Other
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
Customizable
Table size :
1120x260mm
Table travel :
600/270mm
Vertical spindle speed :
115-1750rpm
Horizontal spindle speed :
38-1310rpm
Spindle taper :
ISO40
Weight :
1500kg
Certification :
CE ISO
Power :
0.85/1.5kw (V),2.2kw (H)
Packaging Details :
In plywood cases.
Port :
China port
Supply Ability :
300 Set/Sets per Month
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description

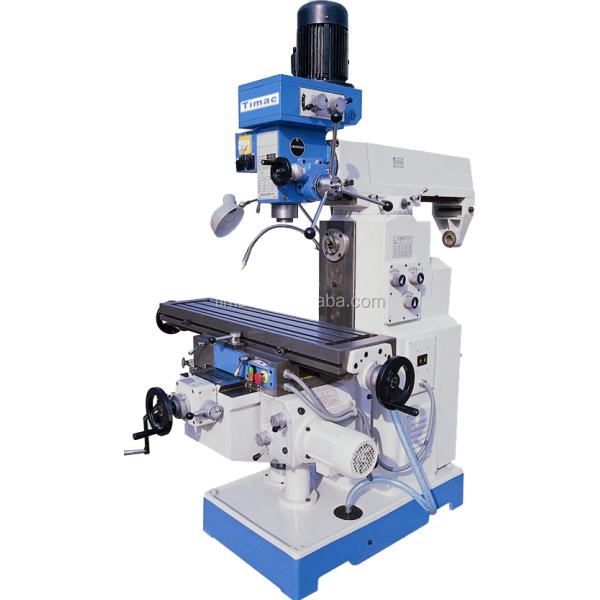

Universal Milling Drilling Machine

MDW600

Main Outlook

1120x260mm Table Size Universal Milling Drilling Machine for Machinery Repair Shops

Product Description

Features:

» Hardened and ground table surface.

» Automatic feeds on X/Y-axis, motorized rise and fall of table on the Z-axis.

» Headstock swivels ±90°, ram swivels ±180°.

» Vertical and horizontal spindles with 8-steps speed by gear changing.

» Table with swiveling ±45°is chosen, increase machining range.

» Deep scale and micro-feed hand-wheel are standard equipment.

» Coolant system and chip collection tray are included in standard equipment, but 3-axis DRO. is optional accessory.

Technical parameter:

Model Unit MDW600
Table size mm 1120×260
Table travel mm 600/270
Spindle taper ISO40
Spindle speed range r.p.m 115-1750(V),38-1310(H)
Max.drilling capacity mm 50
Automatical drilling dia. mm -
Max.end milling dia. mm 100
Max.vertical milling dia. mm 25
Max.tapping dia. M16
Distance from spindle nose to table mm 100-460
Spindle travel mm 120
Main motor kw 0.85/1.5(V),2.2(H)
Overall dimension(L×W×H) mm 1655×1450×2150
Net weight kg 1500

Standard:
Coolant system, Oil collecting plate, Work lamp, Elevating rotary handle, Drill chuck, Mill collets, Draw bar, Machine vise, Wrench, Spanner, Middle sleeve, Operation manual(English edition).

Optional:
3 axes DRO, 58pcs clamping kits,Rotary table, Dividing head, Variable frequency motor, Universal milling head.
