7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance
7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance
7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance
7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance
7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance
7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance
7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance
7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance
Specifications
Table Travel (X) (mm) :
1500
Machining Capacity :
Heavy Duty
Table Travel (Y) (mm) :
670
Table Travel (Z) (mm) :
670
Spindle Taper :
ISO50
Range of Spindle Speed(r.p.m) :
40 - 1600 r.p.m
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
BM715
Type :
VERTICAL
Spindle Motor Power(kW) :
7.5
Voltage :
380V 50Hz
Dimension(L*W*H) :
3300x2380x2750 mm
Weight (KG) :
7300
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Table size :
2100x500mm
Max. weight of workpiece :
2000kg
Longitudinal travel (X-axis) :
1500mm
Spindle taper :
ISO50 7:24
Weight :
7300kg
Power :
7.5kw
Cross travel (Y-axis) :
670mm
Vertical travel (Z-axis) :
670mm
Number of Axes :
3
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Advertising Company
Showroom Location :
Romania, South Africa, Uzbekistan, Malaysia, Australia, Canada, Indonesia, Thailand
Core Components :
Bearing, Motor, Other
Table Travel (mm) :
1500c670c670
Year :
2022
Packaging Details :
In plywood cases.
Port :
China Port.
Supply Ability :
150 Set/Sets per Month
Price :
$30,000.00/sets 1-1 sets
MOQ :
1 set
Description

Heavy Duty Universal Head Bed-type Milling Machine

BM715

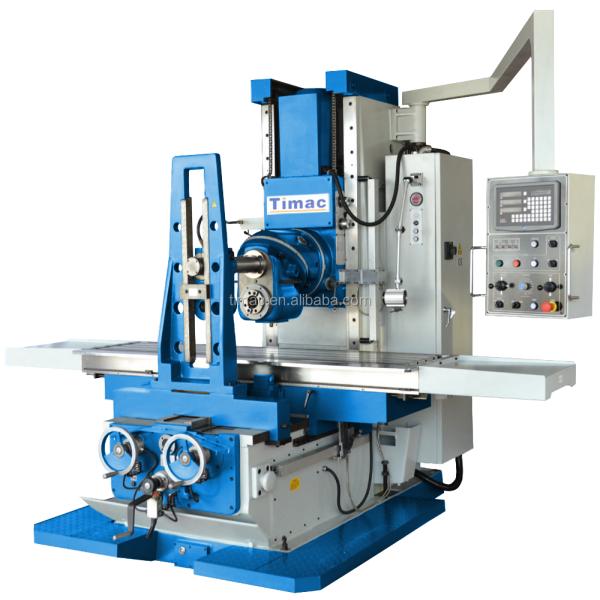

Main Outlook

7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance

Product Description

Features:

  • Servo feed motors on X, Y, Z-axis ensures response,accuracy and consistent feed.
  • Micro switch on the manual knee handle for additional operator safety.
  • Tool box and operations manual.
  • Ball screw X, Y-axis providing smooth and accurate operation.
  • Coolant system and halogen light included.
  • Square construction slides for X, Z-axis to maximize rigidity.
  • Clutch hand wheels X, Y-axis.
  • Automatic oil lubrication pump and reservoir.

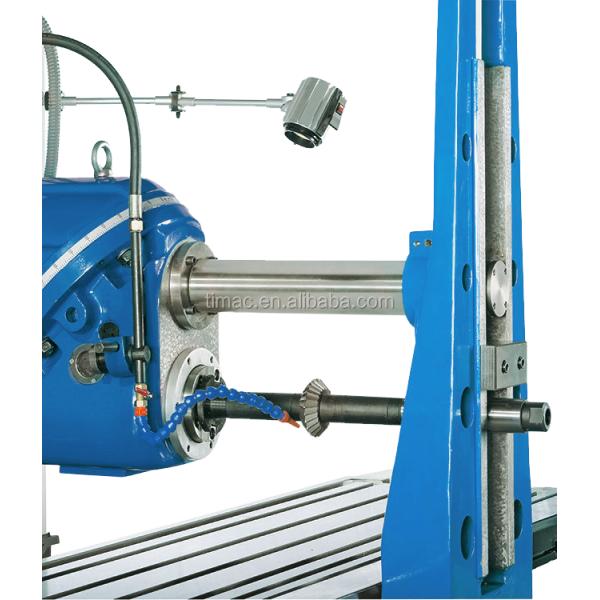

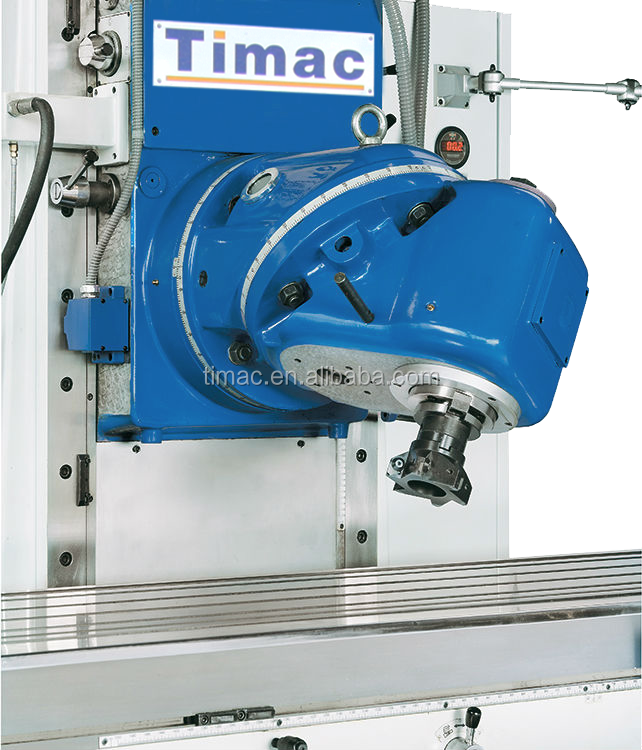

  • Universal head swivels to horizontal position.

7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance 7300KG Weight Bed-type Vertical Milling Machine for Heavy Duty Machining Performance

Introduction for main structure:

  • Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.
  • An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
  • Extra wide guideways ensure maximum stability and precision at high loads.
  • Extra long table travel distance(1500mm) and large table setup area (2100x500mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
  • Wide spindle speed range from 40 to 1600 rpm.
  • Infinitely variable linear and cross feed.
  • Control panel on a long extending arm that can be ideally positioned by the operator.

Technical Parameter:

Specification

BM715

Table

Table size

2100x500 mm

T slot number/width/distance

4-20-100 mm

Max. load of Table

2000 kg

Machining range

Longitudinal travel (X-axis)

1500 mm

Cross travel (Y-axis)

670 mm

Vertical travel (Z-axis)

670 mm

Main spindle

Spindle taper

ISO50 7:24

Spindle speed step

12steps, 40-1600rpm(60HZ)

12steps, 35-1345rpm(50HZ)

Distance from spindle axis to column surface

610 mm

Distance from spindle nose to table surface

0-670 mm

Feeds

Longitudinal/cross feed

20-1800 mm/min (variable)

Vertical feed

10-900 mm/min (variable)

Longitudinal/cross rapid speed

3500 mm/min

Rapid Traverse vertical

1750 mm/min

Motor power

Main motor

7.5 kw

Feed motor

2 kw

Elevating motor for headstock

2 kw

Coolant motor

550 w

Others

Package dimension

2280x2280x2820 mm

Overall dimension

3300x2380x2750 mm

N.W/G.W

7300/8000 kg

Standard Accessories:

• ISO50 Milling chuck set(8pcs); • ISO50 Milling arbor(φ40mm);

• Horizontal milling arbor(φ32mm); • Horizontal milling arbor supporting;

• Draw bar; • 7:24 Taper sleeve;

• Quartz lamp; • Tool box;

• Oil gun; • Foundation bolts;

• Inner hexagon spanner; • Double-head wrench;

• CE standard electric components; • Operation manual(English edition);

Optional Accessories:

• 3 axes DRO; • Ball rolling lead screw for X & Y axes;

• Machine vice 200mm; • Universal dividing head;

• Rotary table 500mm; • Spindle guard(eye protection);
