MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology
MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology
MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology
MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology
Specifications
Condition :
New
type :
Drilling & Milling Machine
Max. Drilling Dia. (mm) :
50
Range of Spindle Speed(r.p.m) :
40 - 1300 r.p.m
CNC or Not :
Normal
Drilling Speed :
Normal Speed
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
MD400
Voltage :
Customer's Requirement
Dimension(L*W*H) :
1660x1340x2130mm
Power (kW) :
1.5
Weight (KG) :
1350 KG
Warranty :
1 Year
Key Selling Points :
Automatic
Showroom Location :
Canada, United States, Italy, Germany, Mexico, Russia, Spain, South Africa, Australia
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Gear, Motor, Engine
After-sales Service Provided :
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Table size :
1120(1200)x280mm
Table travel :
600/260/300mm
Spindle travel :
120mm
Vertical spindle speed :
115-1750rpm(8steps)
Horizontal spindle speed :
40-1300rpm(12steps)
Spindle taper :
MT4(V),ISO40(H)
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Canada, United States, Italy, Germany, Mexico, Russia, Spain, Australia, South Africa
Certification :
CE ISO
Packaging Details :
In plywood cases.
Port :
China Port.
Supply Ability :
300 Set/Sets per Month
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description

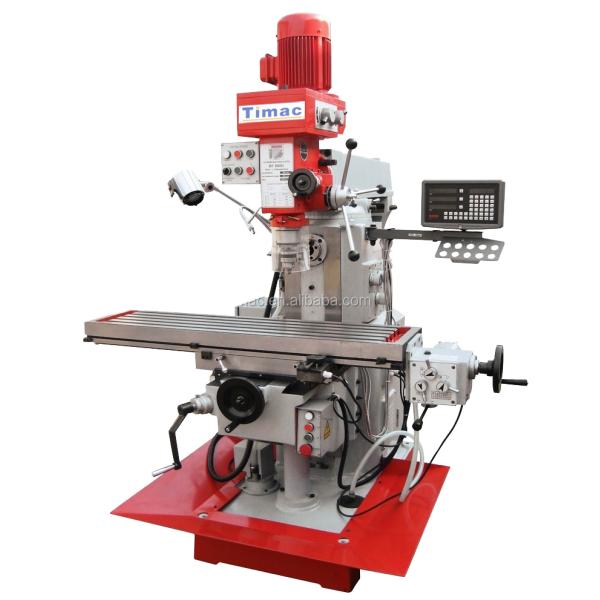

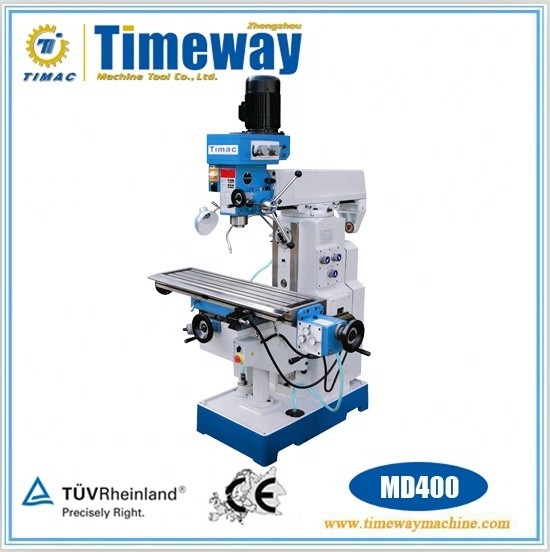

Automatic Drill Press/ Milling Machine MD400

MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology

Product Description

Features:
» Compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast-iron.
» Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
» Vertical and horizontal spindle speeds are changed by gear-box, so the feature of large torque.
» Auto. feeds on X, Y axes, motorized rise and fall of table on Z axis.
» Entire cutter head swivels ±90°, expand Machining range of machine tools.
» For horizontal machining, the top beam including the head can be rotated by ±180° on the column.
» Spindle with micro-feed function (Micro hand-wheel), to realize small size of feed and more correctly machining.
» Coolant system and work lamp and chip collection tray are included in standard equipment.

Standard:

  • Coolant system
  • Oil collecting plate
  • Work lamp
  • Elevating rotary handle
  • Drill chuck
  • Mill collets
  • Draw bar
  • Machine vise
  • Wrench
  • Spanner
  • Middle sleeve
  • Operation manual(English edition)

Optional:

  • 3 axes DRO
  • 58pcs clamping kits
  • Rotary table
  • Dividing head
  • Variable frequency motor
  • Universal milling head

Technical parameter:

Model Unit MD400
Spindle taper MT4(V),ISO40(H)
Distance from spindle to table mm 90-410
Spindle speed r.p.m (8steps)115-1750(V),(12steps)40-1300(H)
Spindle travel mm 120
Max.drilling capacity mm 50
Head swivel ±90°
Table size mm 1120(1200)×280
Table travel(Longitudinal/Cross/Verical) mm 600/260/300
T slot(No./width/distance) mm 3/14/70
Main motor kw 0.85/1.5(V),2.2(H)
Overall dimension(L×W×H) mm 1660×1340×2130
N.W./G.W. kg 1250/1350

Company Information

MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology

Team&Certification

MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology

Exhibition&Training

MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology

Package&Transport

MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology

Customer Visited

MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology

Export Cases

MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
