Vertical Knee-type Milling Machine

VMN250 VMN300 VMN320 VMN360 VMN420

Main Outlook

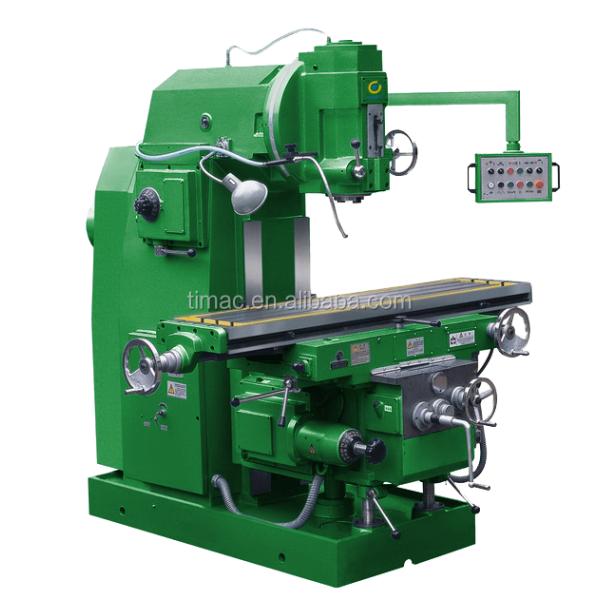

High Productivity Vertical Knee Milling Machine with 2522x2265x2432mm Dimensions

Product Description

Features:

  • The series vertical knee type milling machine is a general purpose machine with can be used in wide range.
  • Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous workpieces.
  • Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing, it is an ideal machine for machining process, maintenance, instrument, die and moulds.
  • Vertical milling head can rotate ±45°, spindle quill can move vertically (without VMN250), Worktable can realize automatic feed and rapid feed on the X/Y/Z-axis.
  • Hardened and ground guideways ensure overall accuracy and machining accuracy of the machine.
  • Adopts high power motor, wide change speed, so the machine can complete high-speed cutting by using alloy cutters.
  • Optimization whole structure design of the machine, have enough rigid and stable, can realize strong cutting for heavy duty workpieces.
  • Equipped with complete coolant and lubrication system, reduce the cost of maintenance.
  • According to customer's requirement, we can install 2/3-axis digital readout.

Technical Parameter:

Specification

Unit

VMN250

VMN300

VMN320

VMN360

VMN420

Worktable size

mm

250x1100

300x1250

320x1320

360x1600

420x1800

T slot(NxWxD)

mm

3x14x63

3x14x63

3x18x80

3x18x80

3x18x90

Max. load bearing of worktable

kg

250

250

550

550

800

Longitudinal travel (X)

mm

720

750

800/780

1020/1000

1200/1180

Cross travel (Y)

mm

265

265

300/280

300/280

360/350

Vertical travel (Z)

mm

410

410

410/400

410/400

470/450

Feed speed steps

steps

12

12

18

18

18

Feed speed range:

-Longitudinal X

mm/min

12-560

15-800

15-750

15-750

22-1100

-Cross Y

mm/min

12-560

15-800

15-750

15-750

22-1100

-Vertical Z

mm/min

5-226

6-270

5.7-280

5.7-280

8.3-410

Rapid feed range:

-Longitudinal X

mm/min

1780

2100

2250

2250

2400

-Cross Y

mm/min

1780

2100

2250

2250

2400

-Vertical Z

mm/min

720

880

844

844

900

Max.rotary angle of vertical milling head

°

±45°

±45°

±45°

±45°

±45°

Distance from spindle nose to worktable surface

mm

60-470

60-470

50-460

50-460

40-510

Distance of spindle center to vertical guide way

mm

290

290

380

380

450

Distance of worktable center to vertical guide

mm

160-430

152-417

235-535

235-535

235-535

Spindle hole taper

-

7:24 NO:40

7:24 NO:40

7:24 NO:50

7:24 NO:50

7:24 NO:50

Arbor diameter

mm

Φ27

Φ22, Φ27

Φ32, Φ40

Φ32, Φ40

Φ32, Φ50

Spindle quill travel

mm

-

70

75

75

85

Spindle speed steps

steps

12

12

18

18

18

Spindle speed range

r/mm

35-1600

35-1600

30-1500

30-1500

30-1500

Main motor power

kw

4

4

7.5

7.5

11

Feed motor power

kw

0.75

0.75

1.5

1.5

3

Machine dimension

cm

167x135x180

165x154x192

230x170x209

230x206x209

252x226x243

Package dimension

cm

154x150x213

167x158x204

222x190x232

224x208x232

247x240x272

Machine weight

kg

1800

1800

3200

3370

4700

Voltage/Frequency

V/HZ

380/50

380/50

380/50

380/50

380/50

According to customer’s requirement, we can develop on the machine guideways, worktable, and load-capacity.

Specification

Unit

VMN320L

VMN420L

Worktable size

mm

320x1600

428x2000

T slot(NxWxD)

mm

3x18x80

3x18x100

Max. load bearing of worktable

kg

550

800

Longitudinal travel (X)

mm

1020/1000

1250/1230

Cross travel (Y)

mm

300/280

420/410

Vertical travel (Z)

mm

410/400

480/470

Standard Accessories:

  • Draw bar
  • Central lubrication
  • Work lamp
  • Coolant system
  • Operating tools
  • Operator manual.

Optional Accessories:

  • Reducing sleeve
  • 2/3-axis digital readout
  • Clamping tools, assorted
  • Milling chuck
  • Machine vise
  • Rotating worktable
  • Dividing Head
