Specifications
Table Travel (X) (mm) :
150
Machining Capacity :
Heavy Duty
Table Travel (Y) (mm) :
670
Table Travel (Z) (mm) :
670
Spindle Taper :
ISO50
Range of Spindle Speed(r.p.m) :
35 - 1345 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
BM715
Type :
Universal
Spindle Motor Power(kW) :
7.5
Voltage :
As required
Dimension(L*W*H) :
3.3 x 2.38 x 2.75m
Weight (KG) :
7300
Warranty :
1 Year, 1year
Key Selling Points :
High-accuracy
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Table size :
2100x500mm
T-slots :
4/20/100mm
Max. weight of workpiece :
2000kg
X/Y/Z-axis travel :
1500/670/670mm
Spindle speed :
35-1345rpm(12steps)
Power :
7.5kw
Y-axis travel :
670mm
Z-axis travel :
670mm
Number of Axes :
2
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Other
Showroom Location :
Romania, Australia, Turkey, France, Germany, Viet Nam, Brazil, Russia, Thailand
Core Components :
Bearing, Motor, Other
Table Travel (mm) :
1500x670x670
Packaging Details :
Wood case(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$36,000.00/sets 1-2 sets
MOQ :
1 set
Description

Bed type Universal Milling Machine

BM715

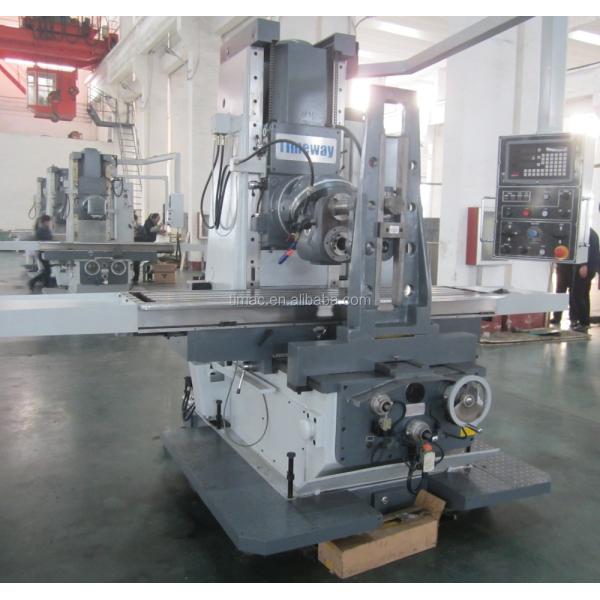

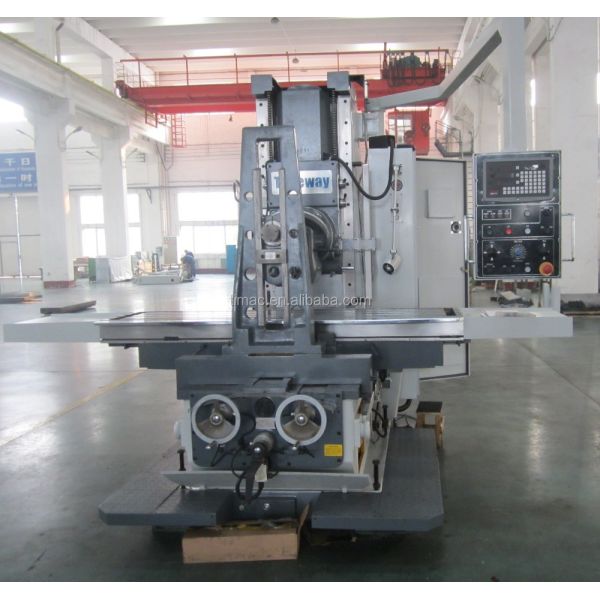

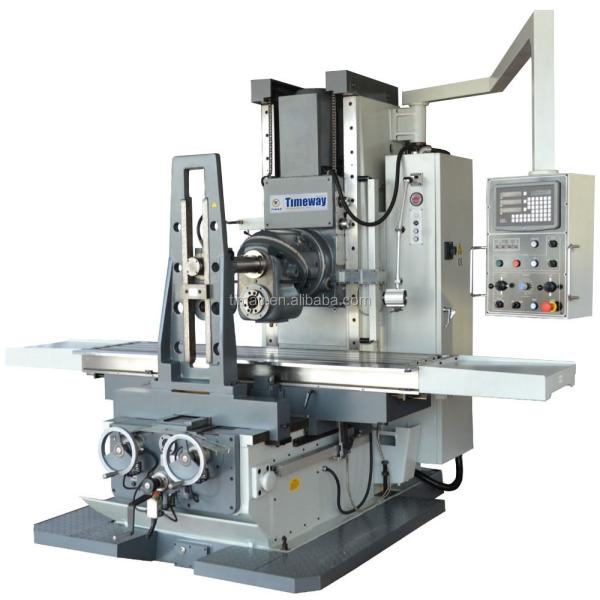

Main Outlook

BM715 Universal Bed Type Milling Machine for Medium to Large Workpiece Machining

Product Description

Features:

• Universal milling head with an ISO50 spindle taper;

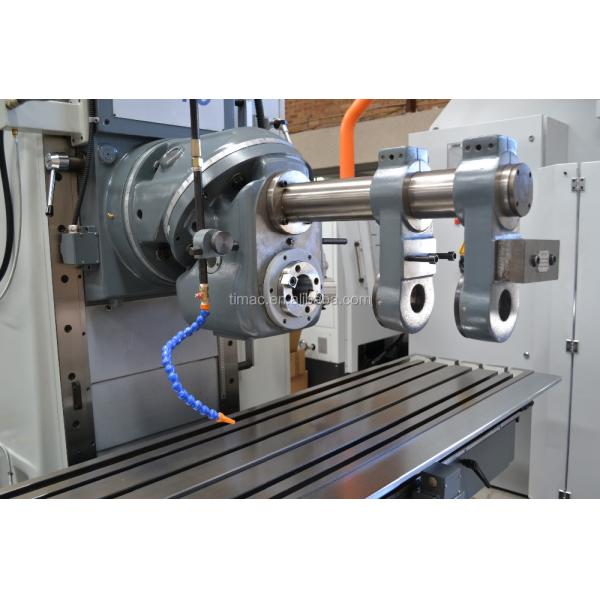

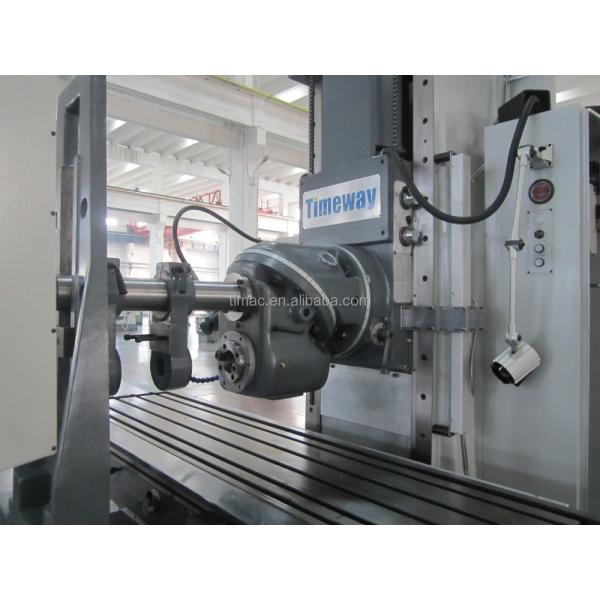

• Universal head swivels to horizontal position;

• Geared drive spindle speeds 12 steps 35-1345rpm;

• 7.5kW/10hp main spindle motor;

• Servo controlled feed motors on X, Y, Z-axis ensures response, accuracy and consistent feed;

• X, Y and Z-Axis servo controlled power-feed with rapid;

• Ball screw X, Y-axis providing smooth and accurate operation;

• Rapid feed servo controlled on X, Y, Z-Axis;

• Hardened and ground worktable & slideways;

• Square construction slides for X, Z-axis to maximize rigidity;

• Large 2100 x 500mm slotted work table;

• High grade casting for additional strength and minimal deformation;

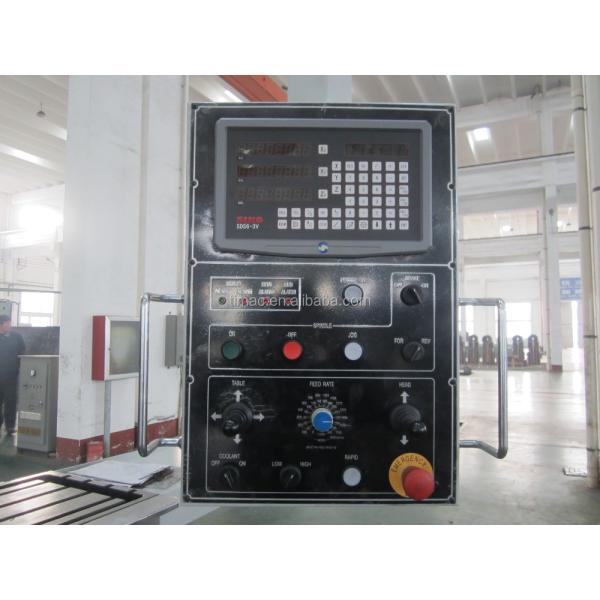

• Quality electrics & overload protection in an easy access enclosure;

• High/neutral and low gear selection lever to maximize torque;

• Micro switch on the manual knee handle for additional operator safety;

• Metric dial graduations of 0.02mm for X, Y, Z-axis;

• Table trays each end of work table;

• Clutch hand wheels X, Y-axis;

• Coolant system and halogen light included;

• Automatic oil lubrication pump and reservoir;

• Tool box and operations manual

BM715 Universal Bed Type Milling Machine for Medium to Large Workpiece Machining BM715 Universal Bed Type Milling Machine for Medium to Large Workpiece Machining

BM715 Universal Bed Type Milling Machine for Medium to Large Workpiece Machining BM715 Universal Bed Type Milling Machine for Medium to Large Workpiece Machining BM715 Universal Bed Type Milling Machine for Medium to Large Workpiece Machining

Technical Parameter:

Specification

BM715

Table Size

2100 x 500mm

Spindle Taper

ISO50

Longitudinal Travel (X-axis)

1500mm

Cross Travel (Y-axis)

670mm

Vertical Travel (Z-axis)

670mm

Type of Slides

Square (Y & Z)

Spindle to Table

670mm

Throat Depth (max.)

610mm

Type Of Table Power Feed (X , Y & Z-axis)

Servo Drive

Longitudinal & Cross Feed (X & Y-axis)

20 ~ 1800mm/min

Longitudinal & Cross Rapid (X & Y-axis)

3700mm/min

Vertical Feed (Z-axis)

10 ~ 900mm/min

Vertical Rapid (Z-axis)

1750mm/min

Table T-Slot Size

20mm

Work Table Load Capacity

2000kg

Spindle Speeds Vertical / Horizontal

12 (35-1345rpm)

Motor Power

7.5kW / 10hp

Floor Space Required

4925 x 2380mm

Overall Height

2750mm

Weight (net)

7300kg

Standard accessories:

Draw bar 1 set; ISO50 Milling chuck 1 set; ISO50Milling arbor 1 set; Horizontal milling arbor 1 piece; 7:24 Middle sleeve 1 piece; Tool box 1 piece; Oil gun 1 piece; Foundation bolts 6 sets; Inner hexagon spanner 1 piece(each); Double-end wrench 2 piece; Horizontal milling arbor supporting 1set; Instruction manual; Accuracy test list
