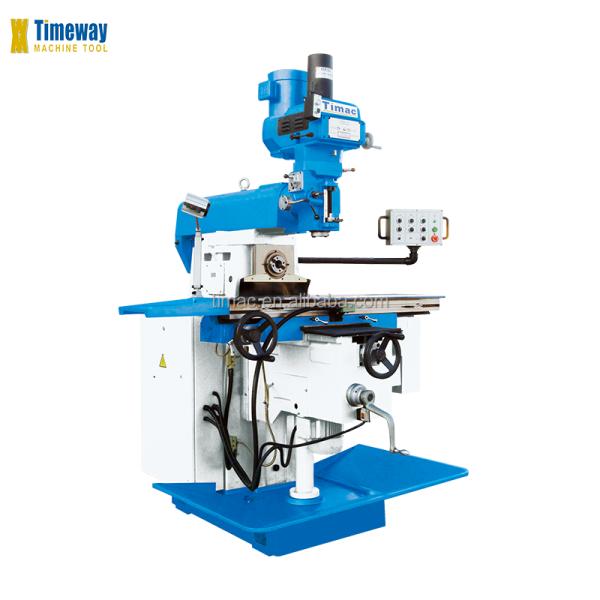

Range of Spindle Speed r.p.m 65 4500 r.p.m Vertical Turret Milling Machine M230A M230B

Specifications

Table Travel (X) (mm) :

840

Machining Capacity :

Light Duty

Table Travel (Y) (mm) :

368

Table Travel (Z) (mm) :

450

Spindle Taper :

ISO40

Range of Spindle Speed(r.p.m) :

65 - 4500 r.p.m

Place of Origin :

Henan, China

Brand Name :

TIMAC

Model Number :

M230A M230B

Type :

VERTICAL

Spindle Motor Power(kW) :

3.75

Voltage :

280/380V

Dimension(L*W*H) :

1800x2016x2180

Weight (KG) :

2300

Warranty :

1 Year

Key Selling Points :

Multifunctional

Marketing Type :

New Product 2020

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Warranty of core components :

1 Year

CNC or Not :

normal

Vertical Milling Machine :

Vertical Turret Milling Machine

After-sales Service Provided :

Online support

After Warranty Service :

Video technical support

Longitudinal travel :

840mm

Cross travel :

360mm

Vertical travel :

450mm

Machine Type :

Veritcal

Number of Axes :

Condition :

New

Applicable Industries :

Machinery Repair Shops, Manufacturing Plant

Showroom Location :

Morocco, Kenya, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Ukraine, Kyrgyzstan, Malaysia

Core Components :

Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox

Year :

2020

Packaging Details :

wooden case

Port :

China Port

Supply Ability :

300 Set/Sets per Month

MOQ :

1 set

Price :

$9,500.00/sets >=2 sets

Description

Product Description

VERTICAL TURRET MILLING MACHINE

Standard accessories:
Draw bar, Electric box, Working light, Hand oil pump, Tool & tool box;

Optional accessories:
Digital readout system (DRO), Machine vise, Power feed unit, Gear box, Power feed, Clamping kits, ISO30 / ISO40 collet chuck, R8 collet chuck, Oil colleting plate, Plastic splash guard, Cooling system.

Specification		Unit	M330	M330A
Table size		mm	330x1370
Longitudinal travel		mm	840/1000
Cross travel		mm	368
Vertical travel		mm	450
T- slot No. and size		mm	3x16
Ram travel		mm	500
Distance from spindle to table		mm	0-450
Spindle hole taper			Standard: ISO40
Spindle travel		mm	127
Spindle speed		rpm	Standard: step 16 speed(50HZ: 65-4500 / 60HZ: 80-5440)
			Optional: Variable speed 65-3750
Auto. Quill feed		mm/r	Three steps: 0.04(0.0015")/0.08(0.003")/0.15(0.006")
Spindle motor		kw/HP	3.75kw / 5HP
Head swivel			90°
Head tilting			45°	Fix
Dimension of package	One	mm	1800x2016x2180
	Two	mm	1800x2200x2180
Gross weight		kg	2300	2350

M330:

*Rectangular guide ways on Y and Z axis.

*The guide way on saddle is lined with TF wearable material.

*5HP milling head motor and quill diameter is 100mm.

*The work table surface and 3 axis guide way are hardened and precision ground.

*Z axis adopts high speed lifting motor.

*Super saddle structure.

M330A:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

*5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.

*Super saddle structure;

*Fixed structure is used to connect the mill head without adapter.
