ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications
Specifications
Table Travel (X) (mm) :
1000
Machining Capacity :
Heavy Duty
Table Travel (Y) (mm) :
300
Table Travel (Z) (mm) :
440 mm
Spindle Taper :
ISO40
Range of Spindle Speed(r.p.m) :
45 - 1660 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
US320
Type :
VERTICAL
Spindle Motor Power(kW) :
7.5
Voltage :
As client's request
Dimension(L*W*H) :
2294*1770*1780mm
Weight (KG) :
2900
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
After-sales Service Provided :
Online support
milling machine :
machine tools
Power(W) :
4kw (V); 7.5kw (H)
Weight :
2900kg
Certification :
CE, ISO9001:2008
X-axis travel :
1000mm
Y-axis travel :
300mm
Z-axis travel :
440mm
Warranty period :
1 year
Number of Axes :
2
Condition :
New
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
Showroom Location :
Romania, Malaysia, Germany, Viet Nam, Brazil, Indonesia, Russia, Thailand
Core Components :
Motor, Other
Table Travel (mm) :
1000x300x440
Packaging Details :
Wood case (fumigated)
Port :
Qingdao Port
Supply Ability :
60 Set/Sets per Month
Price :
$12,000.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

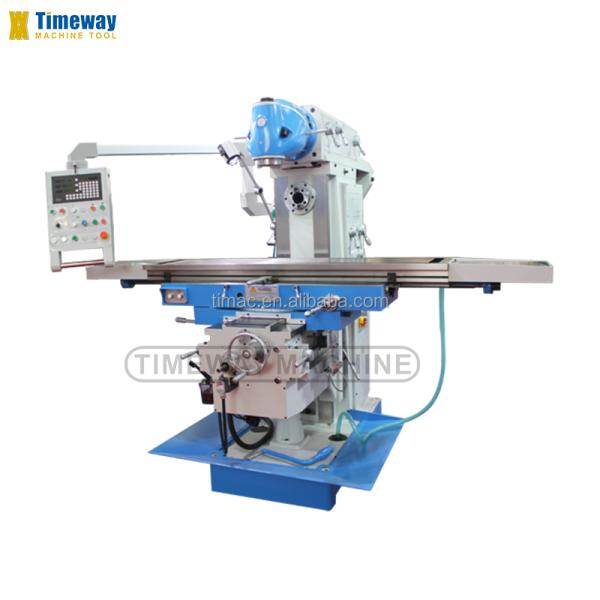

Swivel Head Knee type Milling Machine US320

ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications

Key Feature:

• Hardened and ground table surface;

• Rectangular column guideway with high stability;

• Automatic feeds on X, Y, Z axes;

• Worktable can swivel ±35°;

• Both horizontal spindle and swivel milling head.

Technical Specification:

Model

US320W

US360W

Table size (W×L)

320×1320mm

360×1320mm

Table travel (X/Y/Z)

1000×300×440mm

1000×280×400mm

Table t-slots(No./Width/Pitch)

5-14-63mm

3-14-95mm

Max.rotation angle of table

-

±35º

Max. loading of worktable

300kg

300kg

Spindle taper

ISO40

ISO50

Spindle speed range - Vertical

45-1660r.p.m (11steps)

50-1800r.p.m (11steps)

- Horizontal

38-1310r.p.m (12steps)

60-1750r.p.m (12steps)

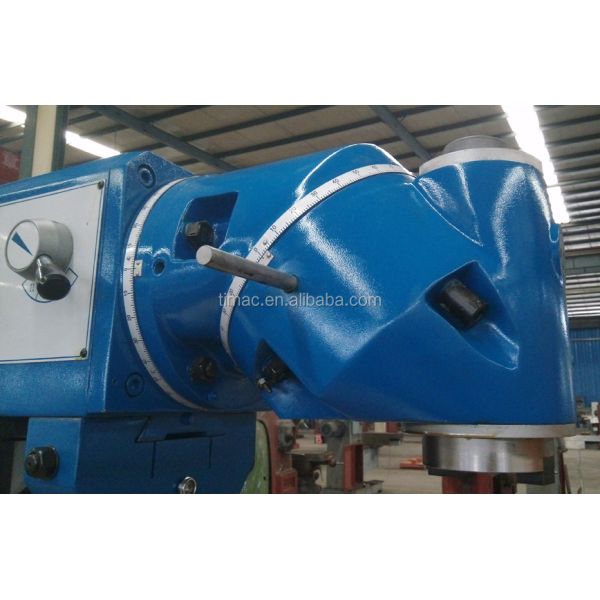

Swivel angle of milling head

±360°

±360°

Table longitudinal & cross feed (X/Y)

20-360mm/min (8steps)

22-393mm/min

Table vertical feed (Z)

422mm/min (1step)

10-168mm/min

Table rapid speed (X/Y/Z)

1200/1200/422mm/min

1290/1205/513mm/min

Vertical spindle - table

200-640mm

170-570mm

Vertical spindle - column

200-760mm

220-720mm

Horizontal spindle - table

30-450mm

0-400mm

Horizontal spindle - arm

175mm

175mm

Ram travel

460mm

500mm

Main motor power

3 kw

4 kw

Feed motor

0.55kw (X/Y), 0.75kw (Z)

1kw (X/Y/Z)

Overall dimensions (L×W×H)

2020×1710×1994mm

2070×2025×2020mm

Packing size (L×W×H)

2260×1870×2250mm

2070×1930×2250mm

N.W/G.W

2000/2200kg

2250/2450kg

Price (FOB China)

Standard Configuration:

7:24 Middle sleeve, Shell end mill arbor, Wrench, Inner hexagon spanner, Milling arbor, Milling Chuck, Draw bar,

Cooling system, Working light, Operator manual.

Options & Extra Cost:

3-axis SINO D.R.O, 58pcs clamping kit, Spindle guard, Machine vise, Dividing head, Rotary table

ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications

ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications

ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications

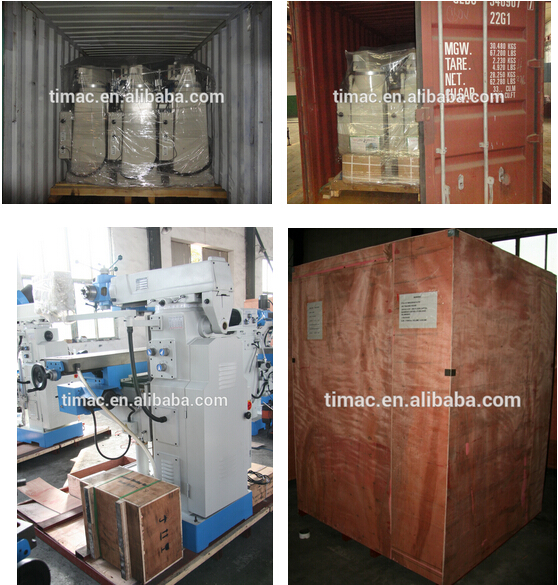

Packaging & Shipping

ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size: 2.3 x 1.77 x 1.78M N.W./G.W.: 2900/3100kg

Container loaded: 3 sets / 20'GP

Client feedback

ISO40 Spindle Taper Swivel Head Knee Milling Machine US320 for Versatile Applications



Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
