3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your
3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your
3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your
3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your
3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your
3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your
3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your
3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your
Specifications
Table Travel (X) (mm) :
850
Machining Capacity :
Light Duty
Table Travel (Y) (mm) :
420
Table Travel (Z) (mm) :
420
Spindle Taper :
ISO40
Range of Spindle Speed(r.p.m) :
65 - 3750 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
M250C/D,M300,M330,M330A
Type :
VERTICAL
Spindle Motor Power(kW) :
3.75
Voltage :
as customer's request
Dimension(L*W*H) :
1516*1550*2080mm
Weight (KG) :
1590
Warranty :
1year
Key Selling Points :
Easy to Operate
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
CNC or Not :
Normal
table size :
254*1270mm
Vertical Turret Miller :
Swivel Head Milling Machine
After Warranty Service :
Online support
Local Service Location :
Kenya
X-axis travel :
850mm
Y-axis travel :
420mm
Z-axis travel :
420mm
Warranty period :
1 year
Number of Axes :
2
Condition :
New
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
Showroom Location :
Chile, Algeria, Bangladesh, Australia, Viet Nam, Brazil, Indonesia, Mexico, Russia, Thailand
Core Components :
Motor, Pump, Other
Packaging Details :
in wooden case(can be fumigated) or plywood case
Port :
China Port
Supply Ability :
50 Set/Sets per Month
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description

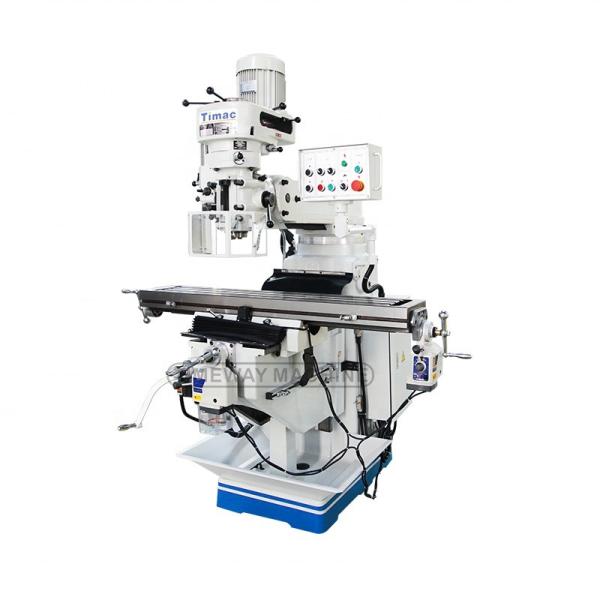

Vertical Turret Miller Swivel Head Milling Machine For Sale

3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your

3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your

Product Description

Features:

M250C:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

*5HP milling head motor and quill diameter is 100mm;

*Fixed structure is used to connect the mill head without adapter;

M250D:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm.

M250U:

*Rectangular guide ways on Y and Z axis;

*X, Y axis adopt auto feed gear box; Feed motor: 250w; Feed rate: 15, 23, 33, 48, 78, 114, 166, 257;

*The work table surface and 3 axis guide way are hardened and precision ground.

M300:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.

M300A:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

*5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor;

*Fixed structure is used to connect the mill head without adapter;

M330:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

* 5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.

* Super saddle structure.

M330A:

*Rectangular guide ways on Y and Z axis;

*The guide way on saddle is lined with TF wearable material;

*5HP milling head motor and quill diameter is 100mm;

*The work table surface and 3 axis guide way are hardened and precision ground;

*Z axis adopts high speed lifting motor.

*Super saddle structure;

*Fixed structure is used to connect the mill head without adapter.

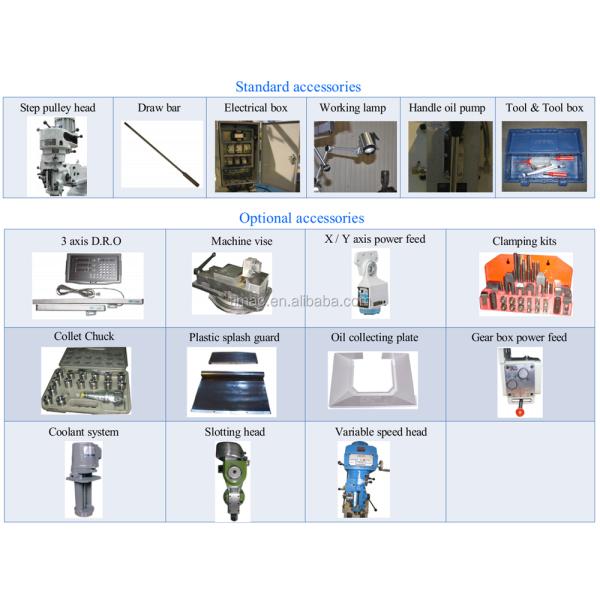

Standard Accessories:

Draw bar, Electric box, Working light, Hand Oil pump, Tool & tool box

Optional Accessories:

Digital readout sysytem(DRO), Machine vise, Power feed unit, Gear box power feed, Clamping kits, ISO30/ISO40 collect chuck, R8 collect chuck, Oil collecting plate, Plastic splash guard, Cooling system.

3.75kW Spindle Motor Power Vertical Turret Miller Swivel Head Milling Machine for Your

Parameters:

Specification Unit M250C M250D M300 M300A M330 M330A
Table size mm 254×1270 305×1370 330×1370
254×1370 305×1500 330×1500
Longitudianl travel mm 850/950 870/1000 740/1000
Cross travel mm 420 380 368
Vertical travel mm 420 420 450
T-slot(NO.& Size) mm 3×16
Ram travel mm 470 500
Distance from spndle to table mm 0-420 0-435 0-450
Taper of spindle hole Standard ISO40
Spindle travel mm 127
Spindle speed rpm Standard:step16speed 50HZ:65-4500 60HZ:80-5440
Optional:Variable speed 65-3750
Auto.feed of quill mm/r 3steps:0.04(0.0015")/0.08(0.003")/0.15(0.006")
Spindle motor kw/HP 3.75kw/5HP
Head Swivel 90º
Head tilting fix 45º fix 45º fix
Dimension of package One mm 1516×1550×2080 1566×1650×2080 1800×2016×2180
Two mm 1650×1790×2170 1720×1800×2175 1800×2200×2180
Gross weight kg 1590 1700 1750 2300 2350

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
