Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm
Specifications
Table Travel (X) (mm) :
1500
Machining Capacity :
Heavy Duty
Table Travel (Y) (mm) :
670
Table Travel (Z) (mm) :
670
Spindle Taper :
7:24
Range of Spindle Speed(r.p.m) :
40 - 1600 r.p.m
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
BM715, BM715
Type :
Universal
Spindle Motor Power(kW) :
7.5
Voltage :
As Requirement
Dimension(L*W*H) :
4925x2380x2750mm
Weight (KG) :
7300
Warranty :
one year
Key Selling Points :
High-accuracy
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
Normal
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
Customer Requirement
Power :
7.5KW
Weight :
7300kg
Longitudinal travel :
1500mm
Cross travel :
670mm
Vertical travel :
670mm
Warranty period :
1 year
Number of Axes :
3
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location :
South Africa, Uzbekistan, Germany, Brazil, India, Russia
Core Components :
Bearing, Motor, Gear, Gearbox
Table Travel (mm) :
1500x670x700
Packaging Details :
Wooden case(can be fumigated)
Port :
China port
Supply Ability :
100 Set/Sets per Year
Price :
$36,800.00/sets 1-2 sets
MOQ :
1 set
Description
Main Outlook

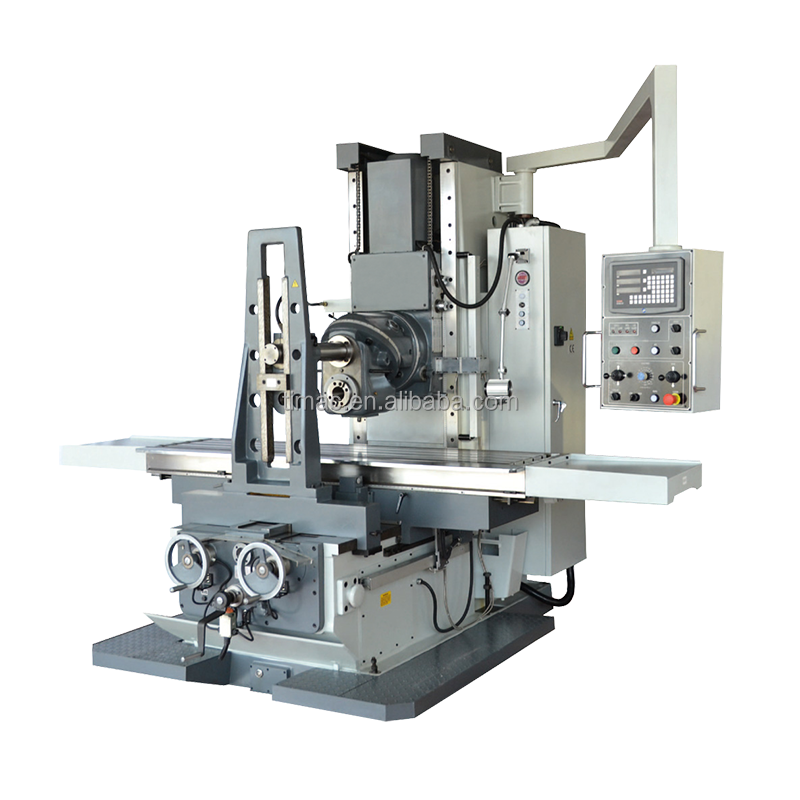

Bed type universal milling machine BM715

Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm

Product Description

Features:

Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.

1. An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.

2. Extra wide guideways ensure maximum stability and precision at high loads.

3. Extra long table travel distance (1500mm) and large table setup area (2100 x 500 mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.

4. Wide spindle speed range from 40 to 1600 rpm.

5. Infinitely variable linear and cross feed.

6. Control panel on a long extending arm that can be ideally positioned by the operator.

Specification Unit BM715
Table
Working surface (L×W) mm 2100×500
T-slot (W×No.) mm×piece 20×4
Max. travel Longitudinal mm 1500
Cross mm 670
Long & cross power feed Change no. stepless
Change range mm/min 20~1800
Long & cross rapid feed mm/min 3500
Head
Travel (from table surface) Vertical mm 0~670
Horizontal mm 8~708
Vertical power feed Change no. No step
Change range mm/min 10~900
Vertical rapid feed mm/min 1750
Spindle
Distance from spindle axis to guideway of column mm 610
Spindle revolution Change No. 12 steps
Change range r.p.m. (60HZ)40-1600 (50HZ)35-1345
Taper of spindle 7:24
Motor
Spindle drive motor kW 7.5
Feed motor kW (AC) 2
Cooling pump motor W 550
Lubricant pump motor W 120
Necessary floor space mm 4925×2380
Machine net weight Kg 7300

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm

Company Introduction

Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mmHeavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm

Customer Visiting

Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm

Exhibition&Training

Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
