Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant
Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant
Specifications
Condition :
New
type :
Drilling & Milling Machine
Max. Drilling Dia. (mm) :
50
Range of Spindle Speed(r.p.m) :
90 - 2000 r.p.m
CNC or Not :
Normal
Drilling Speed :
Normal Speed
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
MDW500
Voltage :
Customer's Requirement
Dimension(L*W*H) :
1520x1285x2150mm
Power (kW) :
2.2
Weight (KG) :
1350 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Showroom Location :
Chile, South Africa, Malaysia, Australia
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Other
Marketing Type :
Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Other
Color :
Customizable
Table size :
1120x260mm
X/Y-axis travel :
600/300mm
Spindle taper :
ISO40
Spindle speed (rpm) :
90-2000(V),38-1310(H)
Certification :
CE ISO
Power :
2.2kw
Max.drilling capacity :
50mm
After Warranty Service :
1 year
Machine type :
Small Milling Drilling Machine
Packaging Details :
In plywood cases.
Port :
China port
Supply Ability :
300 Set/Sets per Month
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description

Universal Milling Drilling Machine

MDW500

Main Outlook

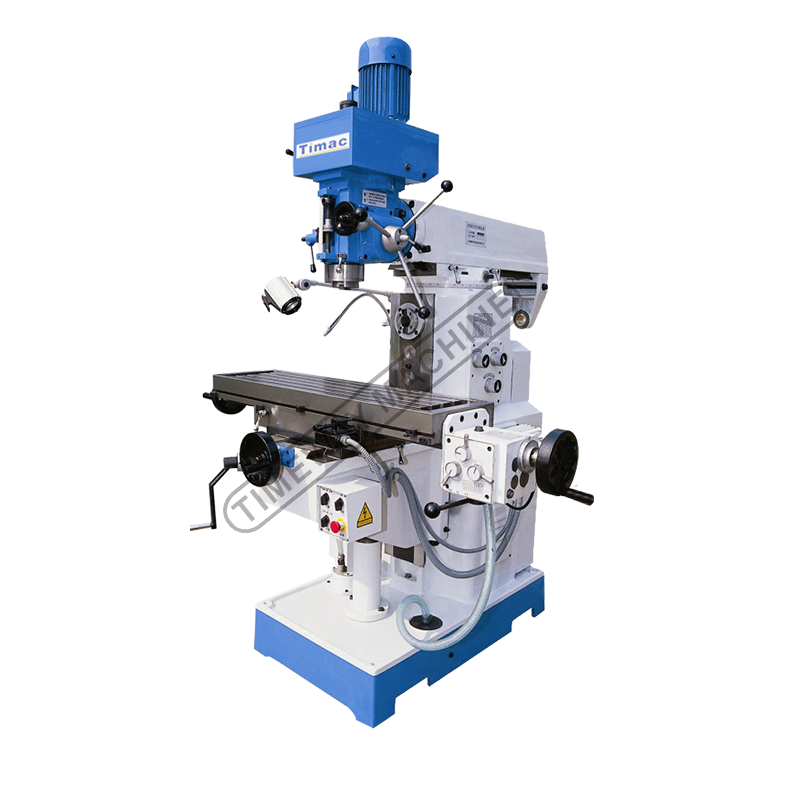

Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant

Product Description

Features:
» Hardened and ground table surface.
» Automatic feeds on X/Y-axis, motorized rise and fall of table on the Z-axis.
» Headstock swivels ±90°, ram swivels ±180°.
» Vertical and horizontal spindles with 8-steps speed by gear changing.
» Table with swiveling ±45°is chosen, increase machining range.
» Deep scale and micro-feed hand-wheel are standard equipment.
» Coolant system and chip collection tray are included in standard equipment, but 3-axis DRO. is optional accessory.

Standard:
Coolant system, Oil collecting plate, Work lamp, Elevating rotary handle, Drill chuck, Mill collets, Draw bar, Machine vise, Wrench, Spanner, Middle sleeve, Operation manual(English edition).

Optional:
3 axes DRO, 58pcs clamping kits,Rotary table, Dividing head, Variable frequency motor, Universal milling head.

Technical parameter:

Model Unit MDW500
Table size mm 1120×260
Table travel mm 600/300
Spindle taper ISO40
Spindle speed range r.p.m 90-2000(V),38-1310(H)
Max.drilling capacity mm 50
Automatical drilling dia. mm 14
Max.end milling dia. mm 100
Max.vertical milling dia. mm 25
Max.tapping dia. M16
Distance from spindle nose to table mm 100-430
Spindle travel mm 120
Main motor kw 2.2
Overall dimension(L×W×H) mm 1520×1285×2150
Net weight kg 1350

Client feedback

Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant

Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant

Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant

Our Services

Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant

Company Information

Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant

Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant

Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant

If you have any queries please give us a

call or send us a message.

We will be happy to assist you!

Packaging & Shipping

Vertical and Horizontal Spindle Milling Drilling Machine for Your Manufacturing Plant

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:

One piece in one case: 114x122x222CM N.W./G.W.: 850/1050KGS

Two pieces in one case: 114x122x222CM N.W./G.W.: 1700/1900KGS

Container loaded: 3 sets / 20'GP
