Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery
Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery
Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery
Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery
Specifications
Brand Name :
THLB
Model Number :
24v20Ah
Place of Origin :
China
MOQ :
2 pieces
Price :
$540/pieces 10-49 pieces
Payment Terms :
T/T
Delivery Time :
7-15 Working Days
Packaging Details :
Standard Packaging
Cycle Life :
1500 cycles
Application :
Electric Wheelchairs, Golf Carts, Electric Bicycles/Scooters
Operating Temperature(℃) :
-20-60
Cathode Materials :
LiFePO4
Voltage :
72V
Capacity :
50Ah
Category :
Rechargeable Batteries pack
Cycle Characteristic :
2000 times
Working Temperature :
-20°C~60°C
Battery Weight :
6.8±0.2 kg
Color :
black
Description
3600Wh Lithium Iron Phosphate Battery Pack 72V 50Ah AGV Lifepo4 Battery
High-performance AGV Lithium Iron Phosphate battery pack with 2000 cycles lifespan and wide operating temperature range of -20°C to 60°C.

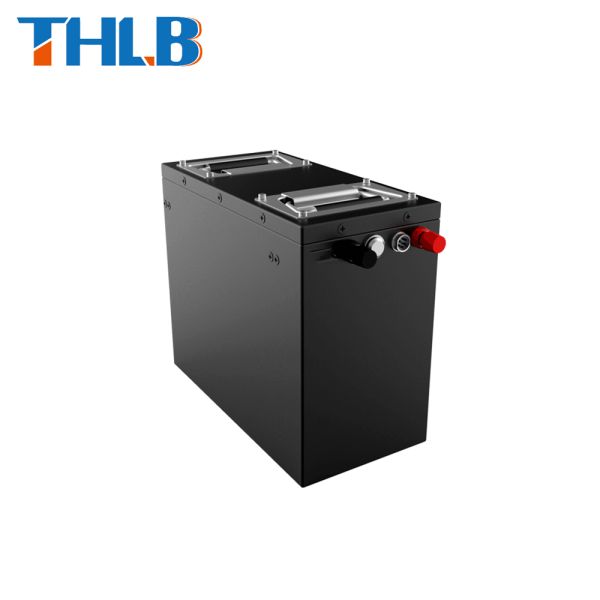

Product Images
Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery
Product Specifications
Normal Voltage 72V
Normal Capacity 50Ah
Battery Energy 3600Wh
Inner Resistance < 60mΩ
Battery Cycle Life 2000 Times @100%DOD
6000 Times @80%DOD
Reference Battery Weight 6.8±0.2 kg
Battery Encapsulation Metal Case
Charge Voltage 82.8V
Charge Mode CC/CV
Normal Charge Current <=20A
Normal Discharge Current 25A
Max. Continuous Output Current 50A
Max. Continuous Output Power 3600W
Operation Temperature Range Charge: 0°C - 45°C
Discharge: -20°C - 60°C
Battery Storage Temperature -20°C - 25°C
Safety Performance Classification
Comprehensive Safety Testing for Industrial Applications
  • Resistance to heavy loads - tested to prevent ignition or explosion
  • Resistance to thermal shock - tested to prevent ignition or explosion
  • Anti-overcharge protection - tested to prevent ignition or explosion
  • Resistance to overdischarge - tested to prevent ignition or explosion
  • Resistance to short circuit - tested to prevent ignition or explosion
  • High temperature storage stability - tested to prevent leakage, smoke, fire or explosion
  • Anti-heating protection - tested with no battery penetration through safety screen
  • Anti-puncture resistance - tested to prevent ignition or explosion
  • Anti-extrusion durability - tested to prevent ignition or explosion
  • Resistance to low pressure - tested to prevent leakage, smoke, fire or explosion
  • Constant damp heat resistance - maintains capacity above 90% of rated value
  • Anti-vibration performance - maintains normal operation under stress
  • Anti-collision durability - maintains normal operation after impact
  • Temperature cycling stability - maintains capacity above 70% of initial state
  • Flame retardant properties - meets GB/T2408-2008 FH-1 and FV-0 standards
  • Insulation resistance - exceeds 2 MΩ for metal casing models
Additional Product Images
Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery

Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery

Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery

Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery

Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery

Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery

Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery

Company Information
Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery
Packing & Delivery
Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are available, but shipping costs are not covered.
Q2. What about the lead time?
A: Samples require 3-5 days. Mass production time is approximately 2-3 weeks.
Q3. Do you have any MOQ limit for bulk order?
A: Minimum order quantity is 100 pieces.
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small orders: Courier shipping with door-to-door delivery (6-10 days). Bulk orders: Air or sea shipping options available.
Q5. How to proceed an order for Lithium ion cell?
A: Process includes confirming cell models, receiving specifications and quotation, order confirmation, and production upon payment.
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes, OEM services are welcome.
Q7: Do you offer guarantee for the products?
A: Yes, we provide 3-5 years warranty on our products.
