Specifications
Model Number :
24v20Ah
MOQ :
10 pieces
Price :
$90/pieces 10-49 pieces
Max Load Quantity(cells) :
4
Cycle Life :
1000 cycles
Application :
Electric Wheelchairs, Golf Carts, Electric Bicycles/Scooters
Operating Temperature(℃) :
-20-60
Cathode Materials :
LiFePO4
Type :
Li-ion
Voltage :
24V
Capacity :
20Ah
Category :
Rechargeable Batteries pack
Cell Configuration :
LiFePO4 26650 3.2V 3200mAh-8S7P
Cycle Characteristic :
2000 times
Working Temperature :
-20°C~60°C
Battery Weight :
2.9±0.2 kg
Reference Battery Size :
(168±1)*(128±1)*(102±1) mm
Color :
white,black
Place of Origin :
China
Brand Name :
THLB
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Description
2000 Cycles Lithium Iron Phosphate Battery Pack 24V 20Ah Lifepo4 Battery 480Wh Operating Temperature -20 to 60 Celsius
Product Parameters

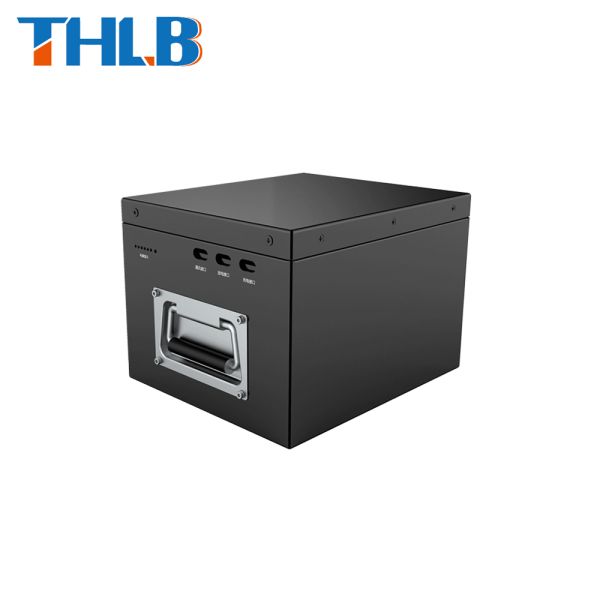

480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery

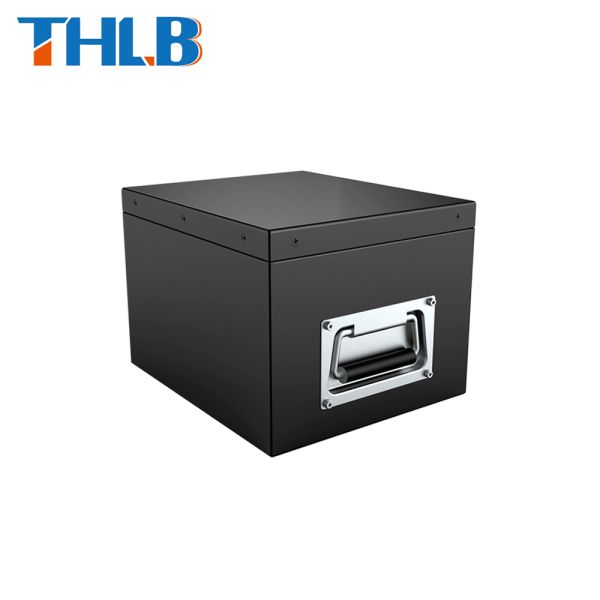

480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery

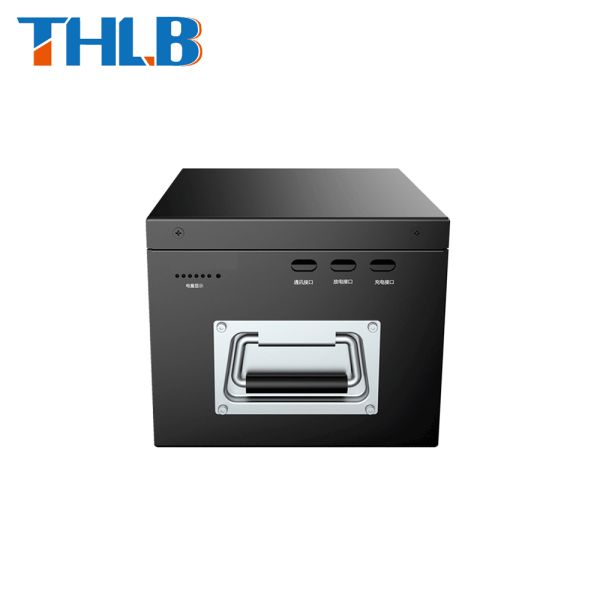

480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
MAIN KIT INCLUDES
1 x 24V20Ah LiFePO4 Battery Module
1 x 4S-20A PCM
1 x Plastic Battery Case
2 x M8 Terminals
PRODUCT SPECIFICATION-24V 20Ah Lithium iron phosphate battery pack 480Wh lifepo4 battery
Normal Voltage
24V
Normal Capacity
20Ah
Battery Energy
480Wh
Inner Resistance
< 60mΩ
Battery Cycle Life
2000 Times @100%DOD
6000 Times @80%DOD
Cell Configuration
LiFePO4 26650 3.2V 3200mAh-8S7P
Reference Battery Size
(168±1)*(128±1)*(102±1) mm
Reference Battery Weight
2.9±0.2 kg
Battery Encapsulation
Plastic Case
Charge Voltage
28.8V
Charge Mode
CC/CV
Normal Charge Current
<=50A
Normal Discharge Current
10A
Max. Continuous Output Current
20A
Max. Continuous Output Power
480W
Passive Protection Function
Over charge protection; Over discharge protection; Over
current protection, etc
Operation Temperature Range
Charge: 0'C---45'C
Discharge : -20'C---60'C
Battery Storage Temperature
-20'C---25'C
Individual Cell Approval
CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS

Safety performance classification-With factory price, 12v 20ah lithium battery pack for golf cart

(1) Resistance to heavy loads. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(2) Resistance to thermal shock. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(3) Anti-overcharge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(4) Resistance to overdischarge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(5) Resistance to short circuit. The battery module shall be tested according to the regulations and shall not ignite or explode.

(6) High temperature storage. The battery shall be tested according to the regulations and shall not leak, smoke, catch fire or explode.

(7) Anti-heating. The battery module is tested according to the regulations. No part of the explosion battery penetrates the screen, and some or all of the batteries protrude from the screen.

(8) Anti-puncture. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(9) Anti-extrusion. The battery module shall be tested according to the regulations and shall not ignite or explode.

(10) Resistance to low pressure. The battery pack shall be tested in accordance with regulations and shall not leak, smoke, catch fire or explode.

(11) Constant damp heat. After the battery pack is tested according to the regulations, its appearance shall be free from obvious deformation, rust, smoke or explosion, and its capacity shall not be less than 90% of the rated value.

(12) Anti-vibration. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.

(13) Anti-collision. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.

(14) Temperature cycling. The battery pack shall be tested in accordance with the provisions of 6.6.15, which shall not leak, smoke, ignite or explode; the appearance of the battery pack shall be free of cracks, no loss of quality, and the capacity shall not be lower than 70% of the initial state.

(15) Flame retardant properties. For battery packs with plastic casing and protective cover, the test shall be carried out in accordance with the provisions of 6.6.16. The outer casing shall comply with the provisions of Article 8.3.2 of the GB/T2408-2008, FH-1 (horizontal level) and 9.3.2 of FV-0 (vertical). Level) requirements.

(16) Insulation resistance. For a battery pack with a metal case, the insulation resistance of the battery pack's metal and cathode housings is not less than 2 MW.

480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
Our Company
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
Packing & Delivery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
480Wh Lithium Iron Phosphate Battery Pack THLB 24V 20Ah Lifepo4 Battery
FAQ

Q1. Can I have few free samples for evaluation?

A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?

A: Samples needs 3-5 days

B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?

A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days

B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?

A: Pls confirm the cell models that you are interested in

B: We send cell specifications and best quotation to you for reference

C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly

D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 3-5 Years Warranty
