80V Electric Forklift Battery Maintenance Free 24V 36V 48V Off Grid Lithium Battery

Specifications

Model Number :

80V 206ah

Brand Name :

THLB

Place of Origin :

China

MOQ :

100 packs

Price :

$1,399/packs 100-999 packs

Battery Type :

LiFePO4, LifePO4

Output Power Range :

10~20 kWh

Dimension (L*W*H) :

554x554x352mm

Weight :

150kgs, 87

System Type :

Forklift Battery

Communication Port :

CAN, Rs485

Protection Class :

IP65

Grid connection :

Off grid

Application :

off grid Solar Household Energy Battery

Capacity :

206Ah

Nominal Voltage :

80V

Charge Voltage :

90V

Discharge current :

200A

Internal resistance :

≤20mΩ

Cycle life :

3000 Times

Communication :

CAN,RS485

Packaging Details :

Standard Packaging

Delivery Time :

7-15 Working Days

Description

80V Nominal Voltage Electric Forklift Battery Maintenance Free Replacement Lead Acid Battery 24V 36V 48V Off Grid Connection

24V 36V 48V 51.2V 80V Electric Forklift Lithium Battery Compatible With Hyster-Yale,Crown,Toyota,Raymond,Doosan,Unicarriers

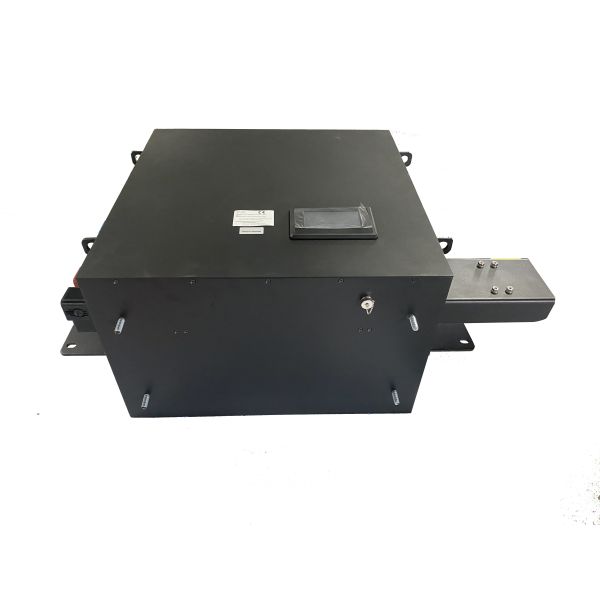

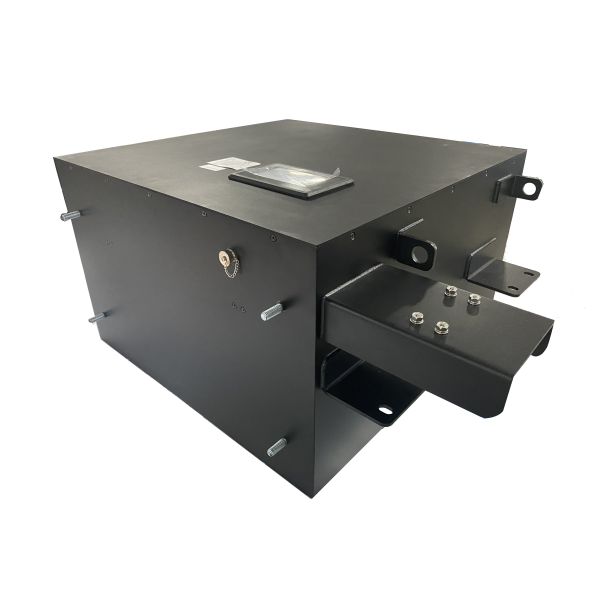

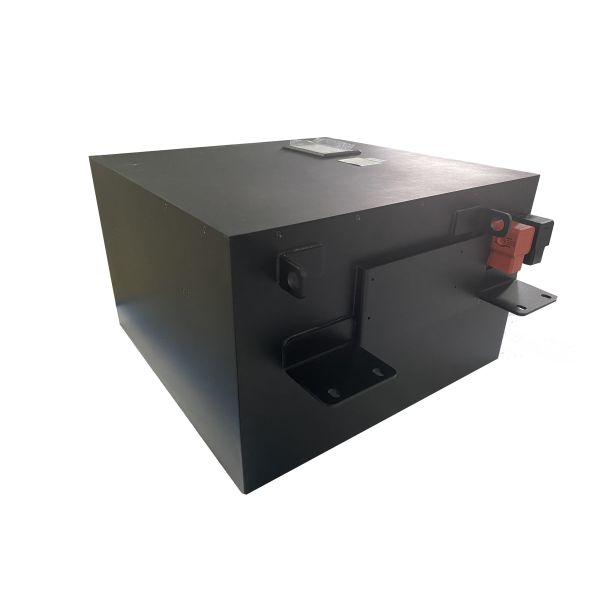

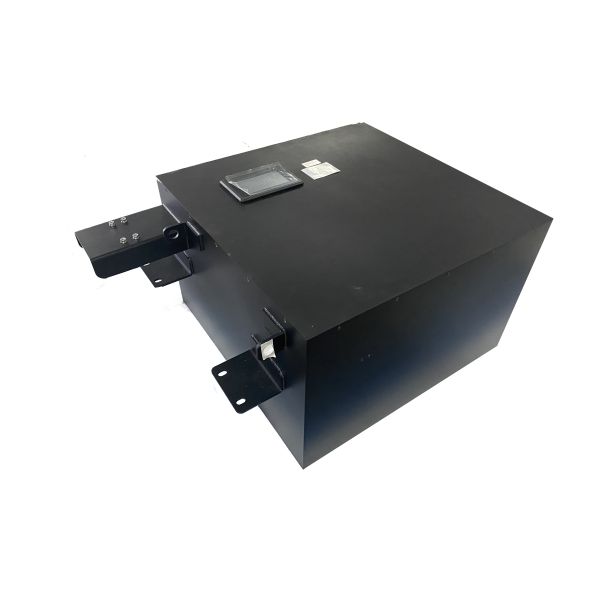

Product Showing

Specification

Combination method	25S1P
Rated Capacity	Typical: 206Ah
Nominal Voltage	80V
Cut-off Voltage	62.5V
Charging Voltage	90V
Internal Impedance	≤80mΩ
Standard charge	150A
Charging Cut Off current	2A
Operation Temperature Range	Charge: 0~45℃ Discharge: -20~55℃
Storage Temperature Range	Less than 12 months : -10~35℃ less than 3 months: -10~45℃ Less than 7 day : -20~65℃
Dimensions	554x554x352 mm
Weight	150kg
Communication	CAN RS485

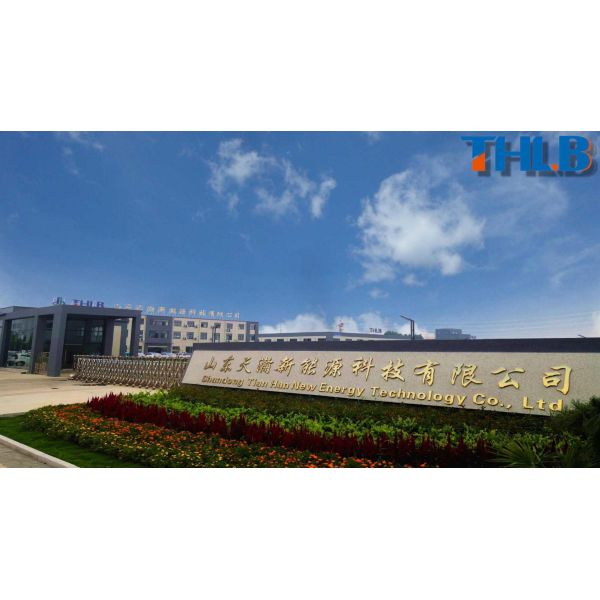

Company Profile

FAQ

Q1: Are you a factory or a trading company A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification. Q2: Can I have samples to test? And what is lead time for sample order? A2: Yes,we can supply samples,the lead time for samples is 7-10 days.and buyer pay for sample cost and shipping cost. Q3: Do you provide after-sales service? A3: Yes,the warranty is 5 years, if any quality problems on our side in this period, we can send new one as replacement. Q4 What is your company's advantage? A4: We only supply high level quality of lithium battery and we guarantee on-time shipment,we also provide excellent after sales service Q5: Do you accept OEM/ODM? A5: Yes,it is available. Q6: What information do you need to make a customized battery pack? A6: We need the details below: 1. Size of the battery pack you need in mm. 2. Capacity of the Battery pack. 3. Voltage of the battery pack. 4. Max discharge current. 5. Cable and connector types you need. 6. Casing and Terminals if required. 7. Any protection circuits you may need. Q7:Are you battery real capacity? A7:All of our battery cells with Grade A,100% new and real capacity. Q8: What kind of certificates do you have? A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3. Q9: What is your lead time for the mass production? A9: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
