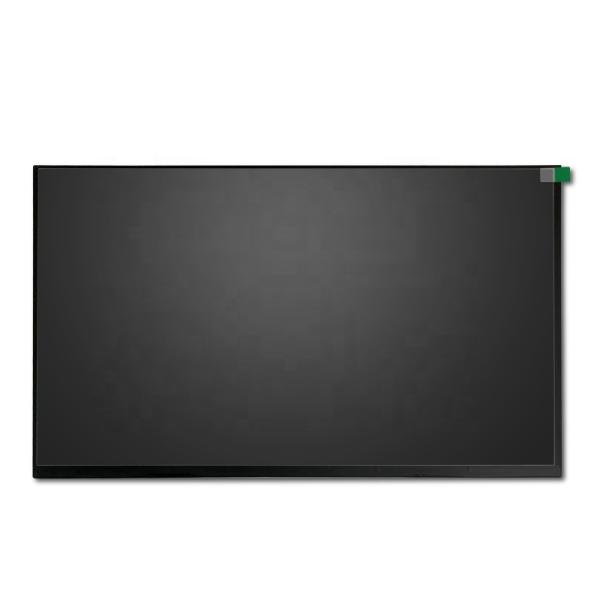

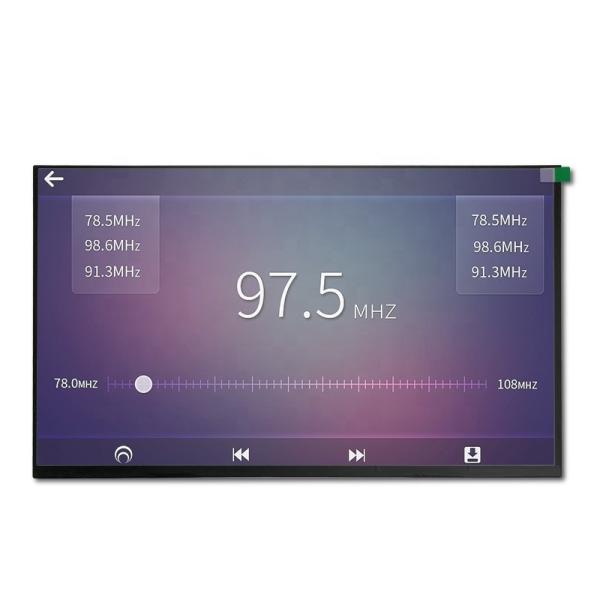

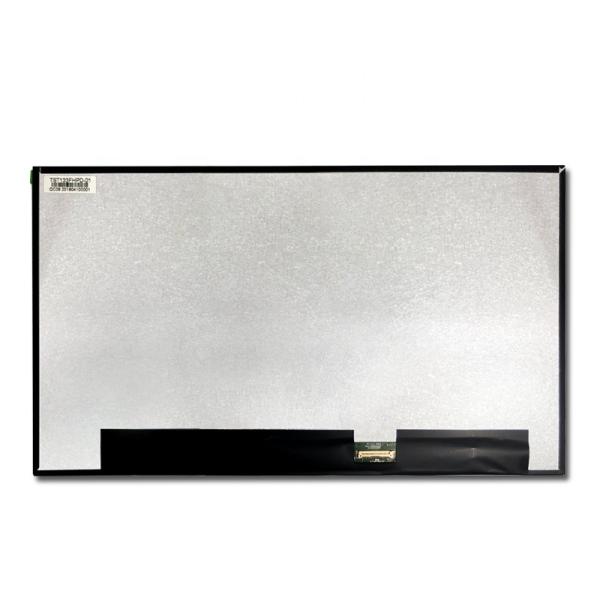

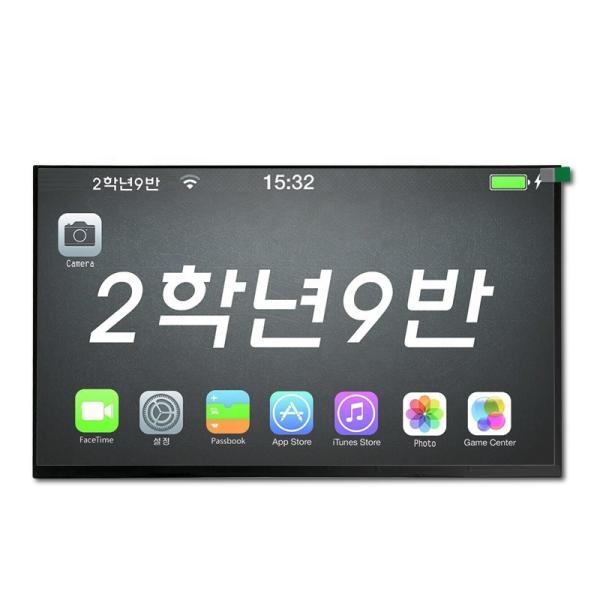

13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
dash board lcd screen 13.3inch tft lcd display 1920X1080 EDP interface
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Type :
TFT, TFT LCD
Display Size :
13.3inch
Supplier Type :
Manufacturer
Resolution :
1920X1080
Backlight :
56LEDs, 160mA, 21.5V
Interface Type :
TTL(EDP)
Viewing direction :
All O'clock
Surface Treatment :
Anti-glare, coating : 3H
Outline Dimension :
306.2x190.62x4.5mm
Brightness :
220 cd/m2
Active Area :
293.76x165.24mm
Pixel Pitch :
0.153(H)*0.153(V)
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
dash board lcd screen 13.3inch tft lcd display 1920X1080 EDP interface
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
Item
Specification
Display Mode
13.3''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST133FHPD-01
Resolution
1920x(RGB)x1080
Outline Size
306.2x190.62x4.5mm
Active Area(WxH)
293.76x165.24mm
View Direction
All O'clock
Pixel Pitch
0.153x0.153
Interface
TTL(EDP)
Backlight
56LEDs, 160mA, 21.5V
Surface Lumiannce
220nits
Surface Treatment
Anti-glare, coating : 3H
Operating Voltage
3.3V
Operating Temperature
-0℃~50℃
Storage Temperature
-20℃~60℃
About us
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
Application
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77",
2", 2.2'', 2.4", 2.8",3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
Packing & Delivery
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
Customer Photos
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
13.3inch TFT LCD Screen , Dash Board 1920x1080 Lcd Panel 56LEDs
Related Products
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
