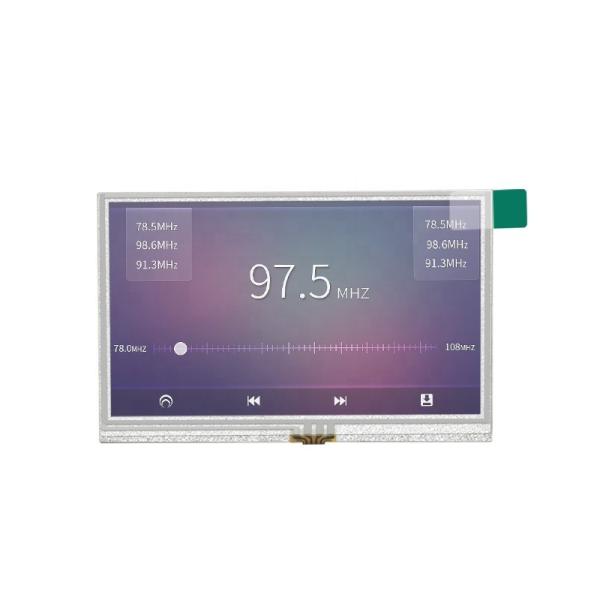

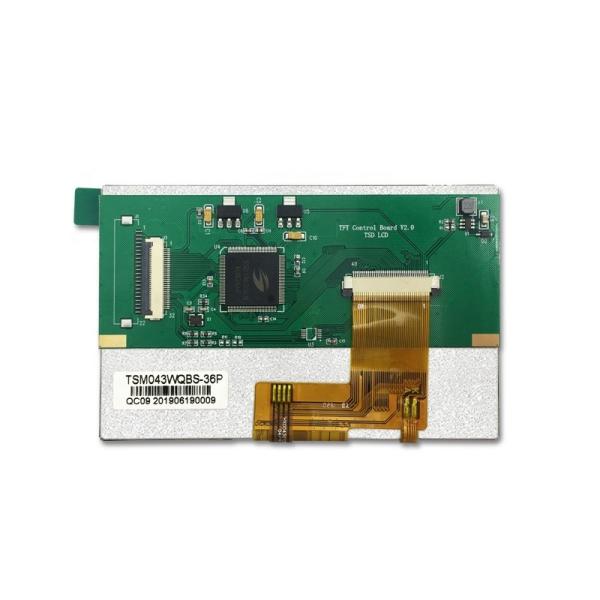

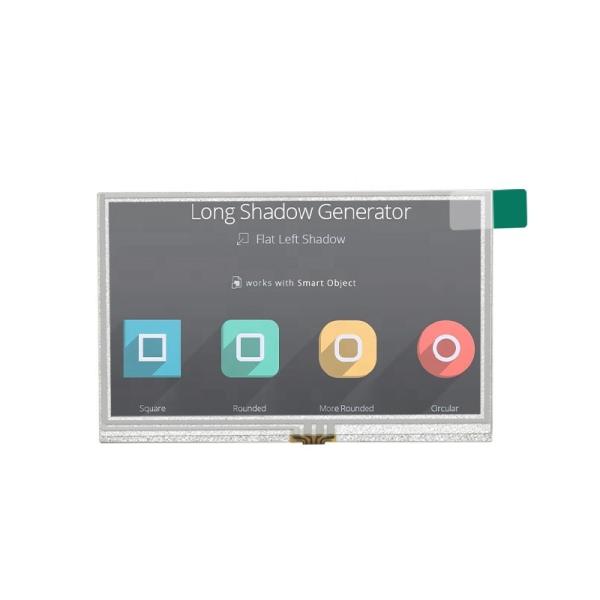

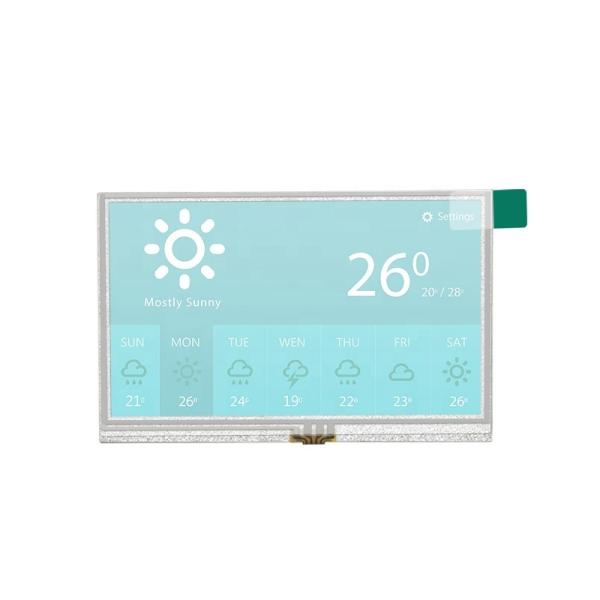

480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
Specifications
Place of Origin :
Guangdong, China
Model Number :
TSM043WQBS-36P
Brand Name :
TSD
Packaging Details :
480x272 4.3inch tft lcd module with resistive touch screen ssd1963 controller
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
10000 Piece/Pieces per Month
Price :
Negotiable
Display Size :
4.3inch
Type :
TFT Display
Resolution :
480x272
Outline Dimension :
105.04(W)x67.1(H)x4.0(D)mm
Active Area :
95.04x53.86mm
Viewing direction :
12 O'clock
Driver IC :
SSD1963
Brightness :
400 Cd/m2
Interface Type :
MCU 8/16bit
Touch panel :
RTP
Backlight :
10LEDs
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
Product Description
480x272 4.3inch tft lcd module with resistive touch screen ssd1963 controller
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
Item
specification
Display Mode
4.3''/α-Si TFT/TN/
Transmissive/Normally White
Part NO.
TSM043WQBS-36P
Resolution
480x(RGB)x272
Outline Size
105.04(W)x67.1(H)x4.0(D)mm
Active Area
95.04x53.86mm
View Direction
12 O'clock
Color Depth
16.7M/65K/262K
Interface
MCU 8/16bit
Driver IC
SSD1963
Backlight
10LEDs, 40mA
Surface Treatment
Anti-glare
Surface Lumiannce
400nits
Input Voltage
3.3V
With/Without TP
With RTP
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
Application
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
Packing & Delivery
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
Customer Photos
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
480x272 Tft Lcd Touch Screen Module 4.3inch With Resistive Touch
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
