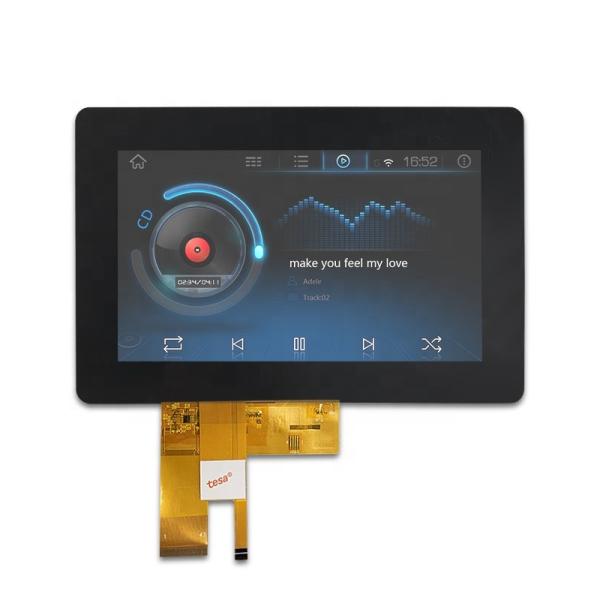

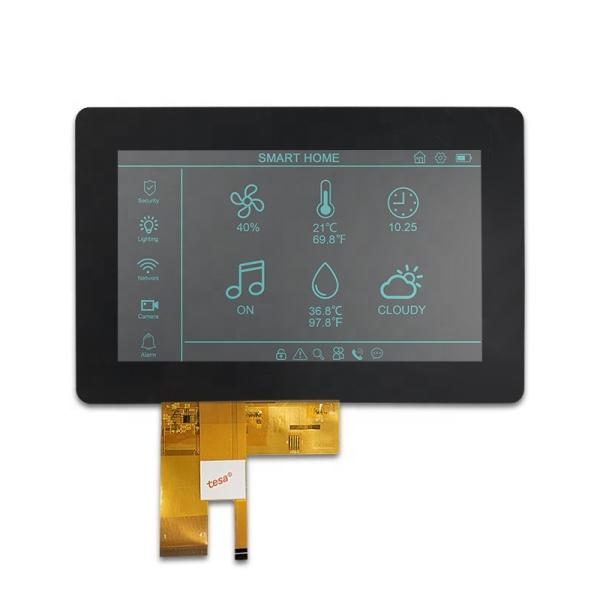

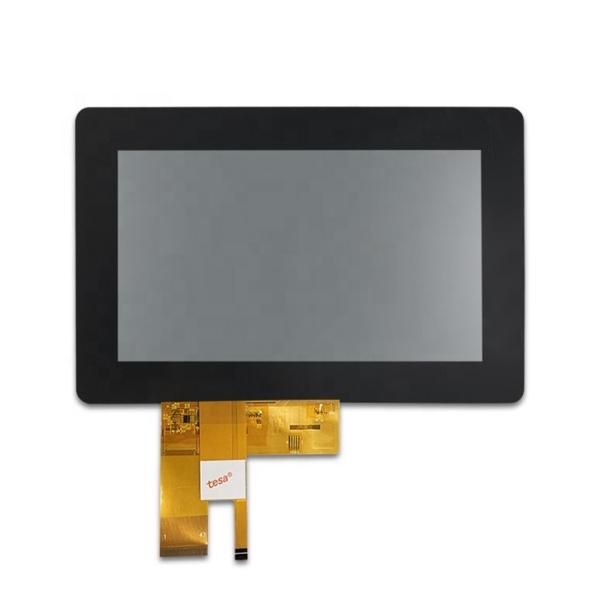

Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Specifications
Place of Origin :
Guangdong, China
Model Number :
TST070WVBE-32C
Brand Name :
TSD
Packaging Details :
lcd display 800x480 7inch tft lcd screen 12 o'clock for Industrial application ctp
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Display Size :
7.0inch
Type :
TFT LCD
Resolution :
800x480
Outline Dimension :
190.08x121.92x5.05mm
Active Area :
153.84x85.63mm
Viewing direction :
12 O'clock
TP/Lens :
CTP(FT5446)
Interface Type :
RGB 24bit
Brightness :
400-450 Cd/m2
Backlight :
21LEDs, 60mA, 22.4V
Warranty :
1 Year
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
Product Description
lcd display 800x480 7inch tft lcd screen 12 o'clock for Industrial application ctp
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Item
Specification
Display Mode
7.0''/α-Si TFT/TN/
Transmissive/Normally White
Part NO.
TST070WVBE-32C
Resolution
800x(RGB)x480
Outline Size
190.08x121.92x5.05mm
Active Area
153.84x85.63mm
View Direction
12 O'clock
Color Depth
16.7M
Interface
RGB-24bit
Backlight
21LEDs, 60mA, 22.4V
Surface Lumiannce
400-450nits
Surface Treatment
Anti-glare
TP/Lens
CTP(FT5446)
Operating Voltage
3.3V
Warranty
1Year
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
Certification
ISO 9001:2008
ISO 14001:2004
IATF16949
About us
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Application
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch,
including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8",3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design
4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Packing & Delivery
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Customer Photos
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare
Related Products
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare

TST043WQHS-67
Good Quality 4.3iinch IPS Display LCD ST7272 Driver IC 480x272 High Brightness Screen
Industrial TFT LCD Module 800x480 450nits Surface Lumiannce Antiglare

TST050WVHI-12
5.0'' Color 800x480 12 O'clock LCD Module Display 12LEDs with RGB Interface Anti-glare
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
