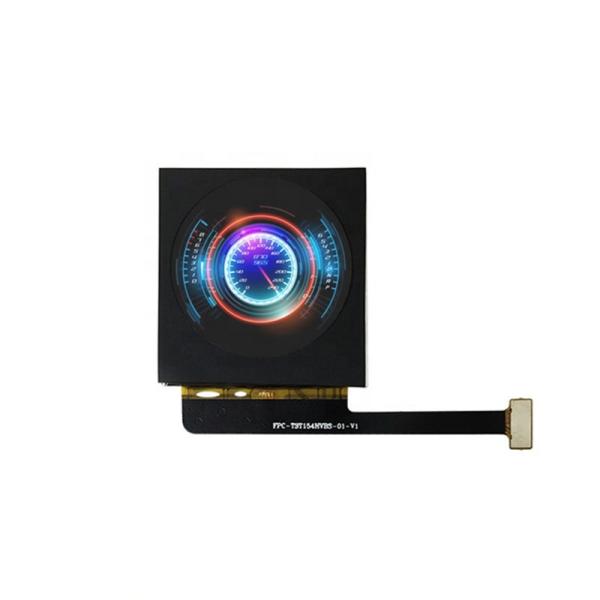

Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Specifications
Place of Origin :
Guangdong, China
Model Number :
TST1540HVBS-01
Brand Name :
TSD
Packaging Details :
Small Square Screen 1.54inch TFT LCD Modules 320x320 IPS LCD Panel
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
MOQ :
Negotiable
Price :
Negotiable
Display Size :
1.54inch
Type :
TFT LCD
Resolution :
320x320
Active Area :
27.744x27.744mm
Outline Dimension :
31.82x33.83x1.8mm
Driver IC :
ST7796S
Viewing direction :
All O'clock
Backlight :
3LEDs, 60mA, 3.2V
Interface Type :
MIPI 1Lane
Brightness :
280 Cd/m2
Warranty :
1 Year
Port :
Shenzhen/Hong Kong
Description
Product Description
Small Square Screen 1.54inch TFT LCD Modules 320x320 IPS LCD Panel
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Item
Specification
Display Mode
1.54''/α-Si TFT/ADS/
Transmissive/Normally Black
Part NO.
TST1540HVBS-01
Resolution
320x(RGB)x320
Outline Size
31.82x33.83x1.8mm
Active Area
27.744x27.744mm
View Direction
All O'clock
Color Depth
262K/16.7M
Interface
MIPI 1 Lane
Driver IC
ST7796S
Backlight
3LEDs, 60mA, 3.2V
Surface Lumiannce
280nits
Operating Voltage
3.3V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Application
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8",
3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Packing & Delivery
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Customer Photos
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface
Related Products
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface

TST09603A

mini size lcd display 0.96inch lcd for meter application 80x160 spi interface all o'clock
Square Ips Lcd Panel 1.54inch 320x320 Resolution MIPI 1Lane Interface

TST108101

round screen lcd 240x210 1.08inch ips tft panel lcd display all o'clock with spi interface
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
