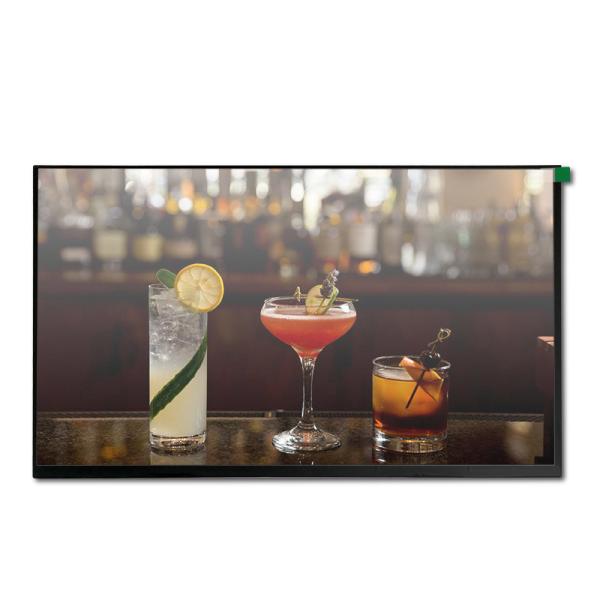

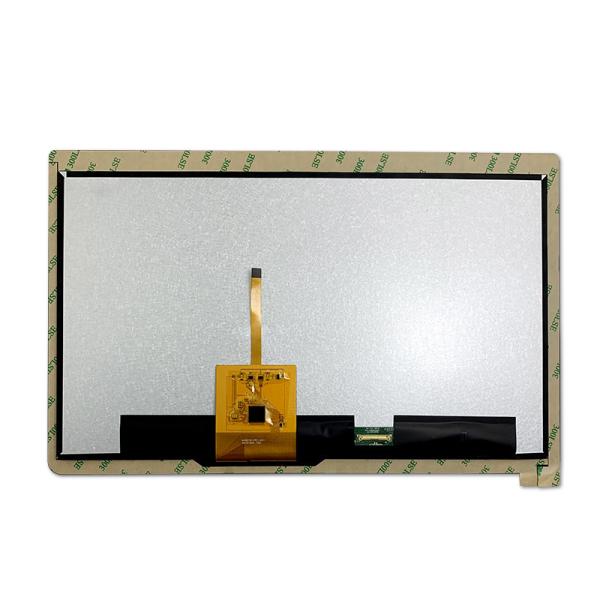

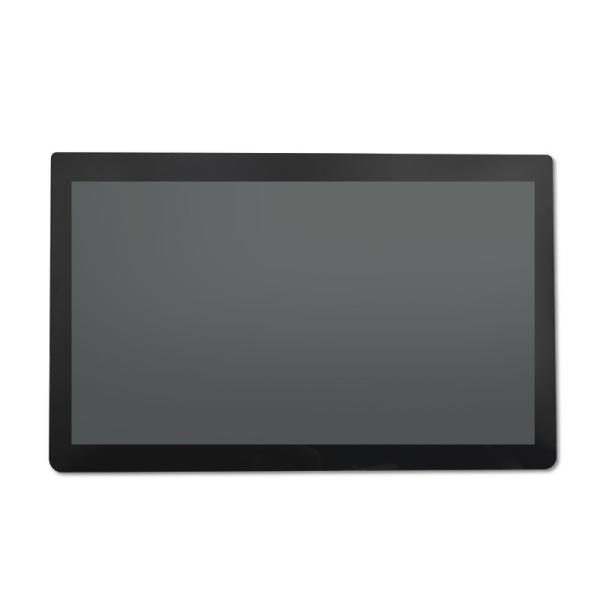

TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
13.3 inch EDP FHD 1920*1080 IPS lcd display
depends on your quantities
Supply Ability :
50000 Piece/Pieces per Month 13.3 inch EDP FHD 1920*1080 IPS lcd display
MOQ :
Negotiable
Price :
Negotiable
Type :
IPS TFT, TFT LCD
Display Size :
13.3 inch
Supplier Type :
manufacturer
Resolution :
1920*1080
Size :
13.3
Interface :
EDP
Viewing Angle :
ALL
Brightness :
300cd/m2
Outline Dimension :
306.20x190.62x2.50
Product Name :
13.3 inch tft lcd
Application :
Industrial Application
Display mode :
Transmissive
Port :
Shenzhen/Hong Kong
Description
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
1920*1080 TTL EDP 13.3 inch ips screen tft lcd display module panel
Item
13.3 inch TFT LCD display
Model name
TST133FHPD-01
Display Mode
Normally White,Transmissive
Resolution
1920xRGBx1080
Technology Type
a-Si TFT active matrix
Driver IC
HX8282+HX8696
Pixel Configuration
R.G.B. Vertical Stripe
Outline Dimension
306.20x190.62x2.50
Active Area(mm)
293.76x165.24
Interface
EDP
Viewing Direction
ALL
Surface treatment:
Anti-Glare
Backlight Type
1-LED white color
Operating Temperature
-20~70°C
Storage Temperature
-30~+80°C
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
More detailed datasheet can be provided! Click here to contact us!
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
What TSD has?
1)TFT:
0.96''-32''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2)Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
About us
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
Production Process
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
Application
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
Exhibition & Certificate
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
Packing & Delivery
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
TTL EDP TFT LCD Screen 13.3 Inch 1920x1080 Resolution Transmissive
