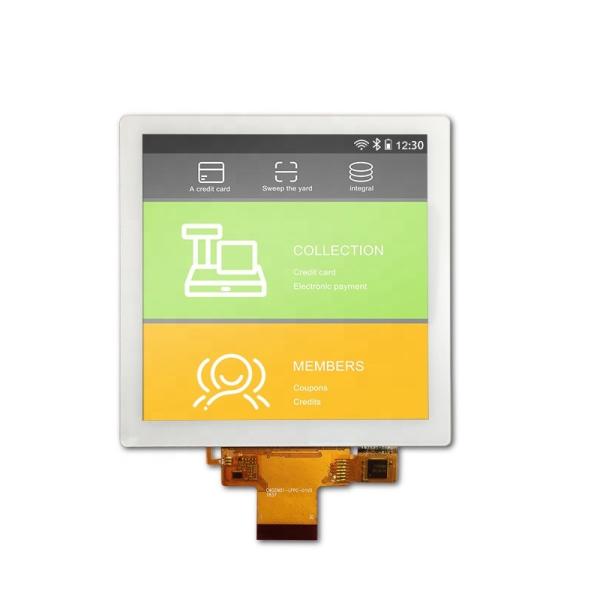

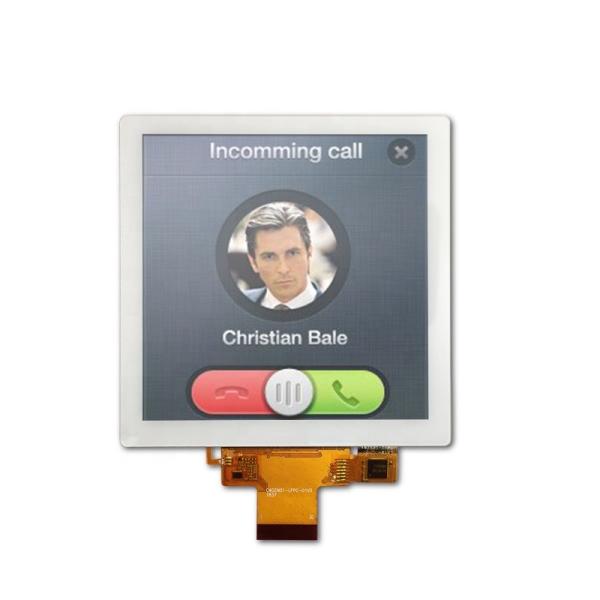

720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
Specifications
Place of Origin :
Guangdong, China
Model Number :
TST040WVBS-25C
Brand Name :
TSD
Packaging Details :
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
5200000 Piece/Pieces per Month
MOQ :
Negotiable
Price :
Negotiable
Type :
IPS LCD, TFT Display
Display Size :
4.0inch
Supplier Type :
Manufacturer
Resolution :
720x720
Outline Dimension :
84x84x2.66mm
Active Area :
71.93x71.93mm
Viewing direction :
All
Driver IC :
ST7703
Brightness :
330 Cd/m2
Interface Type :
MIPI
Panel Type :
IPS LCD Panel
TP/Lens :
With CTP(FT6336U)
Port :
Shenzhen/Hong Kong
Description
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
One stop service 720x720 4.0 inch MIPI Interface lcd screen display lcd touch screen module
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
Item
specification
Display Mode
4.0''/α-SiTFT/IPS/Transmissive
/Normally Black
Part NO.
TST040WVBS-25C
Resolution
720x(RGB)x720
Outline Size
84(H)x84(V)x2.66(T)mm
Active Area
71.93x71.93mm
View Direction
All
Display Colors
16.7M
Interface
4-Line MIPI
Driver IC
ST7703
Backlight
8LEDs, 40mA, 12.4V
Surface Lumiannce
330nits
Operating Voltage
3.3V
TP/Lens
With CTP(FT6336U)
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
About us
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
Application
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2)Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
Customer Photos
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
Packing & Delivery
720x720 4 Inch Tft Lcd Module , Mipi Dsi Touch Screen ST7703 Driver
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
