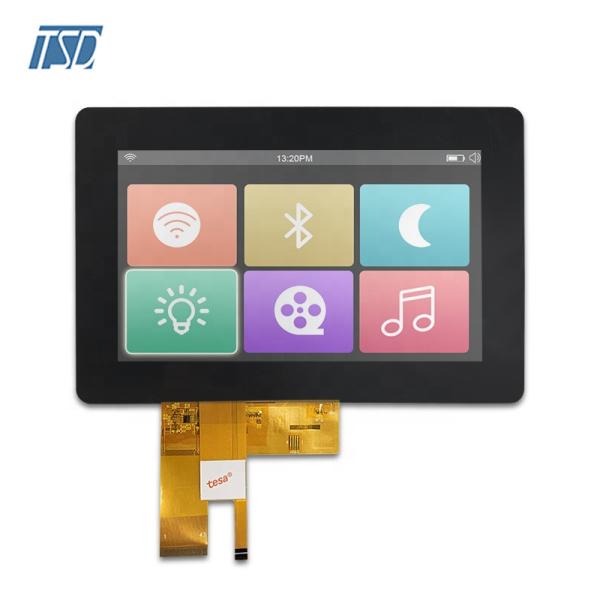

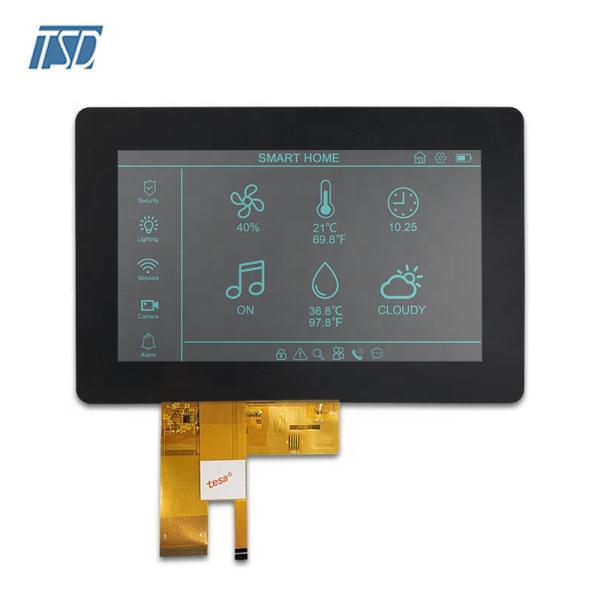

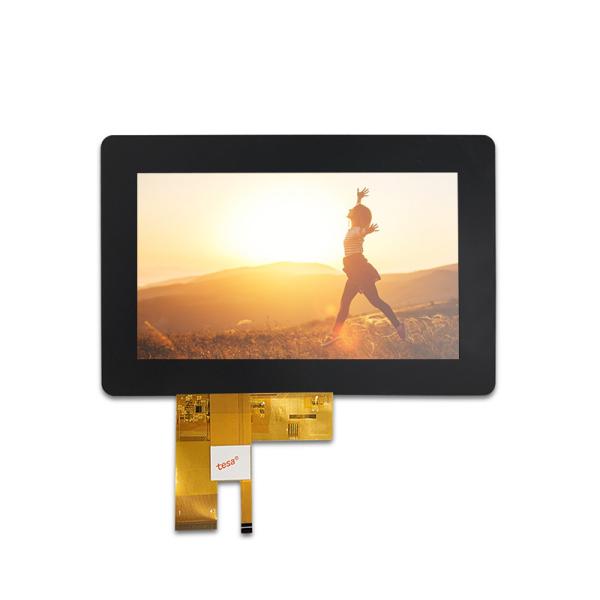

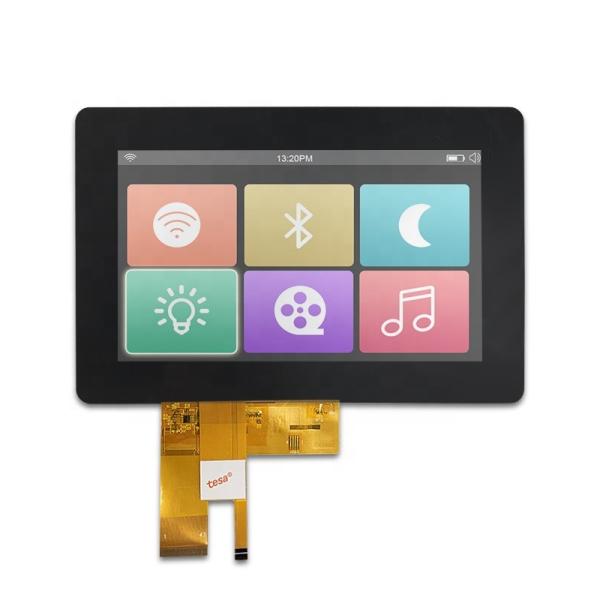

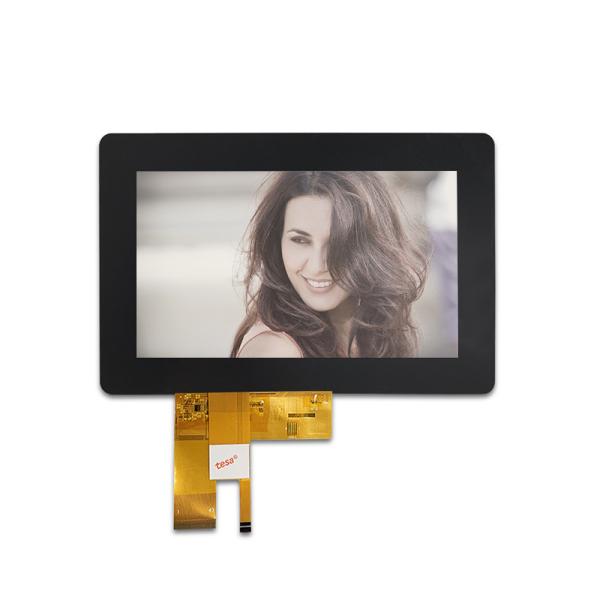

OEM 7 Inch Hdmi Touch Screen , capacitive lcd display 60mA 22.4V Backlight

Specifications

Place of Origin :

Guangdong, China

Brand Name :

TSD

Packaging Details :

Packed in anti-static bag each,a certain quantity in one carton

Supply Ability :

50000 Piece/Pieces per Month

MOQ :

Negotiable

Price :

Negotiable

Type :

TFT LCD Module Screen

Display Size :

7.0inch

Resolution :

800x480

Outline Dimension :

190.08x121.92x5.05mm

Active Area :

153.84x85.63mm

TP/Lens :

CTP(FT5446)

Interface Type :

RGB 24bit

Backlight :

21LEDs, 60mA, 22.4V

Viewing direction :

12 O'clock

Brightness :

400-450 Cd/m2

Driver IC :

EK9716BD/BD3&EK73002ACGB

Tpye :

TFT LCD

Port :

Shenzhen/Hong Kong

Description

Customized TFT LCD Display Panel 800*480 Capacitive Touch 7 Inch LCD Module Screen

Item	Specification
Display Mode	7.0''/α-Si TFT/TN/ Transmissive/Normally White
Part NO.	TST070WVBE-32C
Resolution	800x(RGB)x480
Outline Size	190.08x121.92x5.05mm
Active Area	153.84x85.63mm
View Direction	12 O'clock
Color Depth	16.7M
Interface	RGB-24bit
Backlight	21LEDs, 60mA, 22.4V
Surface Lumiannce	400-450nits
Surface Treatment	Anti-glare
TP/Lens	CTP(FT5446)
Operating Voltage	3.3V
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

More detailed datasheet can be provided! Click here to contact us!

About us

Who is TSD?

TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.

1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.

Application

What TSD has?

1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2)Passive:

display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:

we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:

Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...

Certifications

Customer Photos

Packing & Delivery

FAQ

Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
