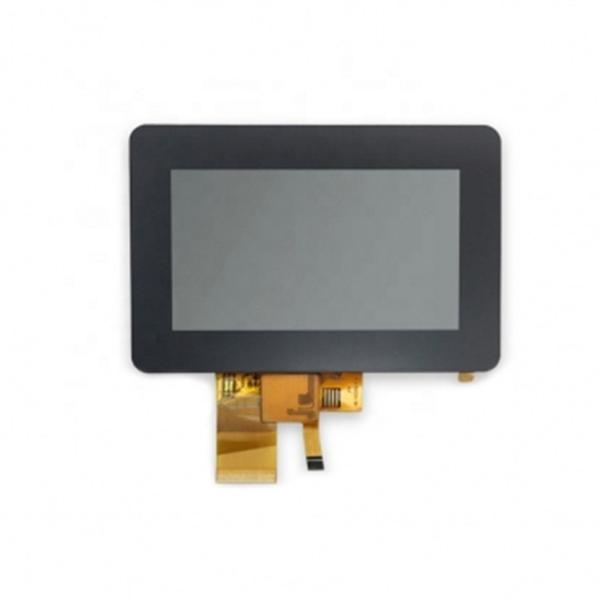

Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface

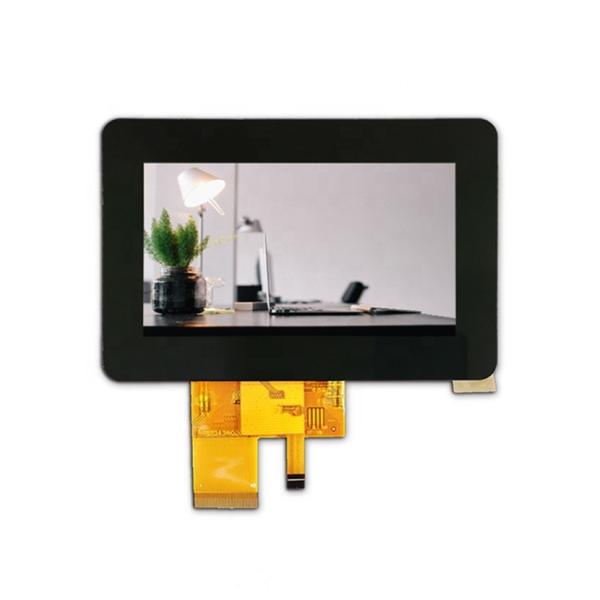

Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Specifications
Place of Origin :
Guangdong, China
Model Number :
TST043WQBS-37C
Brand Name :
TSD
Packaging Details :
Low price 480x272 4.3inch Lcd Display Panels with Capacitive Touch Screen
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Display Size :
4.3inch
Type :
TFT Display
Resolution :
480x272
Outline Dimension :
123.04x84.46x4.63mm
Viewing direction :
12 O'clock
Driver IC :
ST7282
Active Area :
95.04x53.86mm
Brightness :
720-800 Cd/m2
Touch panel :
CTP
Interface Type :
TTL(RGB-24bit)
Backlight :
16LEDS
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
Product Description
Low price 480x272 4.3inch Lcd Display Panels with Capacitive Touch Screen
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Item
specification
Display Mode
4.3''/TN/Transmissive/Normally White
LCD Type
α-Si TFT
Part NO.
TST043WQBS-37C
Resolution
480x(RGB)x272
Outline Size
123.04(H)x84.46(V)x4.63(T)mm
Active Area
95.04x53.86mm
View Direction
12 O'clock
Color Depth
16.7M
Interface
TTL(RGB-24bit)
Driver IC
ST7282
Backlight
16LEDs, 40mA
Surface Treatment
Hardness:6H
Surface Lumiannce
720-800nits
Input Voltage
3.3V
With/Without TP
With CTP(FT5316DME)
Operating Temperature
-20℃~70℃
Storage
Temperature
-30℃~80℃
About us
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Application
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2) Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Packing & Delivery
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Customer Photos
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
Capacitive 4.3 Inch Touch Screen 16LEDS Backlight TTL Interface
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
