Thin Wall Weld Seam Welder Cylinder Seam Welder Longitudinal 2000mm/Min
Thin Wall Weld Seam Welder Cylinder Seam Welder Longitudinal 2000mm/Min
Thin Wall Weld Seam Welder Cylinder Seam Welder Longitudinal 2000mm/Min
Thin Wall Weld Seam Welder Cylinder Seam Welder Longitudinal 2000mm/Min
Thin Wall Weld Seam Welder Cylinder Seam Welder Longitudinal 2000mm/Min
Thin Wall Weld Seam Welder Cylinder Seam Welder Longitudinal 2000mm/Min
Specifications
Brand Name :
Lemar
Model Number :
ZF-1300
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
500-5000
Payment Terms :
T/T,L/C,D/P,D/A,Western Union
Supply Ability :
50pcs/month
Delivery Time :
7 days
Packaging Details :
Wooden package
Weld Length :
1300mm
Min welding diameter :
80-800mm
Welding speed :
0-2000mm/min
Welder :
TIG MIG MAG LASER PAW
Suitable thickness :
0.5-6mm
Voltage :
380v 50hz
Weight :
Around 750kg
Duration :
7 days
Description

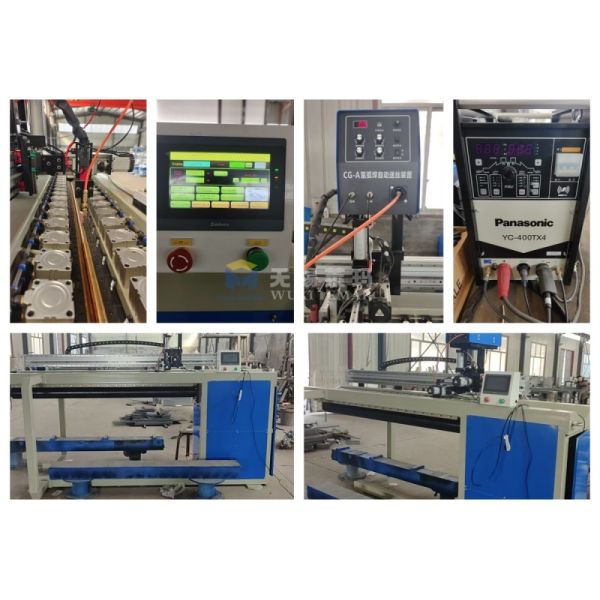

ZF-1300 Tank Body Thin Wall Cylinder Seam Welder
The ZF-1300 Longitudinal Seam Welder is an automated machine specifically designed for longitudinal butt welding of cylindrical or conical shells. It primarily employs TIG welding or MAG welding processes and is widely used for welding thin-walled workpieces in industries such as food machinery, hardware and home appliances, automotive exhaust pipes, water heater liners, and chemical tanks.
Key Features & Benefits
  • Simplified operation for mass production - complete the entire process from workpiece clamping to welding with minimal operator input
  • Welding mandrel supports back shielding gas (argon) for high-quality welds with single-sided welding and double-sided forming
  • Back surface remains smooth and oxidation-free, providing aesthetic finish and improved corrosion resistance
  • DC servo motor-driven welding torch with precision gear and rack transmission ensures smooth operation and high trajectory repeatability
  • Consistent weld texture and uniform results across production runs
Technical Specifications
Specification Value
Effective welding length ≤1300mm
Welding diameter 80-1000mm
Welding thickness 0.3-6mm
Welding head moving speed 0-2000mm/min
Welding torch adjust stroke Y=100mm, Z=100mm
Suitable welding process TIG, PAW, MIG, MAG, SAW, LASER welder
Input power AC220V 1P or 380V 3P
Walking drive DC servo motor + rack and pinion drive
We offer straight seam welding machines in various lengths from 300mm to 2500mm to accommodate your specific manufacturing requirements.
Thin Wall Weld Seam Welder Cylinder Seam Welder Longitudinal 2000mm/Min Thin Wall Weld Seam Welder Cylinder Seam Welder Longitudinal 2000mm/Min
Trusted Manufacturing Partner
Wuxi Lemar Machinery Equipments Co., Ltd. provides stable, efficient, and highly customizable seam welding equipment with over 15 years of industry experience. As a high-tech enterprise, we focus on R&D and manufacturing of automatic welding and cutting equipment.
