Longitudinal Automatic Seam Welding Machine 500mm Weld Length For TIG Welding
Longitudinal Automatic Seam Welding Machine 500mm Weld Length For TIG Welding
Longitudinal Automatic Seam Welding Machine 500mm Weld Length For TIG Welding
Longitudinal Automatic Seam Welding Machine 500mm Weld Length For TIG Welding
Longitudinal Automatic Seam Welding Machine 500mm Weld Length For TIG Welding
Longitudinal Automatic Seam Welding Machine 500mm Weld Length For TIG Welding
Specifications
Brand Name :
Lemar
Model Number :
ZF-500
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
500-5000
Payment Terms :
T/T,L/C,D/P,D/A,Western Union
Supply Ability :
50pcs/month
Delivery Time :
7 days
Packaging Details :
Wooden package
Weld Length :
500mm
Min welding diameter :
50-800mm
Welding speed :
0-2000mm/min
Welder :
TIG MIG MAG LASER PAW
Suitable thickness :
0.5-6mm
Voltage :
380v 50hz
Weight :
Around 750kg
Duration :
7 days
Description
ZF-500 Longitudinal Seam Welding Machine
Designed for TIG and LASER welding of 0.5-6mm cold-rolled thin plates, the ZF-500 longitudinal seam automatic welding machine offers precision welding solutions for various industrial applications.
Machine Overview
The ZF-500 longitudinal seam automatic welding machine features a maximum effective welding length of 500 mm. This specialized equipment is engineered for automatic welding of straight butt welds on structures including thin-walled cylinders, conical cylinders, flat plate splices, and square boxes with one open end.
Technical Specifications
Specification Value
Effective welding length ≤500mm
Welding diameter 50-800mm
Welding thickness 0.3-6mm
Welding head moving speed 0-2000mm/min
Welding torch adjust stroke Y=100mm, Z=100mm
Suitable welding process TIG, PAW, MIG, MAG, SAW, LASER welder
Input power AC220V 1P or 380V 3P

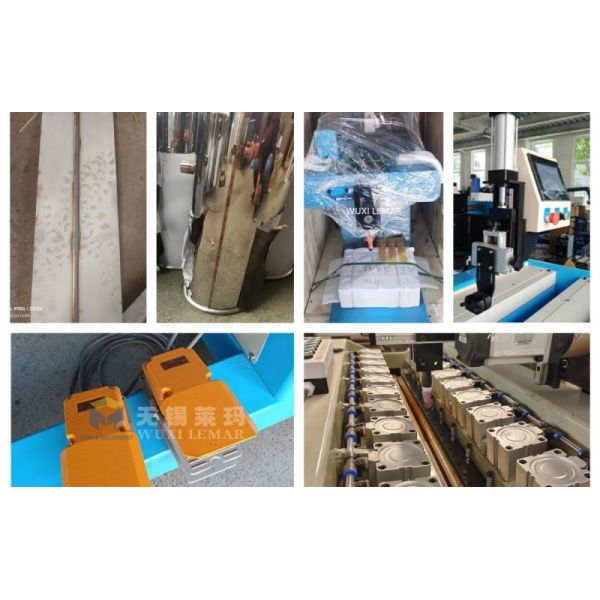

Longitudinal Automatic Seam Welding Machine 500mm Weld Length For TIG Welding
Key Features
  • Precision Straight Seam Welding: High-precision piano-key clamping structure ensures uniform pressure on sheet metal during welding, effectively suppressing welding deformation
  • Versatile Application: Suitable for thin-walled stainless steel pipes, thick-walled pressure vessels, and various industrial welding requirements
  • Process Flexibility: Compatible with multiple welding processes including TIG, PAW, MIG, MAG, SAW, and LASER welding
Trusted Manufacturing Partner: Wuxi Lemar Machinery Equipments Co., Ltd. provides stable, efficient, and highly customizable seam welding equipment with over 15 years of industry experience. As a high-tech enterprise, we focus on R&D and manufacturing of automatic welding and cutting equipment.
