Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Specifications
Effective Welding Length :
2000mm (2m)
Product Name :
2000mm Longitudinal Seam Welder
Price :
500-1000USD
Model Number :
Zfh2000
Welding Mode :
TIG / MIG / Plasma Optional
Payment Terms :
L/C,D/A,D/P,T/T,
Certification :
CE
Operation Mode :
Automatic Continuous Welding
Control System :
PLC Touch Screen Automatic Control
Delivery Time :
10-20 work days
Frequency Range :
High Frequency
Input Voltage :
Automatic Continuous Welding Current AC Input Voltage 380V 50Hz, Custom 220V/415V Available
Packaging Details :
100.00cm * 80.00cm * 120.00cm
Model NO. :
ZFH2000
MOQ :
1
Brand Name :
LEMAR
Applicable Workpiece :
Round Tank, Cylinder, Straight Seam Metal Barrel
Supply Ability :
500 units/month
Place of Origin :
WUXI
Description
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Product Overview

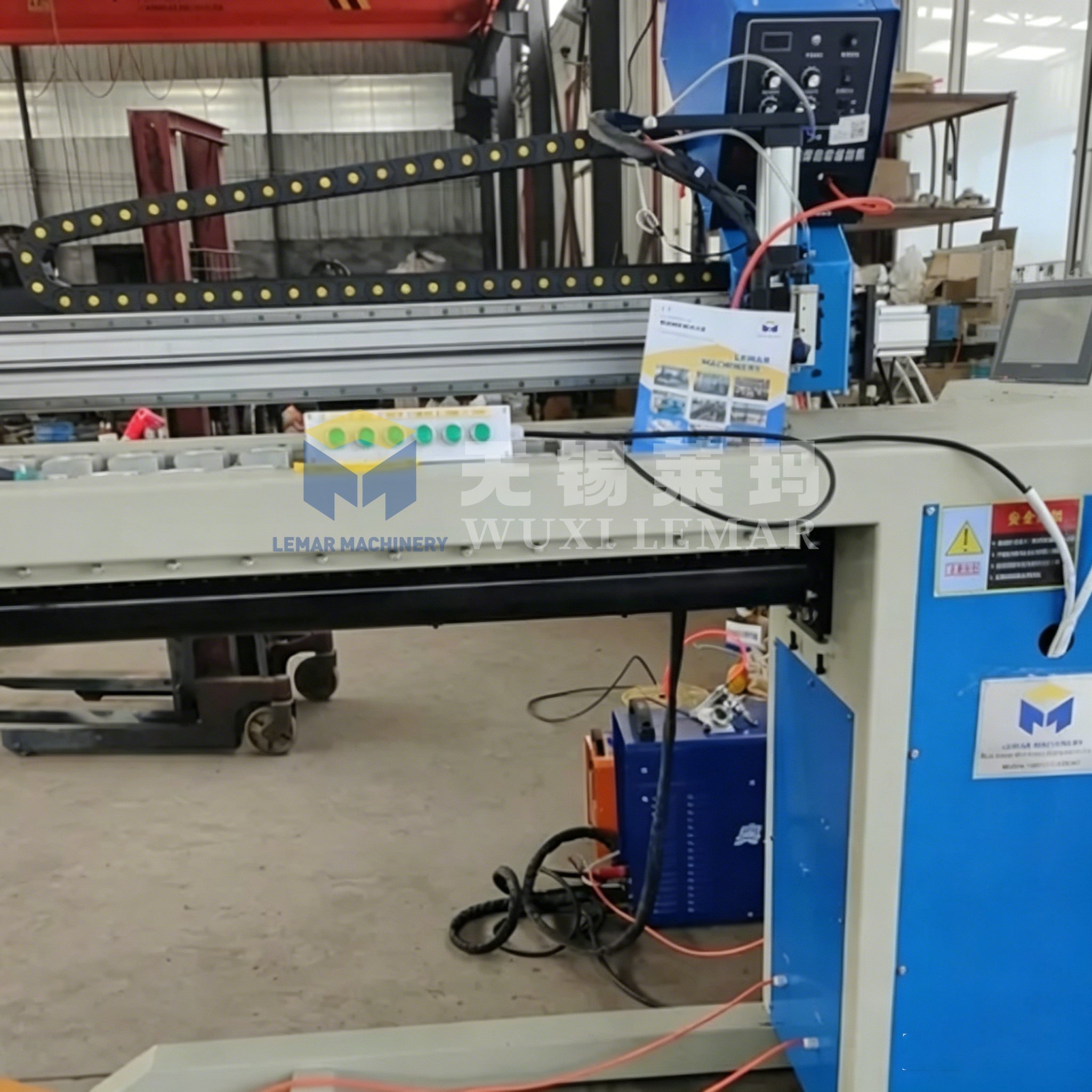

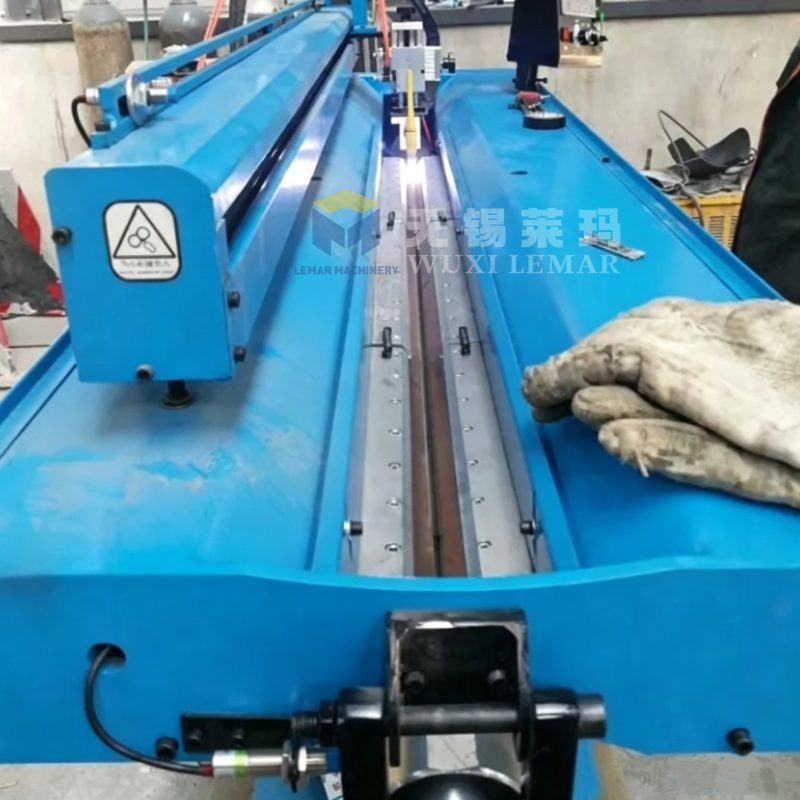

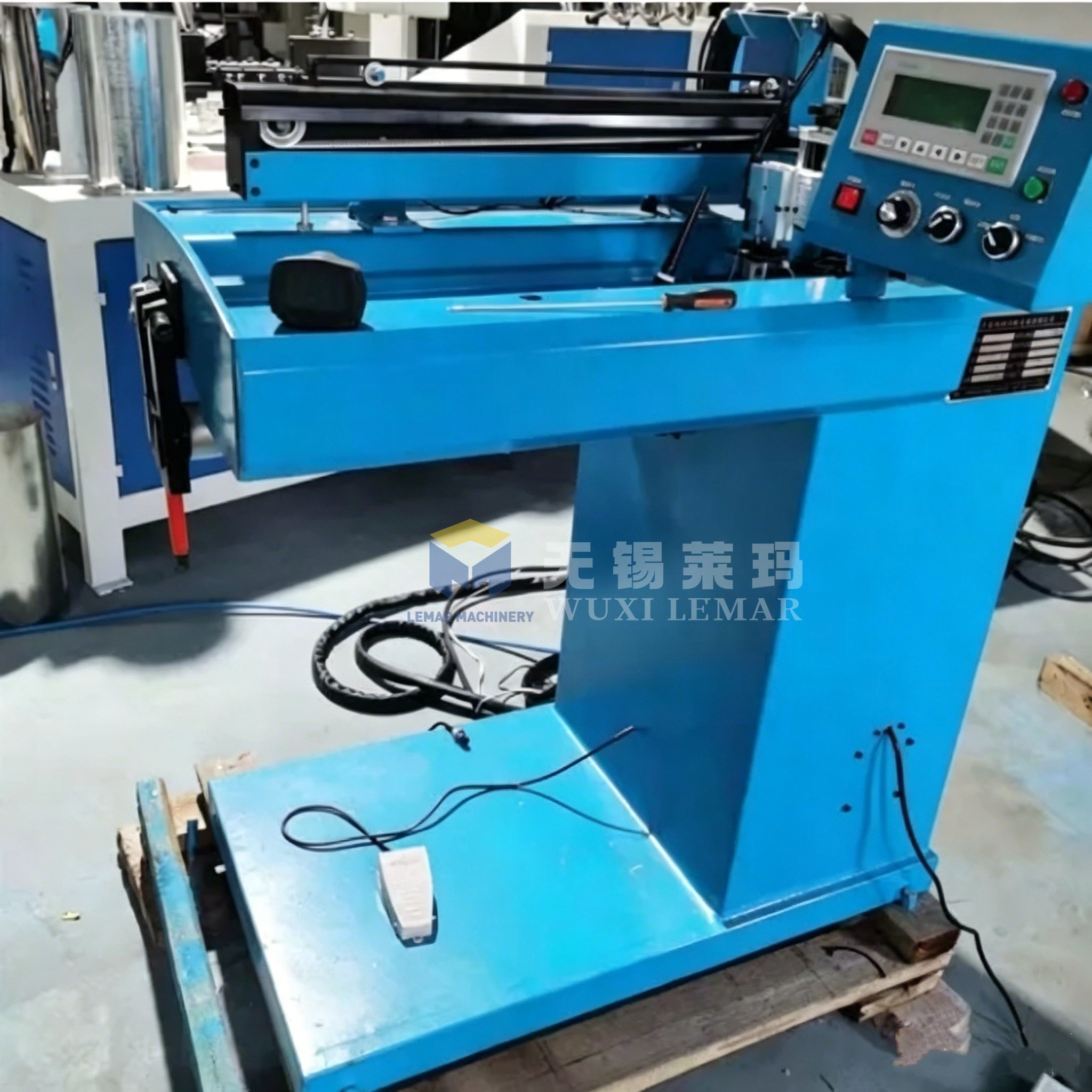

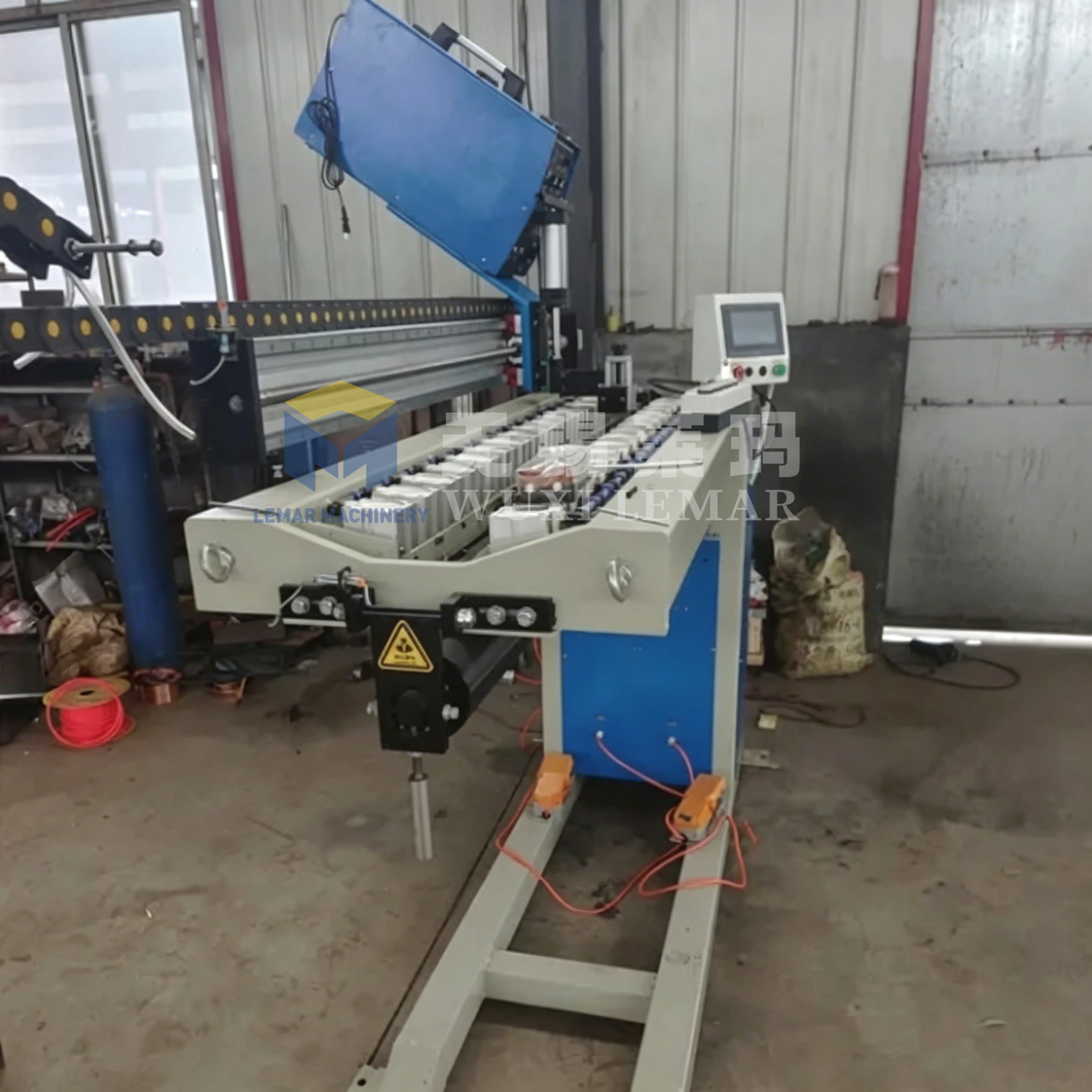

The ZF-2000 longitudinal seam welder is professional automatic welding equipment specially designed for 2000mm long straight seam welding. It solves the welding difficulty of long-size metal plates and cylindrical workpieces. Adopting heavy-duty frame and high-precision linear guide rail, the 2000mm straight seam welding machine realizes stable and uniform welding track. Equipped with pneumatic synchronous clamping and circulating water cooling system, it effectively suppresses welding deformation and weld blackening. Widely used in large tanks, ventilation pipes, pressure vessels and long metal cylinder welding production.
Technical Parameters
Item Specification
Product Model ZF-2000 Longitudinal Seam Welder
Effective Welding Length 2000mm
Applicable Workpiece Thickness 0.4mm - 6.0mm
Welding Speed 0.2 - 2.5m/min (Stepless Adjustable)
Clamping Method Pneumatic Key Synchronous Clamping
Welding Process Standard TIG, Optional MIG/Plasma
Cooling System Circulating Water Cooling
Control System PLC + Touch Screen Intelligent Control
Applicable Materials Stainless Steel, Carbon Steel, Aluminum Alloy, Galvanized Sheet
Warranty 1 Year Whole Machine Warranty
Certification CE/ISO Support
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Optional Customization Configuration
  • Automatic wire feeder for thick plate welding
  • Back argon gas protection device
  • Welding torch swing device
  • Arc length automatic tracking system
  • Automatic workpiece centering bracket
  • Extended load-bearing support frame
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Application Scope

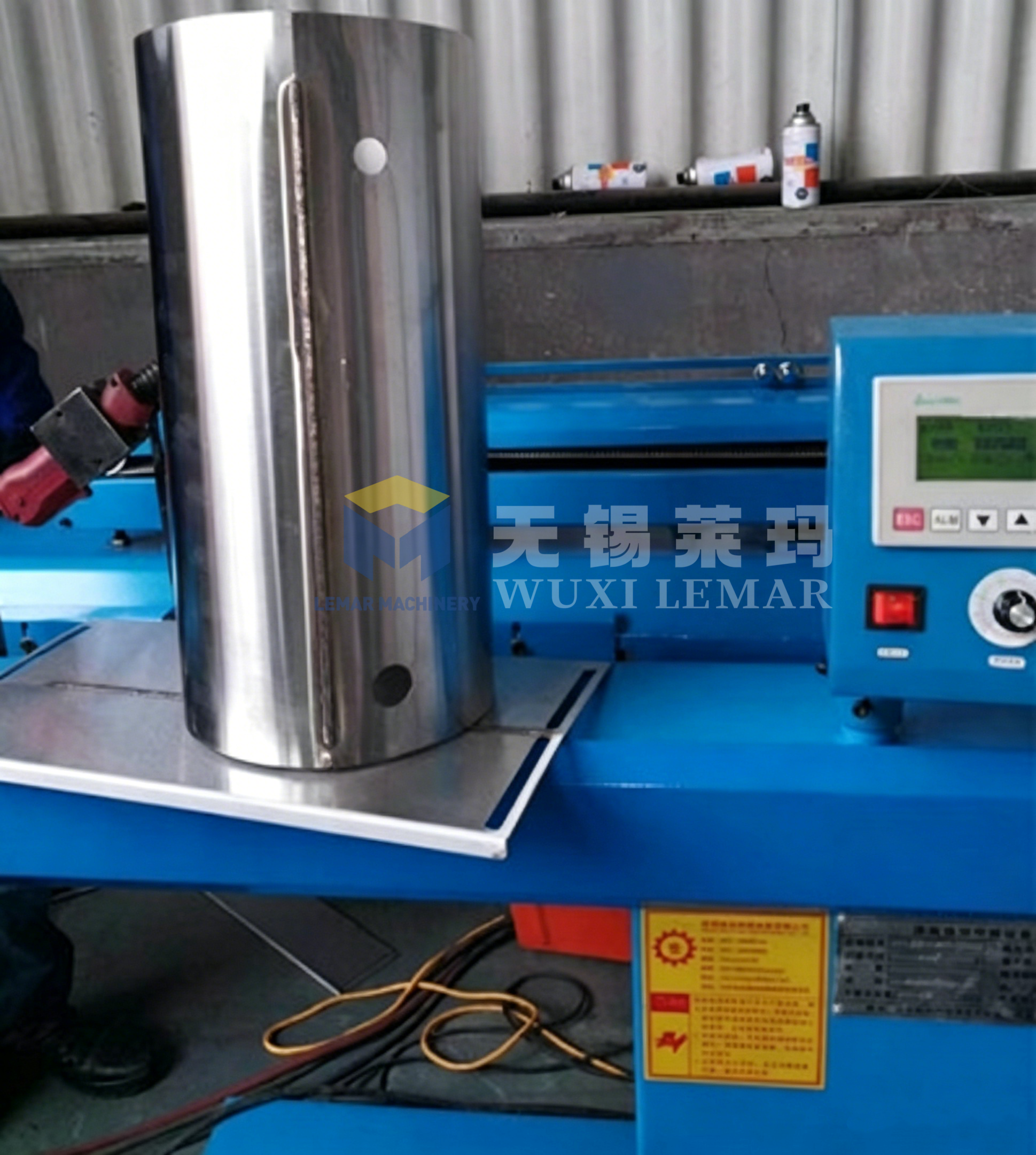

The ZF-2000 longitudinal seam welder is widely used for long straight seam welding of large industrial workpieces:
  • Large stainless steel water tanks, storage tanks and container liners
  • Long ventilation ducts, exhaust pipes and industrial pipe shells
  • Large pressure vessels, fire-fighting equipment accessories
  • Long aluminum alloy and carbon steel structural parts
  • Sanitary equipment, kitchen machinery and large hardware shell parts
Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel Automatic Longitudinal Seam Welder 2000mm Stainless Steel Carbon Steel
Core Advantages
2000mm Ultra-Long Welding Stroke
This 2000mm longitudinal seam welder adopts extended guide rail, supporting max 2000mm long straight seam welding. Ideal for large and long-size metal workpieces with wide application coverage.
Pneumatic Key Clamping, No Deformation
Uniform multi-point pneumatic clamping for 2000mm full welding area. Effectively avoid sheet wrinkling and deformation, greatly improve welding yield and flatness.
Water-Cooled Welding, Anti-Oxidation

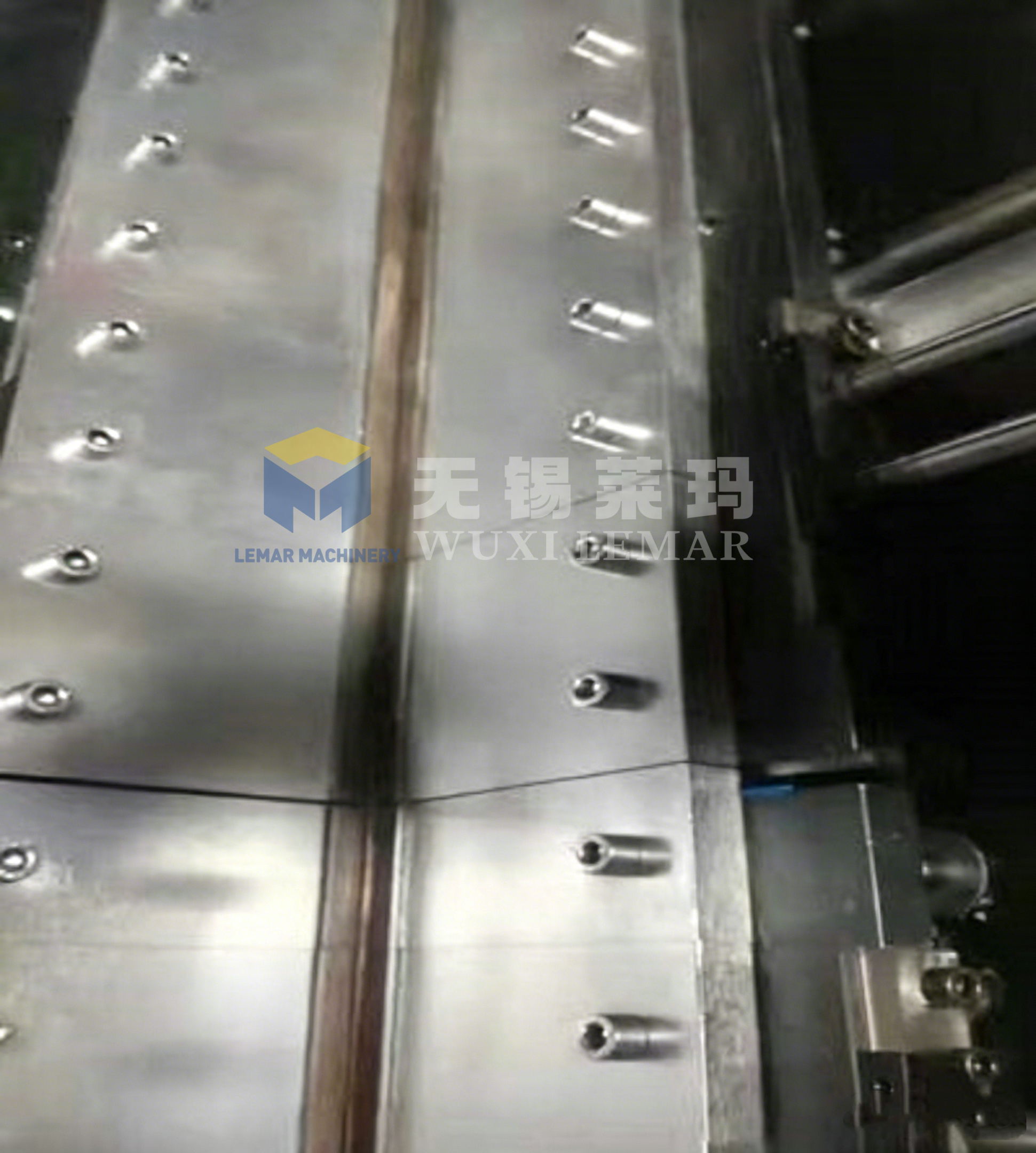

Equipped with water-cooled copper backing strip, optional back argon protection. The 2000 longitudinal seam welder delivers smooth, bright welds with no black oxidation, saving post-polishing cost.
PLC Intelligent & Easy Operation
Touch screen digital control with storable welding parameters. One-key parameter switching for different workpieces, simple operation and high production efficiency.
Multi-Material & Multi-Process Adaptation
The 2000mm straight seam welding machine supports TIG, MIG and plasma welding, suitable for stainless steel, carbon steel, aluminum alloy and galvanized sheet.
Frequently Asked Questions
What is the maximum welding length of this machine?
The standard effective welding length is 2000mm, which can meet most long straight seam welding needs.
Can this longitudinal seam welder weld thick plates?
The applicable thickness is 0.4-6mm. We can configure enhanced pressure and welding power for thick plate workpieces.
Is customized service available?
Yes, we support customized welding stroke, clamping range and functional accessories for the ZF-2000 model.
What after-sales support is provided?
1-year warranty, lifelong technical support, English operation tutorials and remote online debugging service.
