Specifications
Supply Ability :
500 units/month
Frequency Range :
High Frequency
Model Number :
Zfh1000
Welding Metal :
Stainless Steel, Iron, Aluminum, Brass
MOQ :
1
Delivery Time :
10-20 work days
Arc Welding Power Source :
TIG Welding/CO2 Welding/Plasma Arc Welding
Welding Method :
Longitudinal Straight Seam Welding Machine
Payment Terms :
L/C,D/A,D/P,T/T,
Speed Control :
VFD
Price :
500-1000USD
Arc Welding Power Source TIG Welding/CO2 Welding/Plasma Arc Welding Current AC Input Voltage :
380V-440V
Certification :
CE
Compression Method :
Key Press Compression
Brand Name :
LEMAR
Model NO. :
ZFH1000
Place of Origin :
WUXI
Suitable Welding Wire Diameter :
1.0/1.2/1.4/1.6mm

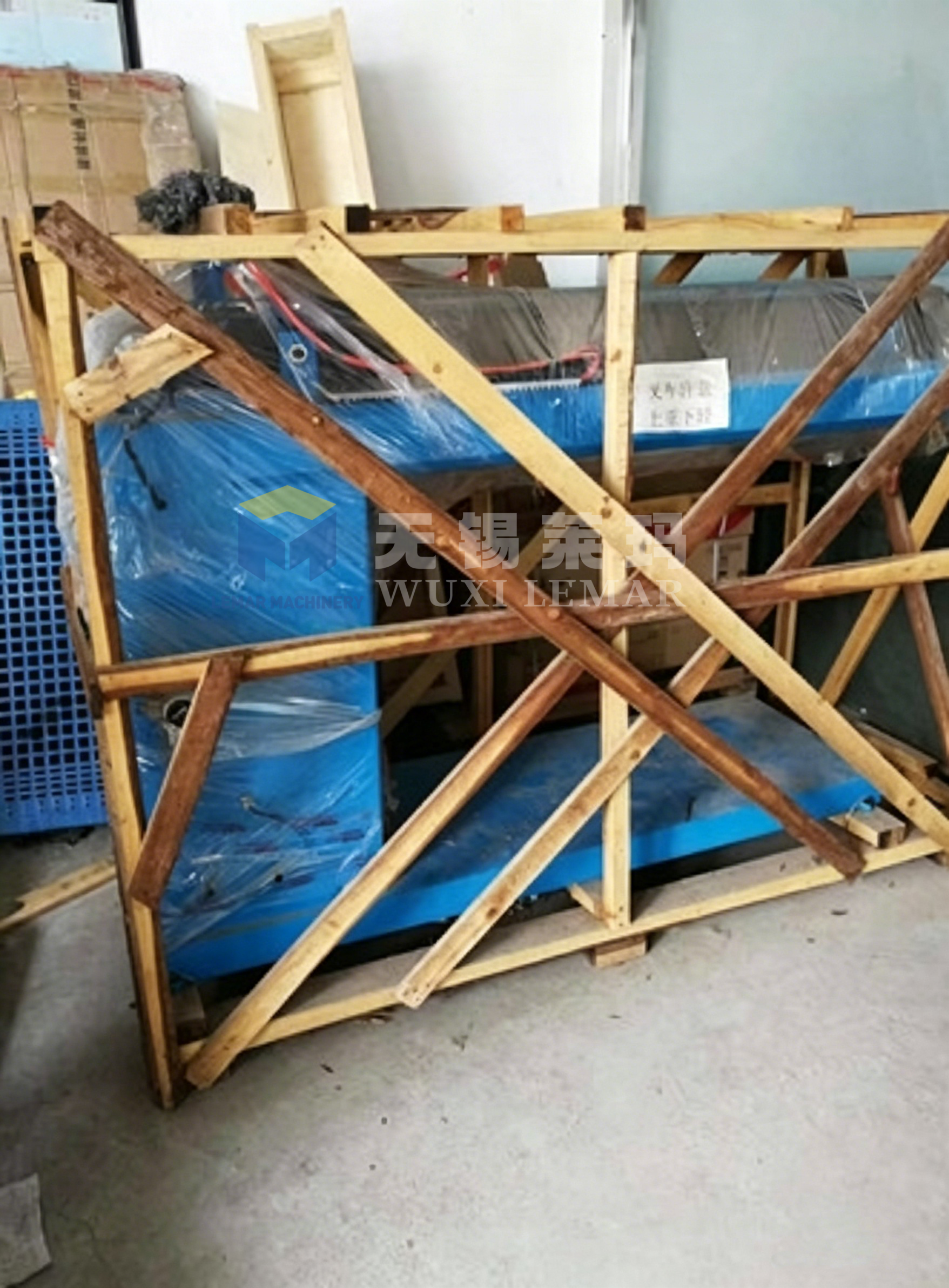

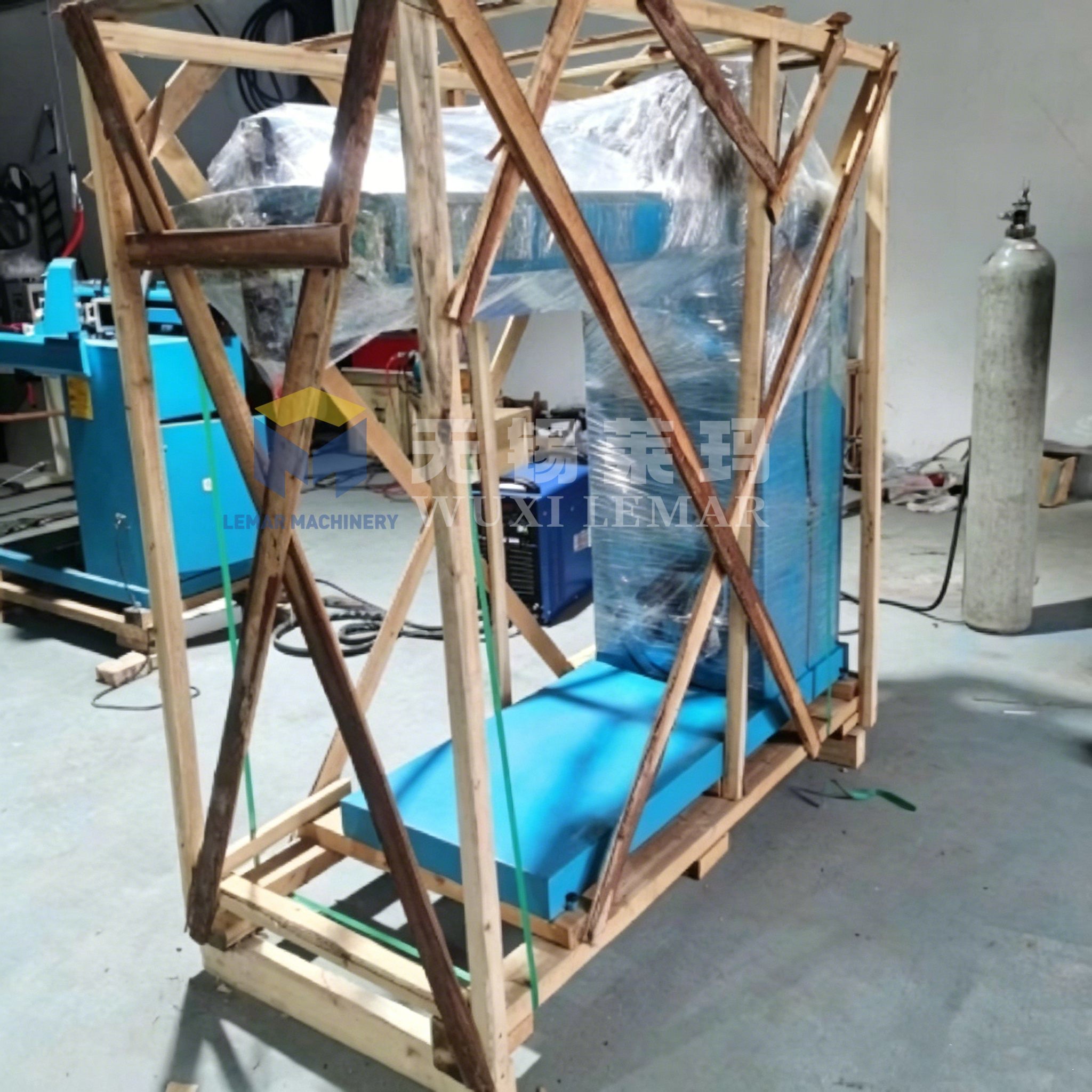

Packaging Details :
100.00cm * 80.00cm * 120.00cm
Description
ZFH1000 Straight Seam Welding Machine | Automatic Longitudinal Seam Welder for Stainless Steel Cylinder Tank Barrel
1000mm Straight Seam Welding Machine | Automatic Longitudinal Seam Welder for Stainless Steel Cylinder Tank Barrel

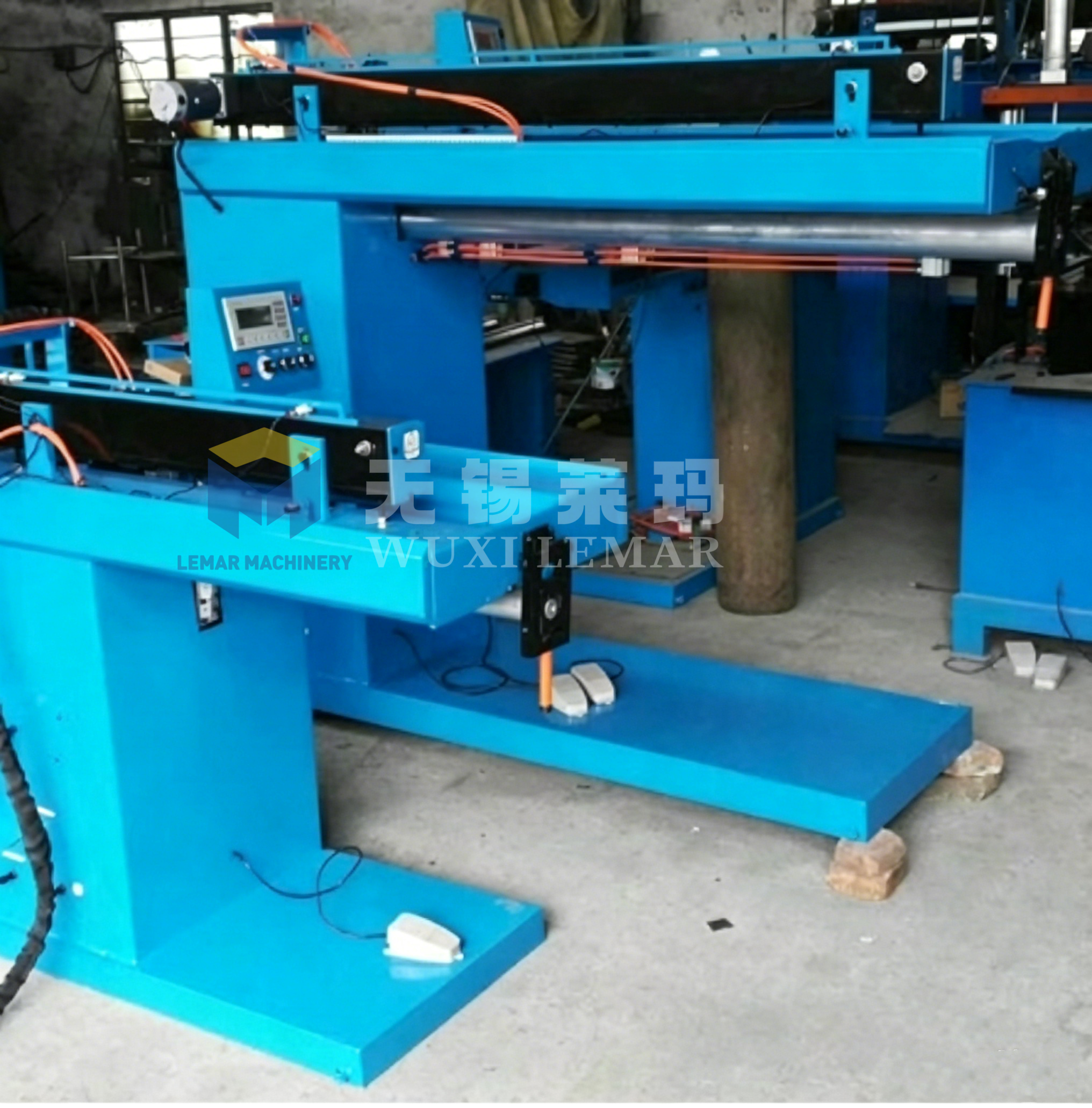

The ZFH1000 straight seam welding machine is professional automatic longitudinal welding equipment specially designed for cylindrical blanks, metal barrels, and flat sheet butt welding. It features a cantilever thick steel frame with stress relief treatment, equipped with pneumatic key pressing fixture and copper lining back gas protection mandrel, achieving flat, uniform longitudinal welds without secondary polishing.

This machine supports TIG argon arc, MIG, and plasma welding processes, making it suitable for thin stainless steel, carbon steel, copper, and aluminum workpieces. With an effective welding length of 1000mm, it is widely used in water tank, milk can, fire extinguisher cylinder, and heat exchanger tube manufacturing.

Technical Specifications
Item Specification
Model ZFH1000 Straight Seam Welding Machine
Effective Welding Length 1000mm
Welding Process TIG Argon Arc / MIG / Plasma (Optional)
Clamping Mode Pneumatic Key Press Fixture
Back Protection Copper Mandrel Argon Back Gas
Applicable Plate Thickness 0.3-6mm
Workpiece Diameter Range Φ80-Φ800mm
Welding Speed 60-1200mm/min stepless adjustment
Control System PLC Digital Control Panel
Input Voltage 380V 3Phase
Machine Frame Thick Welded Steel Cantilever
1000mm Straight Seam Welding Machine | Automatic Longitudinal Seam Welder for Stainless Steel Cylinder Tank Barrel 1000mm Straight Seam Welding Machine | Automatic Longitudinal Seam Welder for Stainless Steel Cylinder Tank Barrel
Core Advantages
  • Cantilever Deformation-Free Frame: Whole thick steel plate welding structure with aging treatment ensures long-term continuous operation without bending deformation.
  • Adjustable Pneumatic Key Press Clamping: Even pressing force along welding seam with adjustable key spacing effectively restrains thermal deformation during welding.
  • Copper Mandrel Back Gas Protection: Enables single-side welding with double forming, producing smooth inner welds without oxidation and improving product tightness.

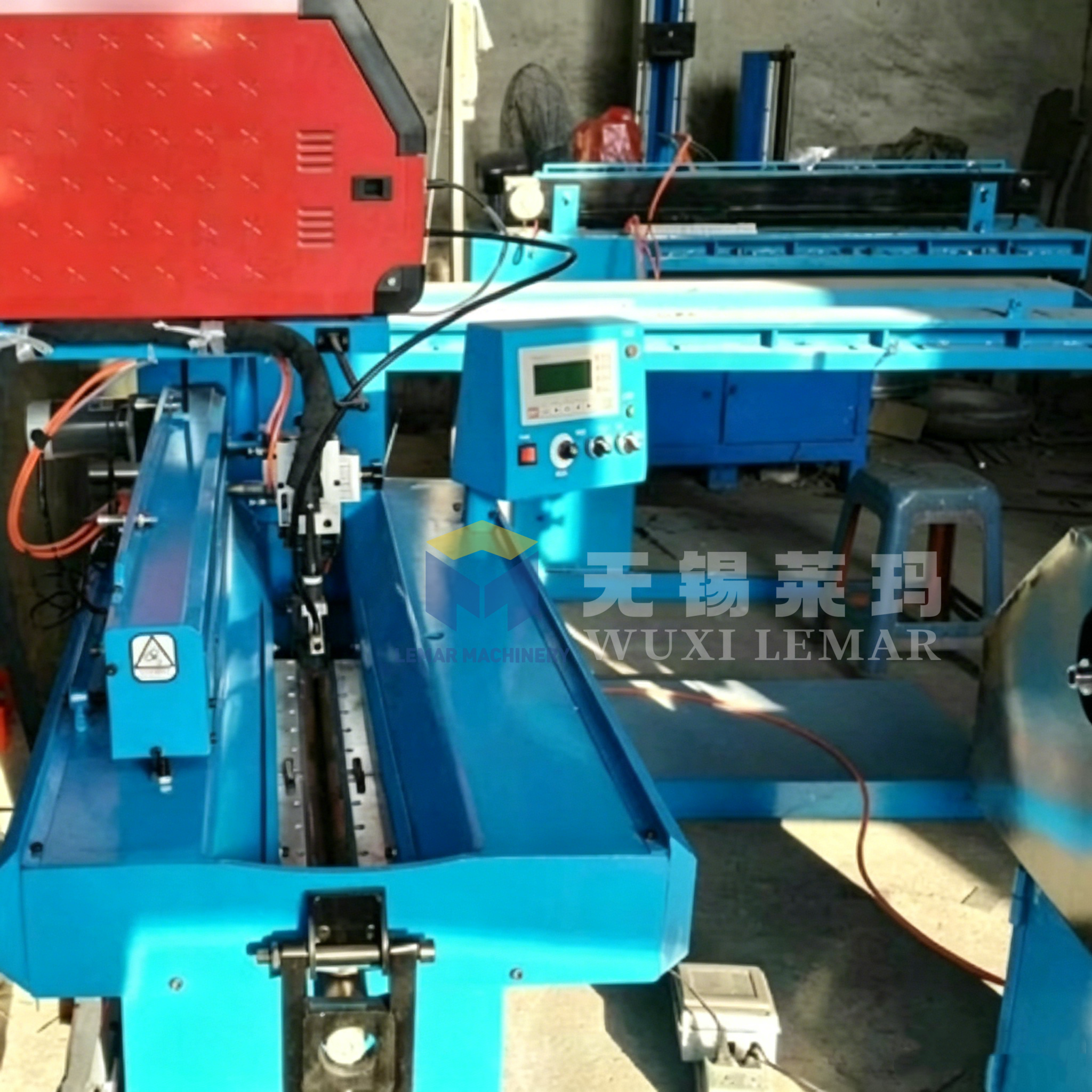

  • Stable Servo Welding Torch Travel: Precision linear guide with rack drive ensures uniform welding speed and consistent weld bead appearance.
  • Integrated Cable Drag Chain Design: All air pipes and wires hidden inside drag chain prevent breakage and facilitate neat, easy maintenance.

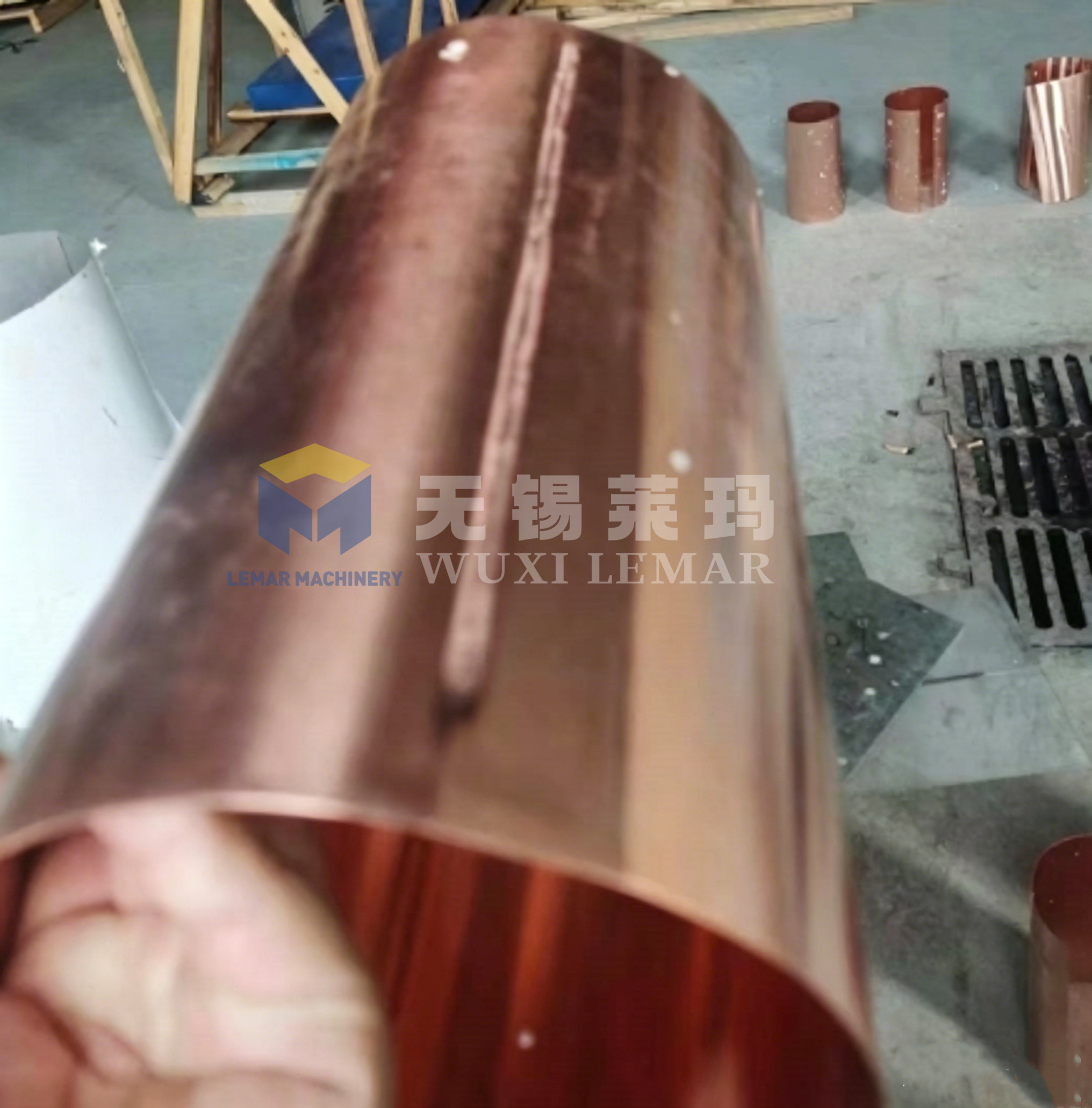

  • Multi-Material Compatibility: Compatible with stainless steel, carbon steel, copper, and aluminum thin plate cylinder workpieces with customizable mandrel sizes.
Application Range
  • Stainless steel water tank, storage barrel, heat exchanger cylinder production
  • Food dairy industry: milk can, sanitary cylindrical container manufacturing
  • Fire protection: fire extinguisher cylinder longitudinal seam welding
  • HVAC ventilation pipe and small pressure vessel fabrication
  • Hardware copper & aluminum metal drum processing
1000mm Straight Seam Welding Machine | Automatic Longitudinal Seam Welder for Stainless Steel Cylinder Tank Barrel 1000mm Straight Seam Welding Machine | Automatic Longitudinal Seam Welder for Stainless Steel Cylinder Tank Barrel
Working Principle

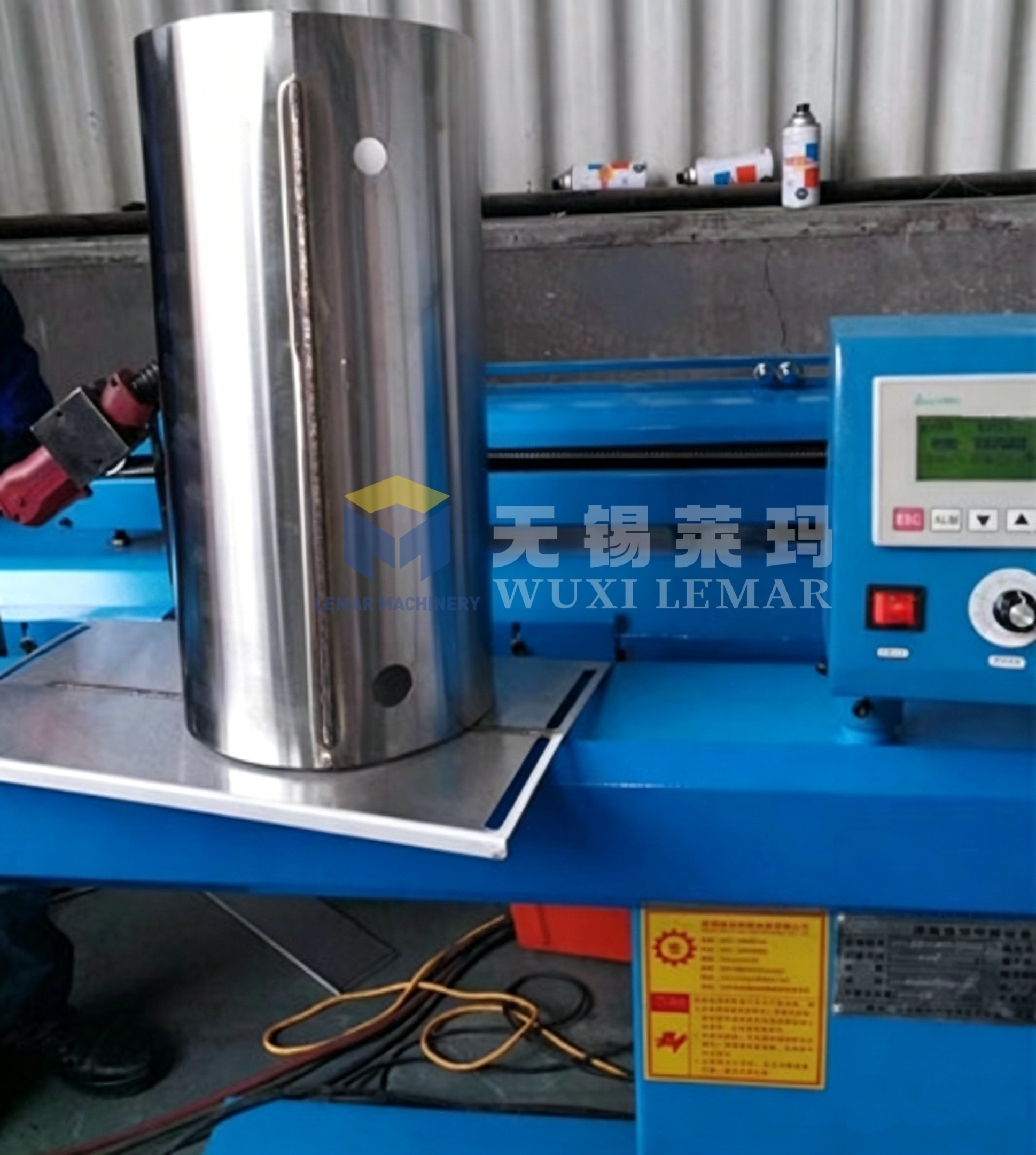

  1. Place rolled cylindrical blank on the positioning mandrel
  2. Start pneumatic key fixture to clamp the welding seam evenly
  3. Set welding speed, current and length on PLC panel
  4. Step foot switch to initiate automatic welding torch movement for full straight seam welding
  5. Torch automatically resets, release fixture and remove finished cylinder
1000mm Straight Seam Welding Machine | Automatic Longitudinal Seam Welder for Stainless Steel Cylinder Tank Barrel 1000mm Straight Seam Welding Machine | Automatic Longitudinal Seam Welder for Stainless Steel Cylinder Tank Barrel
Frequently Asked Questions
What is the maximum effective welding length of ZFH1000?
Standard effective welding length is 1000mm, with customized lengths available.
Can it weld stainless steel and copper cylinders?
Yes, when matched with TIG welding source, it is suitable for stainless steel, copper, and aluminum thin plates.
Does this machine have back gas protection?
Equipped with copper lining mandrel, it supports argon back protection for perfect double-side forming.
Is the clamping force adjustable?
The pneumatic key pressing structure features adjustable spacing and pressure for different thickness workpieces.
