Specifications
Payment Terms :
T/T,D/P,D/A,L/C
Boom Telescopic Speed :
120-1200 mm/Min
Model Number :
HJ2020
Voltage :
380V 3p 50Hz
MOQ :
1
Delivery Time :
10-20 work days
Max Boom-End Load :
100kg
Column Rotation :
±180° Electric Rotation
Packaging Details :
220.00cm * 140.00cm *200.00cm
Price :
500-1000USD
Lifting Speed :
1000 mm/Min
Supply Ability :
500 units/month
Product Structure :
Box-Type Steel Frame
Brand Name :
LEMAR
Model NO. :
HJ2020
Place of Origin :
WUXI
Vertical Stroke :
2000mm
Certification :
CE
Horizontal Stroke :
2000mm
Description
2020 Column & Boom Welding Manipulator Automatic Welding Equipment
Product Overview

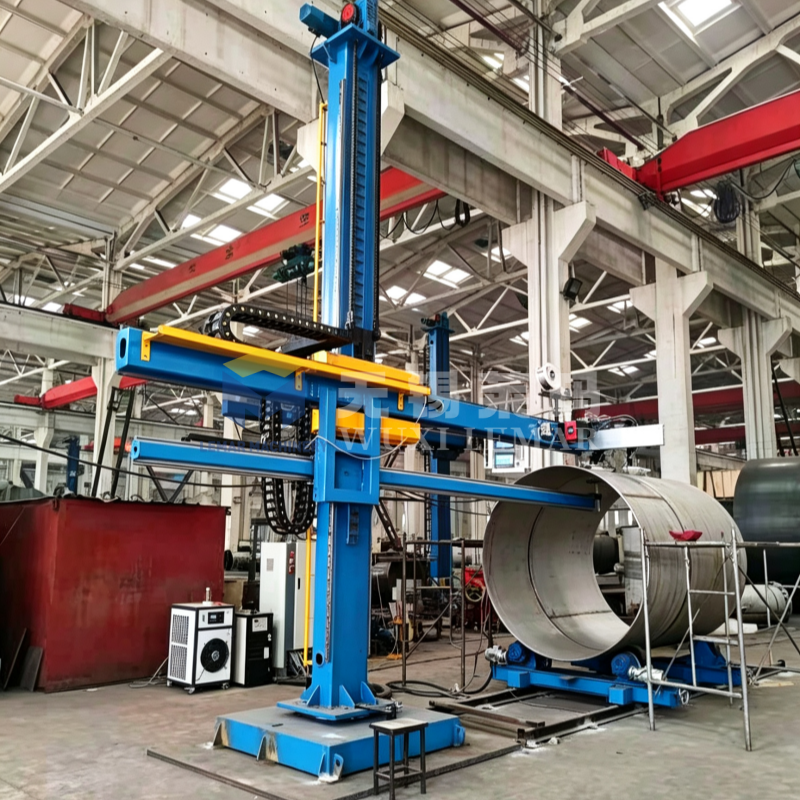

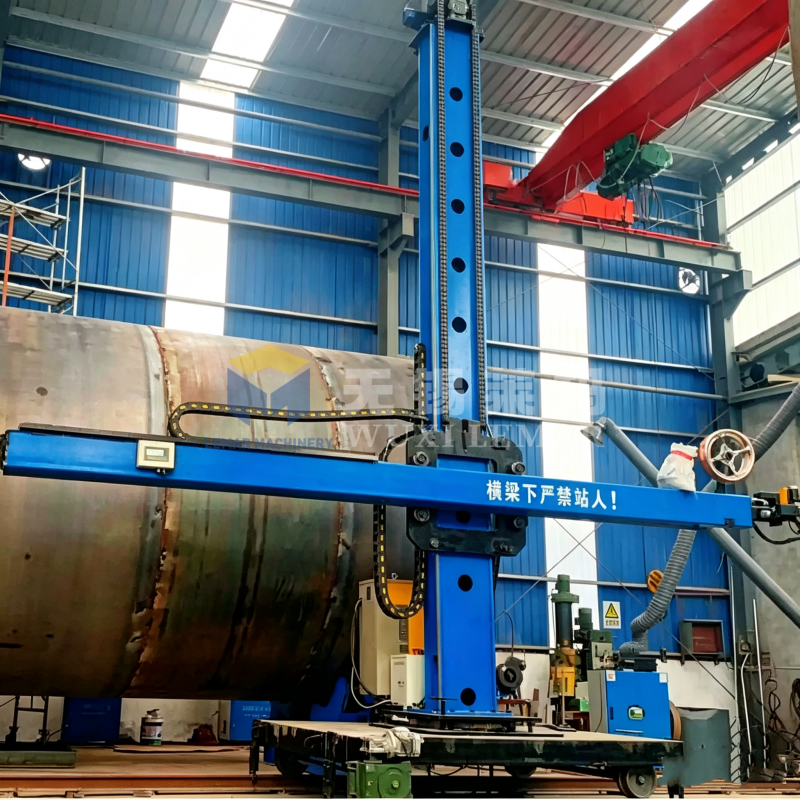

The 2020 Welding Manipulator (2m vertical × 2m horizontal stroke), also known as column & boom welding manipulator, is designed to work with welding rotators and positioners for automatic inner and outer longitudinal and circumferential seam welding of tanks, pressure vessels, pipes, and cylindrical workpieces. This equipment significantly improves welding consistency and workshop productivity.

2020 Column & Boom Welding Manipulator Automatic Welding Equipment2020 Column & Boom Welding Manipulator Automatic Welding Equipment

Main Features
  • Box-type column & boom with stress relief treatment, providing stable and rigid structure
  • VFD stepless speed regulation for boom lifting & telescoping, ensuring smooth operation
  • Optional column rotation, base trolley moving, and motorized cross slide for fine adjustment
  • Safety anti-fall protection device for boom lifting
  • Compatible with SAW, MIG/MAG, and TIG welding systems
  • Easy operation with remote control box and simple maintenance
Technical Parameters
2020 Column & Boom Welding Manipulator Automatic Welding Equipment2020 Column & Boom Welding Manipulator Automatic Welding Equipment
Item Specification
Model 2020 Welding Manipulator
Vertical Lifting Stroke 2000 mm
Horizontal Telescopic Stroke 2000 mm
Boom End Max Load 100 kg
Boom Lifting Speed 0.3 m/min
Boom Telescoping Speed 0.12-1.2 m/min
Column Rotation ±180° (optional)
Cross Slide 100×100mm motorized fine-tuning
Power Supply 380V, 3PH, 50Hz (customizable)
Applications
  • Pressure vessels, boiler barrels, storage tanks
  • Pipe fabrication, wind power components, metal structural parts
  • Cooperates with welding rotator/positioner to achieve full automatic circle and longitudinal seam welding

2020 Column & Boom Welding Manipulator Automatic Welding Equipment2020 Column & Boom Welding Manipulator Automatic Welding Equipment

Our Advantages
✅ Factory direct supply, competitive price without middleman markup
✅ Strict quality inspection before shipment, every machine tested
✅ Professional engineering team for customized welding solutions
✅ Fast after-sales response, video guidance for installation & troubleshooting
Packaging & Shipment
  • Standard export wooden case or steel frame packing
  • Suitable for sea/land transportation, moisture-proof and shockproof
  • We can arrange shipment to your nominated port or warehouse
  • Packing photos and loading videos provided before delivery

2020 Column & Boom Welding Manipulator Automatic Welding Equipment2020 Column & Boom Welding Manipulator Automatic Welding Equipment

Frequently Asked Questions
Q: Can this manipulator match my existing welding rotator?
A: Yes. We can design the whole welding station to pair with your current rotator or positioner.
Q: What welding processes does it support?
A: SAW, MIG/MAG, TIG are available.
Q: Can I customize voltage or extra functions?
A: Custom voltage, seam tracking, camera monitoring and flux recovery system are optional.
Q: What's your warranty?
A: 12 months warranty, lifelong technical support.
