800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
Specifications
Payment Terms :
T/T,D/P,D/A,L/C
Optional Control System :
PLC + Touch Screen
Model Number :
ZTH-800
Product Name :
800mm Longitudinal Straight Seam Welding Machine
MOQ :
1
Delivery Time :
10-20 work days
Applicable Material :
Stainless Steel, Carbon Steel, Aluminum Alloy
Welding Material :
Stainless Steel,Carbon Steel,Aluminum Alloy
Packaging Details :
120.00cm * 74.00cm * 100.00cm
Brand Name :
LEMAR
Model NO. :
ZTH-800
Place of Origin :
WUXI
Max Effective Welding Length :
500mm
Price :
500-1000USD
Welding Mode :
TIG / MIG / Plasma
Supply Ability :
500 units/month
Clamping Mode :
Pneumatic Keyboard Pressing
Certification :
CE
Welding Thickness Range :
0.3 ~ 4 mm
Description
800mm Longitudinal Straight Seam Welding Machine
Special automatic welding equipment for longitudinal seam of cylindrical workpieces, designed for stainless steel cylinder and tube longitudinal seam welding.
Product Introduction

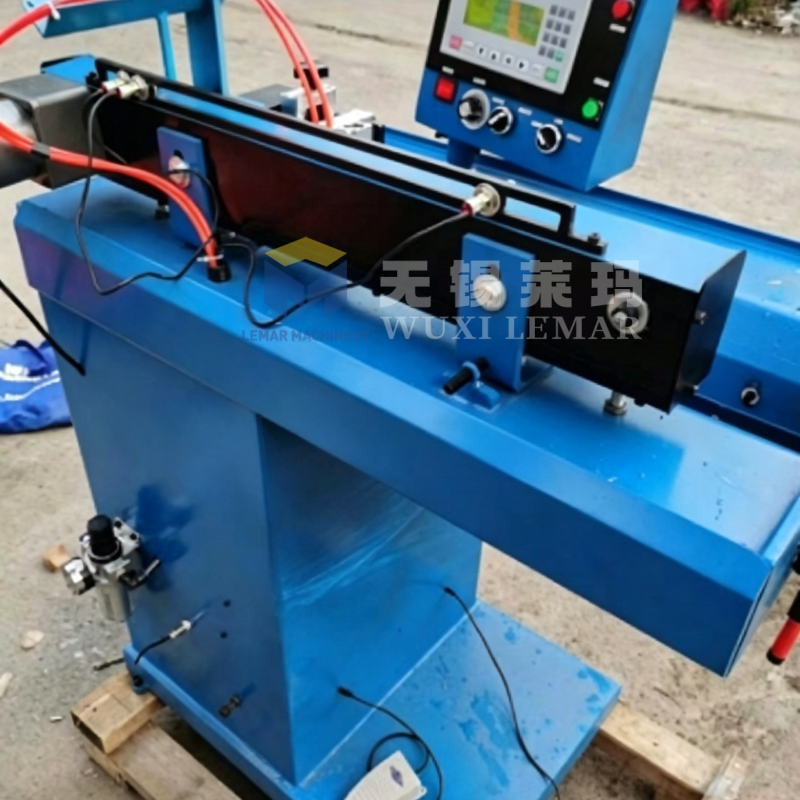

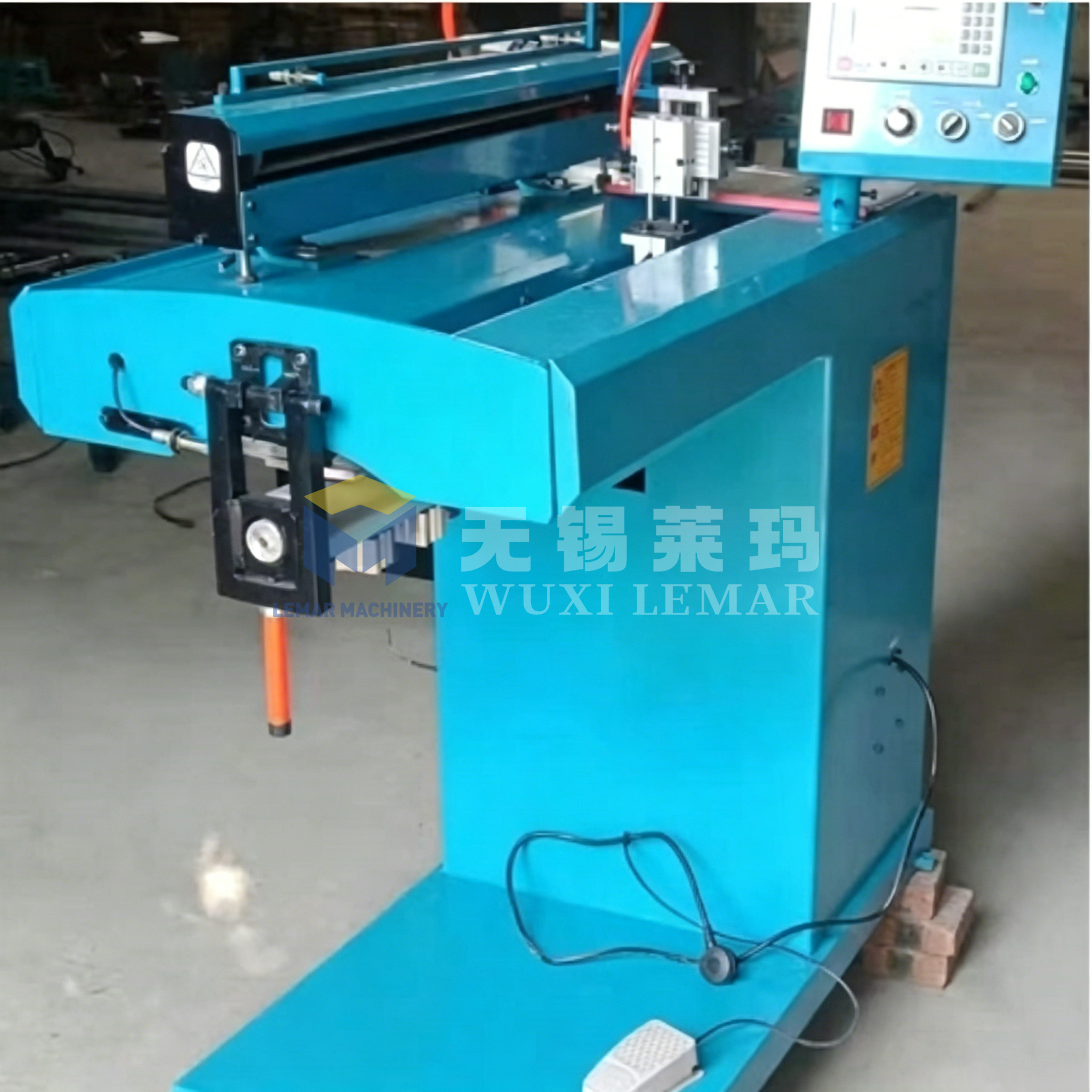

The 800mm longitudinal straight seam welding machine is a specialized automatic welding equipment designed for cylindrical workpiece longitudinal seams. It features PLC and touch screen control systems to achieve stable, continuous straight seam welding. The machine securely holds sheets and drives the welding torch in linear motion at adjustable speeds. Widely used for stainless steel, carbon steel, and aluminum alloy sheet welding to produce barrels, tanks, pipes, and housings. Compatible with TIG, MIG, and Plasma welding processes. Standard model offers 800mm effective welding length with customizable welding stroke and fixtures. Every machine undergoes full testing before delivery.
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
Certifications
  • CE certification available for European market
  • ISO 9001 certified factory
  • All electrical components comply with international safety standards
  • Other certificates can be applied upon customer request


Specifications
Item Specification
Model LS-800
Effective Welding Length 800mm
Welding Material Stainless Steel, Carbon Steel, Aluminum Alloy
Material Thickness 0.3-3.0mm
Welding Process TIG / MIG / Plasma
Welding Speed 50-800 mm/min, stepless adjustable
Control System PLC + Touch Screen
Linear Guide High precision linear guide rail
Power Supply AC380V / 220V, 50/60Hz
Workpiece Clamping Pneumatic clamping fixture
Optional Function Welding seam tracking, torch height adjustment
Main Components
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
  • Linear Travel Mechanism: High precision linear guide and servo motor, stable torch movement to guarantee consistent weld bead.
  • Pneumatic Clamping System: Fast clamping, keeps sheet tightly fixed and avoids deformation during welding.

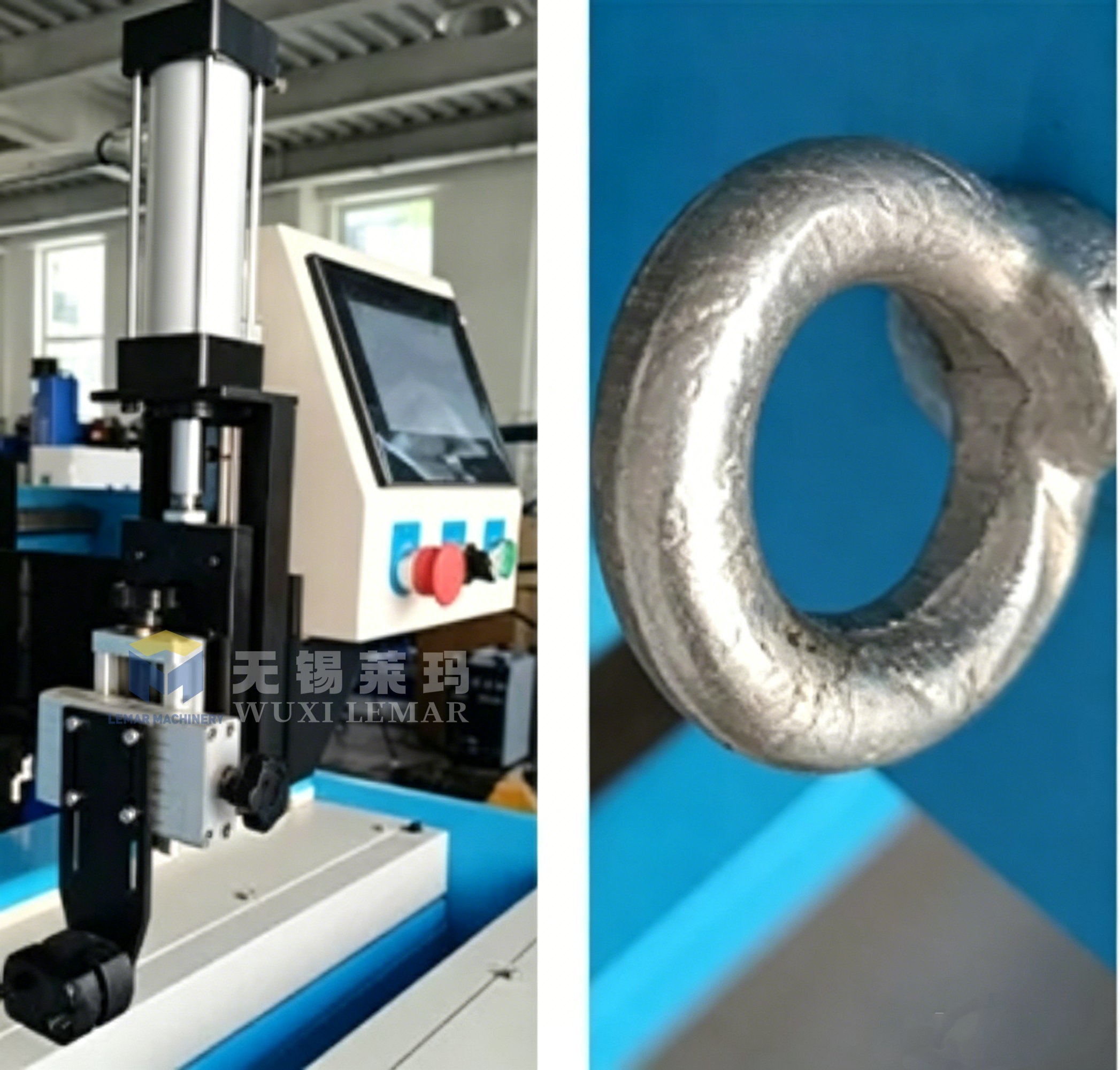

  • Welding Torch Assembly: Adjustable torch holder with fine tuning in X, Y, Z three directions.
  • PLC & Touch Screen Controller: Easy parameter setting with storage of multiple welding recipes.
  • Machine Base: Heavy duty welded steel frame, stress relieved to maintain long-term stability.
  • Water Cooling Unit: Optional water chiller for continuous high-current welding.
Working Principle

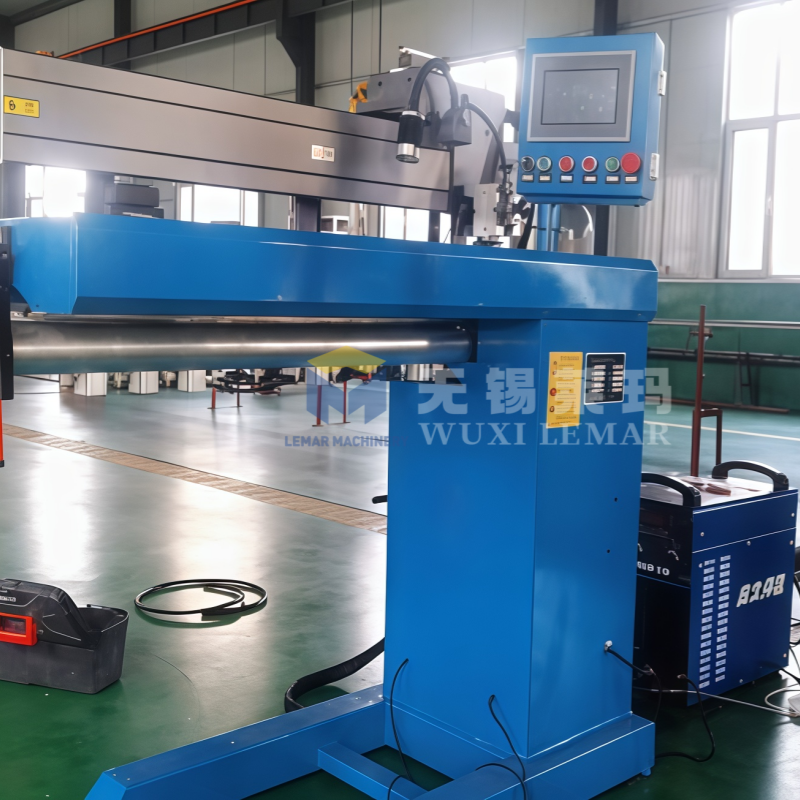

Flat metal sheets are rolled into cylindrical shapes and positioned on the fixture. The pneumatic clamping system securely locks the workpiece. Operators set welding speed, current, and other parameters via the touch screen. The welding torch moves automatically along the straight rail to complete the longitudinal seam in one continuous pass. Uniform heat input minimizes workpiece deformation and ensures airtight, high-quality weld seams.
800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding800mm Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder & Tube Longitudinal Seam Welding
Trade Information
  • MOQ: 1 set
  • Price Term: FOB Shanghai / CIF / EXW / DDP negotiable
  • Payment Term: T/T 30% deposit, 70% balance before shipment; L/C at sight acceptable
  • Lead Time: 20-30 days for standard, 30-45 days for customized
  • Place of Origin: Wuxi, Jiangsu, China
  • Brand: Lemar Machine (OEM acceptable)
  • Sample Policy: Custom test sample available upon negotiation
