Specifications
Payment Terms :
D/A,L/C,D/P,T/T
Packaging Details :
4000*2000*200mm
Grid Pitch :
50×50mm / 100×100mm
Standard Height :
630mm (Customizable)
Model Number :
D28/D16
Load Capacity :
2–5 Tons (D16); 6-8 Tons (D28)
Adjustment :
Height Adjustable Leveling Feet (±50mm)
Brand Name :
WUXI LEMAR
MOQ :
1 PCS
Place of Origin :
WUXI
Supply Ability :
500 units/month
Structure :
Reinforced Box Frame
Surface Hardness :
HRC 45+
Repeat Positioning Accuracy :
±0.02mm
Certification :
CE
Price :
500-1500 USD
Delivery Time :
15-25 work days
Hole Diameter :
Φ16mm / Φ28mm
Description

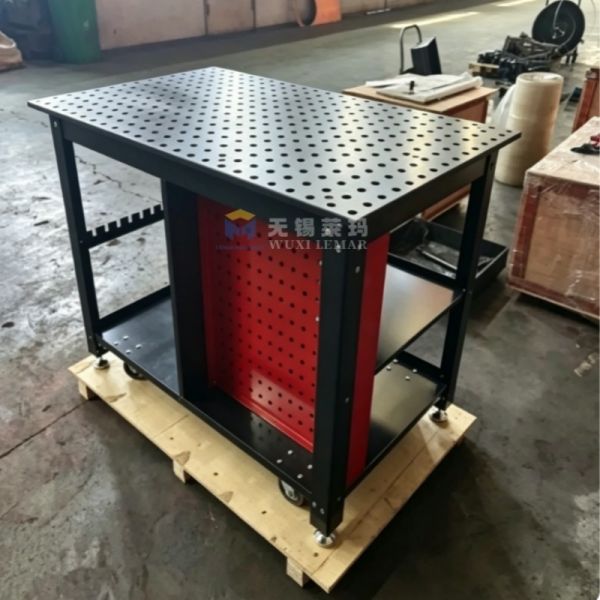

2D Modular Steel Welding Table for Precision Fixture
2D Modular Steel Welding Table for Precision Fixture
Preferred welding tool
The 2D Modular Steel Welding Table for Precision Fixture is the core equipment for planar precision welding and flexible manufacturing, with high-precision mesh hole system, modular fixture, and planar positioning as the core, balancing accuracy, cost, and efficiency. It is suitable for welding, assembly, and fixture applications of sheet/frame workpieces and is the preferred fixture for small and medium batch, multi variety production.
2D Modular Steel Welding Table for Precision Fixture 2D Modular Steel Welding Table for Precision Fixture
Product Specifications
Technical Item D16 Series D28 Series
Hole Diameter Φ16mm Φ28mm
Grid Pitch 50×50mm (Tolerance: ±0.05mm) 100×100mm (Tolerance: ±0.05mm)
Hole Tolerance Grade D10 D10
Locating Pin Fit Grade H7 H7
Grid Marking 50mm Spacing Laser Marking 100mm Spacing Laser Marking
Positioning Accuracy ±0.05mm ±0.05mm
Repeat Positioning Accuracy ±0.02mm ±0.02mm
Customizable in any size:
1000 × 1000 × 12 mm/25mm
1200 × 1200 × 12 mm/25mm
1500 × 1000 × 12mm/25mm
2000 × 1000 × 12mm/25mm
2400 × 1200 × 12mm/25mm
3000 × 1500 × 12mm/25mm
Core Advantages
  • High precision: Flatness and positioning accuracy meet the requirements of precision welding.
  • Low cost: The structure is simple, and the price of 2D welding tables is lower than that of 3D welding tables. The fixtures are universal and there is no customization cost.
  • High efficiency: Fast clamping and quick changeover, greatly improving production efficiency.
  • High rigidity: Made of steel with aging treatment, resistant to welding deformation and durable.
  • Easy to maintain: Nitrided surface prevents welding slag, easy to clean, and has a long service life.
Customization Support
  • Custom the welding table size, working height and special structure
  • Custom laser marking, logo and surface requirements
  • Tailor-made fixture combination solutions for your specific products
Still wondering which 2D Modular Steel Welding Table for Precision Fixture fits your needs?
Feel free to reach out, we will tailor the perfect solution for you.
