1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
Specifications
Brand Name :
WUXI LEMAR
Model Number :
D28
Certification :
CE
Place of Origin :
WUXI
MOQ :
1 PCS
Price :
500-1000 USD
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-0 work days
Packaging Details :
3000*2000*200mm
Standard Working Height :
620mm (adjustable)
Hole Diameter :
Φ28mm
Perforation Design :
Five-sided full holes
Flatness Tolerance :
≤0.1mm/m
Hole Position Accuracy :
±0.05mm
Optional Material :
S355J2N Alloy Steel / HT300 Cast Iron
Surface Treatment :
Gas Nitriding, high hardness, anti-welding spatter
Evenly Distributed Load :
3-5 tons/㎡
Warranty :
1 year for main body
Description
High quality welding equipment for sale
Product Introduction

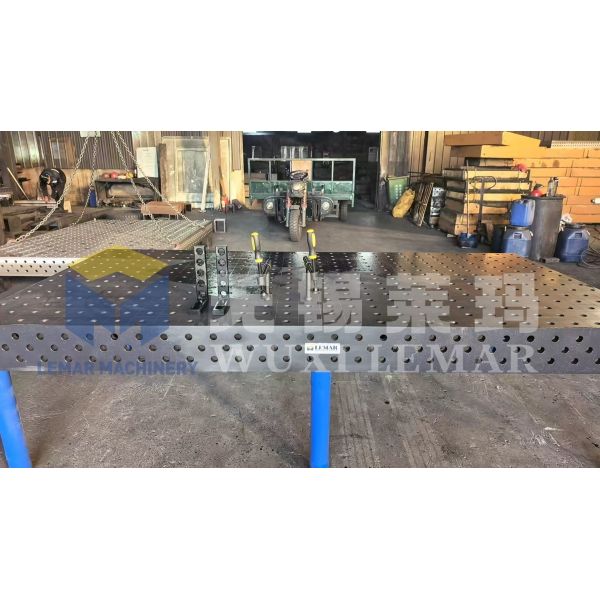

The 1000X2000mm 3D Welding Table with 28mm Holes is a heavy-duty flexible welding platform designed for precision welding and assembly of heavy structural components. It features a 28mm standard hole system with 100mm mesh spacing, making it ideal for demanding applications in construction machinery, steel structures, and rail transit.

  • Cast iron version: HT300 high-strength gray cast iron, annealed with natural aging, internal stress relief rate >95%, working face hardness HB170-240
  • Steel component type: Q355 low-alloy high-strength steel, overall welding with stress relief, surface gas nitriding, hardness HV ≥ 550, wear-resistant and rust proof
  • Thickness: Cast iron/steel welding table thickness is 25mm with densely distributed bottom reinforcement ribs
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
Product Parameters
Aspect Cast Iron Q355 (Structural Steel)
Common Types Gray Iron, Ductile Iron Replaces the old grade Q355
Key Composition High carbon (2-4%), high silicon (1-3%), low manganese (0.1-1%) Low carbon (≤0.24%), low silicon (≤0.55%), manganese (1.0-1.6%), with microalloys (Nb, V, Ti)
Mechanical Properties Tensile Strength: 120-400 MPa (low), Brittle, low toughness, High hardness (HB 150-300), Poor weldability Tensile Strength: ≥355 MPa (actual: 470-630 MPa), High toughness, impact resistance, Moderate hardness (HB 130-180), Excellent weldability
Manufacturing Process Casting (molten metal poured into molds). Ideal for complex shapes Hot/cold rolling, forging. Easy to cut, weld, and machine
Applications Engine blocks, machine tool bases, pipes, cookware Structural frameworks (buildings, bridges), ships, pressure vessels, machinery
Advantages Cost-effective, wear-resistant, good vibration damping High strength-to-weight ratio, ductile, suitable for dynamic loads
Limitations Brittle, difficult to machine post-casting Requires corrosion protection in harsh environments

Uniformly distributed load: 2-5 tons/m²

Single leg load-bearing capacity: 500kg-1 ton (with 4 standard 80×80mm square tube legs)

Standard Attachments (Optional)
  • Positioning type: φ28 positioning pin, V-shaped block, height adjustment block, 90° positioning angle iron
  • Clamping type: quick press, screw clamp, elbow clamp, magnetic clamp
  • Expansion class: connection block, L-shaped square box, extension board, adjustable support foot
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding 1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding
Export Qualification and Quality
  • Our welding table complies with CE EU industrial safety standards
  • The flatness and hole spacing accuracy strictly follow industrial grade standards for foreign trade exports
  • Full factory inspection of the entire machine, accompanied by a dimensional inspection report
  • Packaging: Solid wood fumigation export wooden box, anti-collision and moisture resistant for ocean transportation
1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding

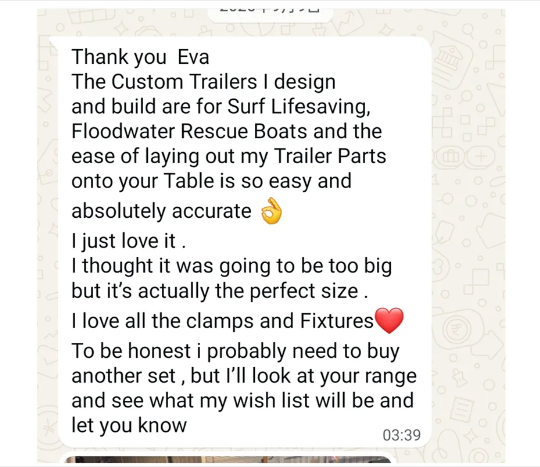

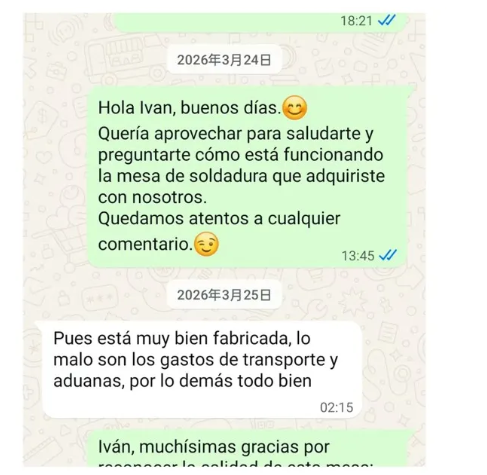

Customer Reviews

We provide our customers with the highest quality D28 3D welding table, and their positive feedback is our greatest motivation.

1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding1000X2000mm 3D Welding Table with 28mm Holes for Heavy-Duty Structural Welding

FAQ
Q: How about the flatness and positioning accuracy?
A: Flatness ≤0.1mm per meter, hole position tolerance ±0.05mm, high precision for heavy structure welding.
Q: Can I connect several tables together?
A: Sure. Reserved connecting holes on sides, easy to splice into larger working area.
Q: Is it easy to install and use?
A: No complicated installation, place it on flat ground, adjust level feet then start working directly.
Q: Which industries are this table widely used in?
A: Construction machinery, steel structure, vehicle frame, rail transit, agricultural equipment and heavy equipment manufacturing.
Service and Support
  • FOB/CIF terms available
  • DDU/DDP shipping to 50+ countries
  • Trade assurance through PICC/Country bank
  • Customized Products
  • OEM/ODM capabilities
  • Competitive pricing & bulk discounts
  • Fast shipping & customs clearance support
  • Turnkey project solutions
Should you have any interest in this 1000*2000mm heavy duty 3D welding table with 28mm holes, feel free to contact Amy for our most competitive price.
