10 Ton Welding Rotator with Adjustable Roller Spacing for Cylindrical Workpiece Welding
10 Ton Welding Rotator with Adjustable Roller Spacing for Cylindrical Workpiece Welding
10 Ton Welding Rotator with Adjustable Roller Spacing for Cylindrical Workpiece Welding
10 Ton Welding Rotator with Adjustable Roller Spacing for Cylindrical Workpiece Welding
10 Ton Welding Rotator with Adjustable Roller Spacing for Cylindrical Workpiece Welding
10 Ton Welding Rotator with Adjustable Roller Spacing for Cylindrical Workpiece Welding
10 Ton Welding Rotator with Adjustable Roller Spacing for Cylindrical Workpiece Welding
10 Ton Welding Rotator with Adjustable Roller Spacing for Cylindrical Workpiece Welding
Specifications
Payment Terms :
T/T,D/P,D/A,L/C
Type :
Welding Turning Rolls
Workpiece Diameter :
300–3000 mm
Model Number :
KTG-10
Roller Material :
PU / Rubber / Steel (Optional)
MOQ :
1
Delivery Time :
10-20 work days
Rotation Speed :
0.1–1 rpm, VFD stepless speed
Adjustment Type :
Screw Manual Adjustable
Packaging Details :
120.00cm * 74.00cm * 100.00cm
Price :
500-3000USD
Load Capacity :
10 Ton
Supply Ability :
500 units/month
Model NO. :
KTG-10 Adjustable
Drive :
1 active + 1 passive roller set
Certification :
CE
Brand Name :
LEMAR
Power Supply :
380V 50Hz, customizable
Place of Origin :
WUXI
Description

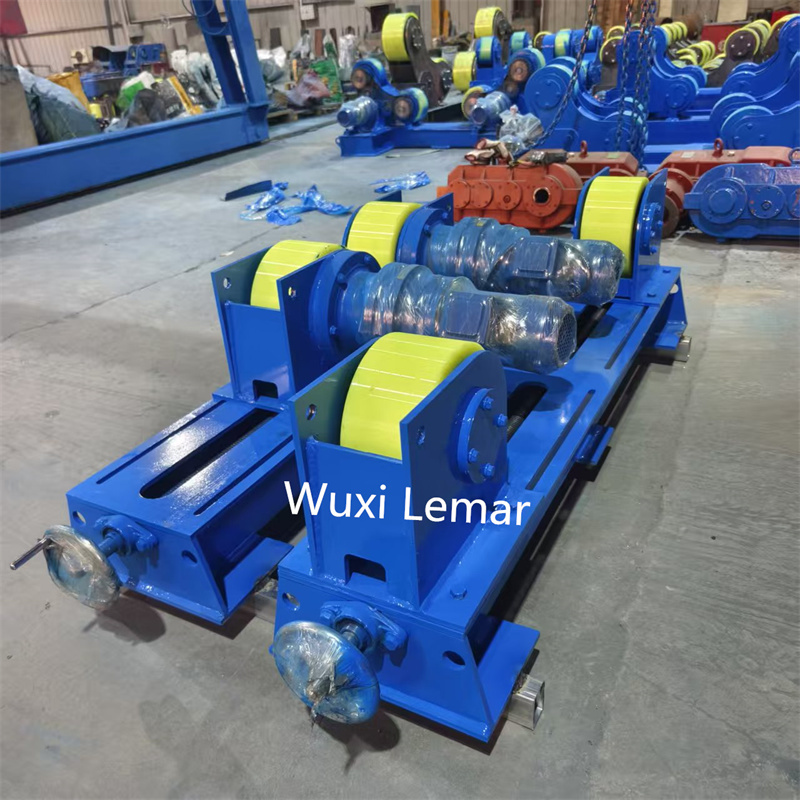

10 Ton Welding Rotator with Adjustable Roller Spacing
Product Overview

This 10-ton screw adjustable welding turning roll is designed for circumferential seam welding of cylindrical workpieces. The roller distance can be manually adjusted by screw to fit different diameter tanks, pipes and pressure vessels. Equipped with VFD speed control for stable rotating speed. Suitable for pressure vessel, water tank, boiler and pipe fabrication workshops.

Applications
  • Pressure vessel circumferential welding
  • Stainless steel storage tank fabrication
  • Boiler cylinder welding production
  • Heat exchanger barrel welding
  • Large steel pipe & flange welding
  • Wind power small cylinder processing
  • Robotic welding station for cylindrical parts
Technical Specifications
Model NO. ZT-10 Adjustable
Type Welding Turning Rolls
Load Capacity 10 Ton
Adjustment Type Screw Manual Adjustable
Workpiece Diameter 300-3000 mm
Rotation Speed 0.1-1 rpm, VFD stepless speed
Roller Material PU / Rubber / Steel (Optional)
Power Supply 380V 50Hz, customizable
Drive 1 active + 1 passive roller set
Control Control box, optional wireless remote
Condition New
Warranty 1 year
Customization Available
Application Tank, vessel, pipe, boiler circumferential welding
Core Features
  • Screw adjustable structure: Manual screw adjustment for roller spacing, flexible for different workpiece diameters.
  • VFD stepless speed regulation: Stable low-speed rotation, consistent linear speed to guarantee welding quality.
  • Optional roller material: PU/rubber rollers avoid scratching workpiece surface; steel rollers for heavy sharp workpieces.
  • Solid welded base frame: High rigidity frame, stable running under full 10 ton load.
  • Safety protection: Overload protection, emergency stop button.
  • Easy operation: Standard control cabinet, wireless remote control optional.
Optional Accessories
  • Wireless remote controller
  • Anti-drifting device to prevent workpiece axial movement
  • Steel rollers / PU rollers / Rubber rollers replacement
  • Travel base for moving on rail
  • Robot linkage interface
Warranty & Service
  • Whole machine warranty: 1 year (excluding wearing parts and man-made damage)
  • English technical support remotely
  • Supply operation manual, electric drawing and spare parts list
  • Spare parts available for long-term supply
Frequently Asked Questions
Q1: What adjustment method does this 10 ton welding turning roll adopt?

A1: It is screw manual adjustment. You can change the roller center distance to adapt to workpieces with different diameters.

Q2: What workpiece diameter range can this set of 10T turning rolls support?

A2: The applicable workpiece diameter is 300-3000 mm. Customization is available for special sizes.

Q3: What roller materials can I choose?

A3: PU roller, rubber roller and steel roller are optional. PU/rubber rollers protect workpiece surface, steel rollers suit heavy rough parts.

Q4: Does this welding rotator support robot linkage?

A4: Yes. We can reserve signal interface to connect with robotic welding system as your requirement.

Q5: What is the warranty of the machine?

A5: 1-year warranty for the whole machine, excluding wearing parts and damage caused by human operation. Remote English technical support is provided.

Q6: Can you customize the working voltage for different countries?

A6: Sure. Standard power is 380V 50Hz. 220V, 400V, 415V and other voltages can be customized.
