Industrial D28 3D Welding Table with CE Certification and ISO Standards
Industrial D28 3D Welding Table with CE Certification and ISO Standards
Industrial D28 3D Welding Table with CE Certification and ISO Standards
Industrial D28 3D Welding Table with CE Certification and ISO Standards
Industrial D28 3D Welding Table with CE Certification and ISO Standards
Industrial D28 3D Welding Table with CE Certification and ISO Standards
Industrial D28 3D Welding Table with CE Certification and ISO Standards
Industrial D28 3D Welding Table with CE Certification and ISO Standards
Specifications
Model Number :
D28
Flatness :
≤0.1 mm / 1000 mm (standard)
Certification :
CE
Price :
500-1500 USD
Working Surface :
5‑sided precision machined (top + 4 sides)
MOQ :
1 PCS
Delivery Time :
15-25 work days
Tolerance :
±0.05 mm
Payment Terms :
L/C,D/A,D/P,T/T
Tabletop Thickness :
25 mm (standard)
Grid Hole Pitch :
100 × 100 mm
Hole Diameter :
Φ28 mm (H7 tolerance, φ28.065‑φ28.149 mm)
Supply Ability :
500 units/month
Tabletop Material :
Option 1: Q355 high‑strength structural steel/HT300 grey cast iron
Surface Roughness :
Ra ≤ 3.2 μm
Brand Name :
WUXI LEMAR
Verticality :
≤0.1 mm / 200 mm between side and top surface
Packaging Details :
4000*2000*200mm
Place of Origin :
WUXI , CHINA
Description
Industrial D28 3D Welding Table with CE Certification and ISO Standards
Industrial D28 3D Welding Table with CE Certification and ISO Standards

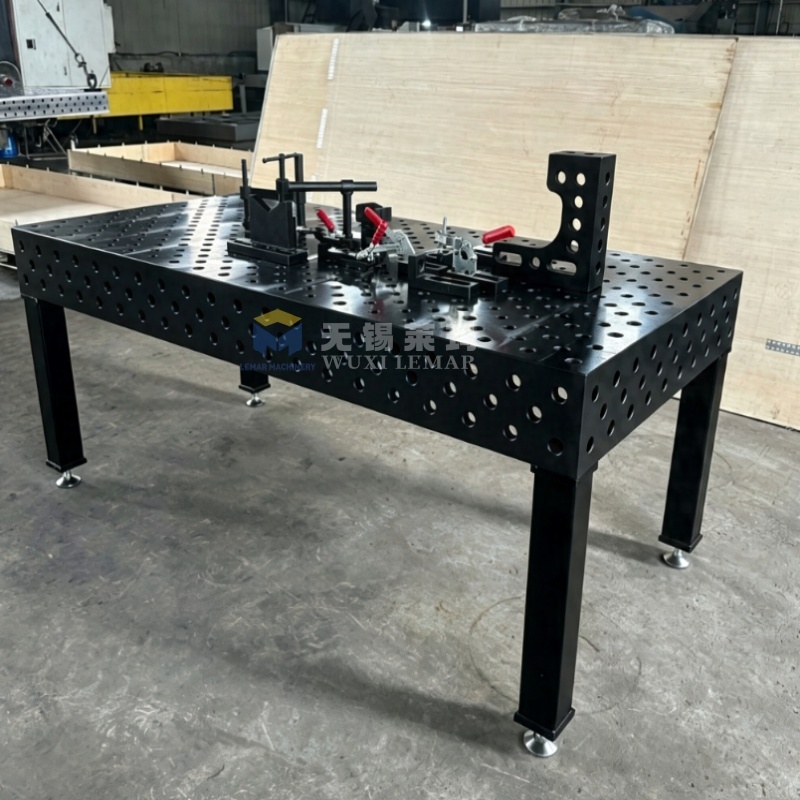

The Industrial D28 3D Welding Table is a heavy-duty modular welding clamping platform engineered for thick-plate and large-size workpiece assembly and welding. Featuring a D28 hole system with Φ28 mm holes and 100 mm grid pitch, this table is drilled with holes on the top and four side surfaces for 3-dimensional flexible positioning and clamping. It meets CE machinery directive requirements and follows ISO quality standards, making it suitable for manual welding as well as robotic welding cells in engineering machinery, steel structure, and agricultural equipment industries.

Industrial D28 3D Welding Table with CE Certification and ISO Standards Industrial D28 3D Welding Table with CE Certification and ISO Standards
Technical Specifications
Item Specification

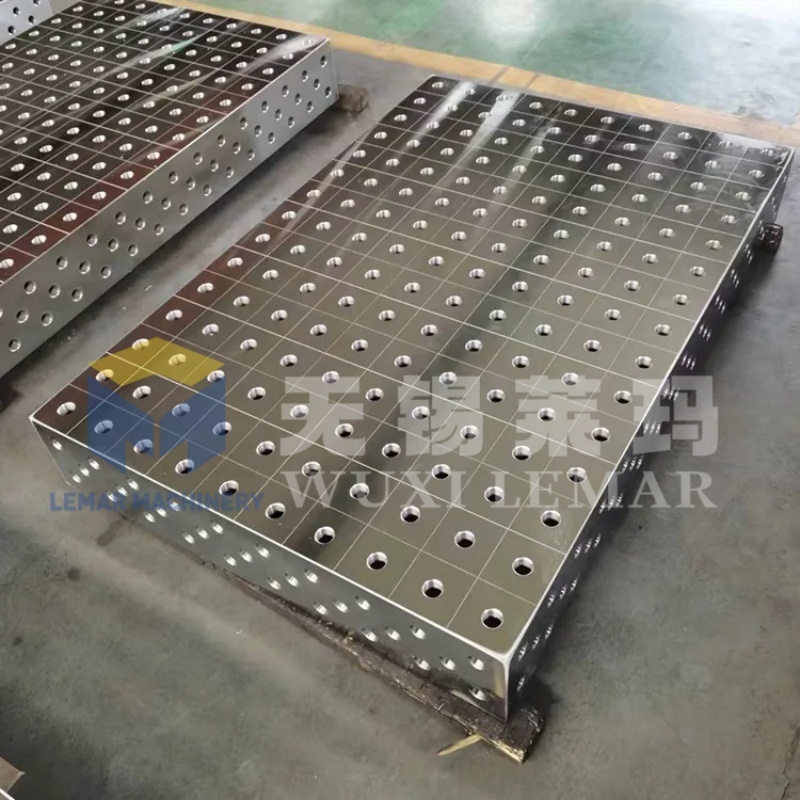

Hole System Hole diameter Φ28 mm, hole pitch 100 mm; hole position accuracy ±0.05 mm; holes on 5 working surfaces (top surface + 4 side surfaces)
Tabletop Thickness 25 mm (mainstream)
Optional Material ① HT300 gray cast iron (good shock absorption, low deformation)
② Q355 high-strength steel plate (impact-resistant for heavy-duty applications)
Surface Treatment Nitriding treatment, hardness HV550-900; resistant to welding spatter, wear-resistant and rust-proof; shot blasting and blackening are optional
Flatness Accuracy ≤0.1 mm /1000 mm; 0-grade high-precision version ≤0.05 mm/1000 mm, suitable for robotic welding
Load Capacity Static load capacity: 5-10 tons; single-leg load capacity: 900-1000 kg; dynamic vibration load for welding: 2 tons
Standard Tabletop Sizes 1000×1000 mm, 1000×2000 mm, 1200×2400 mm, 1500×3000 mm; non-standard customization available
Matching Accessories Full set of D28-series tooling: locating angle irons, clamping fixtures, support blocks, locking pins, angle blocks, etc.
Surface Treatment & Maintenance
Industrial D28 3D Welding Table with CE Certification and ISO Standards Industrial D28 3D Welding Table with CE Certification and ISO Standards

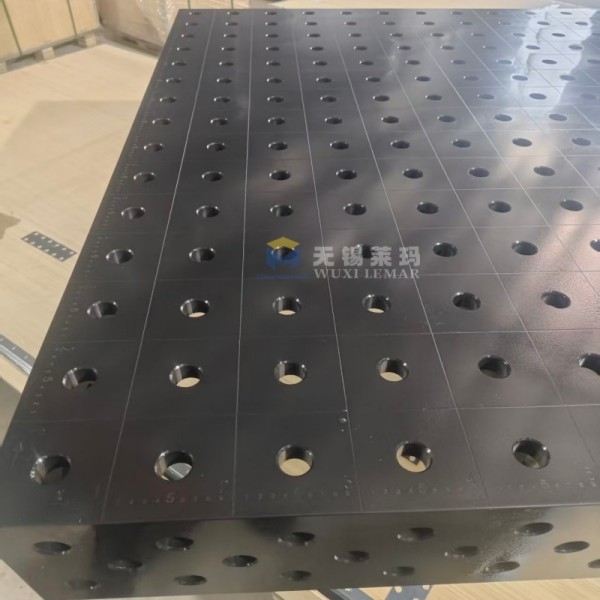

  • Nitriding: Core process, nitrided layer thickness 0.25-0.5mm; welding slag does not easily adhere to the work surface and can be cleaned with a scraper or wire brush.
  • Long-term disuse: Wipe the work surface clean and apply a thin layer of anti-rust oil to prevent rusting.
  • Prohibited: Directly striking an arc on the work surface will burn it. A welding slag protection baffle is optional.
  • Regular inspection: Check for wear on the locking pins and the levelness of the work surface. Worn parts can be replaced individually; the entire work surface does not need to be replaced.
Terms of Trade
  • Packaging: Heavy-duty export solid wood fumigation-free wooden crate with internal foam protection to prevent damage during transportation
  • Lead Time: Standard size: 15-20 working days; Custom non-standard size welding station: 20-30 working days
  • Trade Terms: EXW / FOB / CIF / DAP / DDP
  • Payment: Standard 30% prepayment, 70% balance due before shipment; L/C letter of credit accepted
Product Certification
Industrial D28 3D Welding Table with CE Certification and ISO Standards
FAQ
Q: Do you supply matching D28 accessories?
A: Yes, we supply full set of D28-series tooling, such as locating angle irons, clamping fixtures, support blocks, locking pins, angle blocks and more.
Q: Is this welding table CE & ISO compliant?
A: Yes, it complies with CE machinery directive and ISO quality system requirements. CE DOC document can be provided upon request.
Q: Can this D28 welding table be used for robotic welding?
A: Yes, please choose the 0-grade high-precision flatness version for robotic welding cells.
Q: Do you provide inspection reports before shipment?
A: Yes, we can supply dimensional inspection report covering flatness, hole-pitch accuracy and nitriding hardness on request.
Q: What is your warranty policy?
A: The main table body is covered by 1-3-year warranty. Clamping accessories have 1-year warranty. Locking pins are wearing parts and not covered under warranty.
If you are interested in the Industrial D28 3D Welding Table with CE Certification and ISO Standards, please feel free to send us your detailed requirements.
We will offer you our best quotation and professional technical support accordingly.
