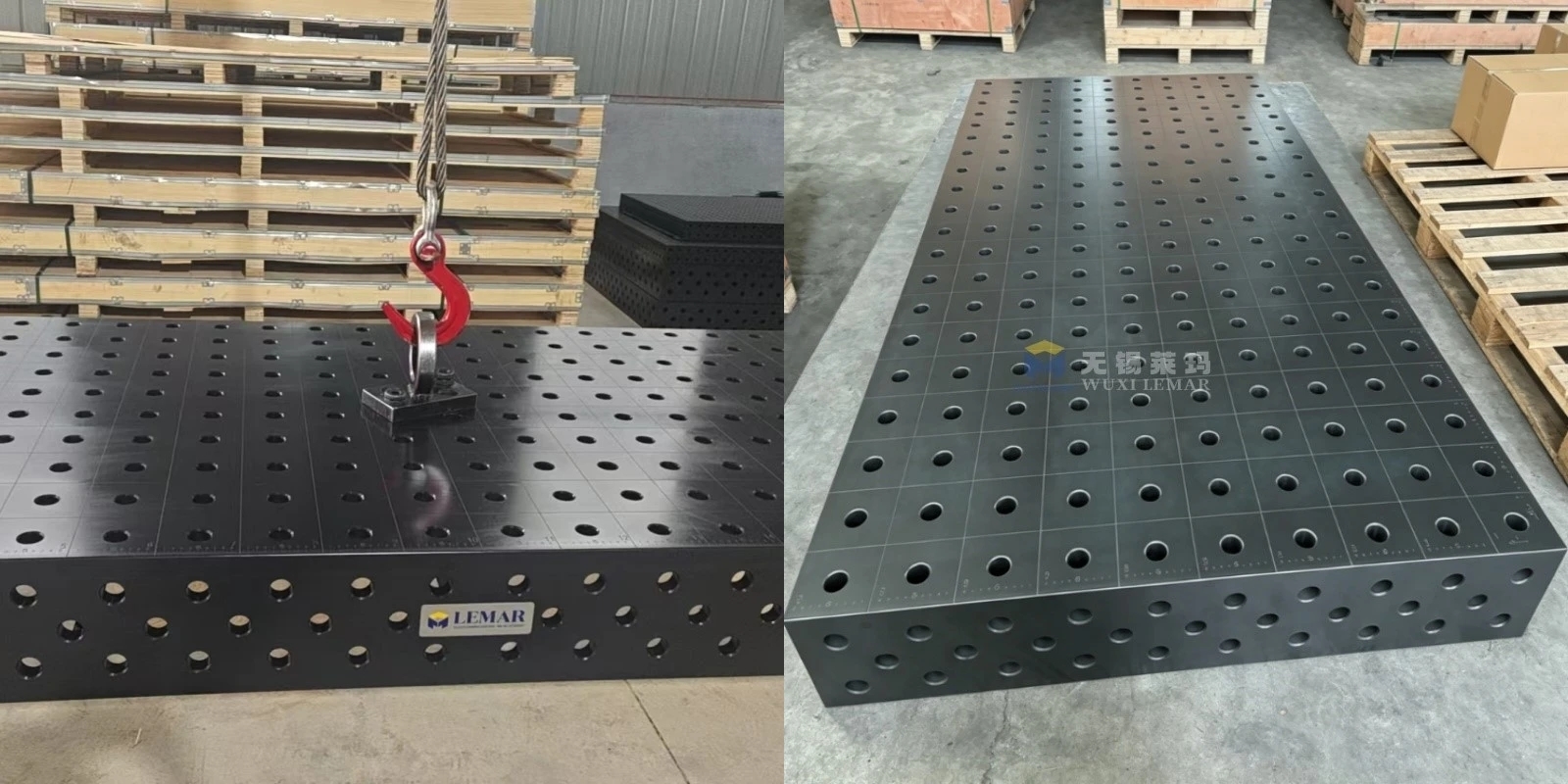

D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
Specifications
Exporting Country :
The Whole World
Customization Capabilities :
Supports Customization/MultipleUnits Splicing
Model Number :
D28
Verticality :
≤0.1mm/200mm
Price :
500USD-1500USD
Flatness :
≤0.1mm/1000mm
Countertop Material :
Q355 Steel/ Ht300 Cast Iron/Stainless Steel
Certification :
CE
Diameter :
28mm
MOQ :
1
Delivery Time :
15-25 work days
Payment Terms :
D/A,L/C,D/P,T/T
Payment Currency :
Dollar
Place of Origin :
WUXI,CHINA
Supply Ability :
500 units/month
Model NO :
D28
Thickness :
25mm
Brand Name :
WUXI LEMAR
Packaging Details :
4000mm*2000mm*300mm
Description
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
Product Overview
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks

Our D28 Welding Table is purpose-built to handle demanding heavy steel fabrication jobs in busy metalworking workshops. Built around the standard D28 hole grid system, this robust work platform delivers stable reference planes for positioning and clamping thick steel workpieces.

Every tabletop undergoes precision CNC machining to maintain reliable flatness under substantial static and welding heat loads. It allows operators to quickly arrange fixtures and stops, cutting down repeated setup time for large steel frames and structural components. The reinforced steel construction is engineered to resist deformation during long hours of heavy welding and assembly work.

Product Parameters
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
Parameter Specification
Grid System D28 - 28mm holes on 100mm centers
Hole Tolerance H7 precision
Tabletop Material HT300 cast iron / Q355 steel
Tabletop Thickness 100mm
Surface Treatment Nitrided (HV ≥ 600)
Flatness Tolerance ±0.1mm per m²
Static Load Capacity 5,000 kg per table
Standard Sizes 1500×1000, 2000×1000, 3000×1500mm
Leg Height 850mm (custom heights available)
Leg Construction 80×80mm square tube, 5mm wall
Leveling Feet M24 threaded, 50mm pad
Product Sizes
System Material Size(mm) Weight(kg)
D28/D16 HT300 cast iron/Q355 steel 1000*1000*200/150 300
D28/D16 HT300 cast iron/Q355 steel 1000*2000*200/150 520
D28/D16 HT300 cast iron/Q355 steel 1200*1200*200/150 400
D28/D16 HT300 cast iron/Q355 steel 1200*2400*200/150 800
D28/D16 HT300 cast iron/Q355 steel 1500*1000*200/150 420
D28/D16 HT300 cast iron/Q355 steel 1500*1500*200/150 600
D28/D16 HT300 cast iron/Q355 steel 1500*2000*200/150 800
D28/D16 HT300 cast iron/Q355 steel 1500*3000*200/150 1150
D28/D16 HT300 cast iron/Q355 steel 2000*3000*200/150 1500
D28/D16 HT300 cast iron/Q355 steel 2000*4000*200/150 2100
Product Advantages
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
  • Reinforced Heavy Load Structure
    Extra thick steel plate and internal reinforcing ribs support bulky heavy steel workpieces and prevent permanent bending under high weight.
  • Universal D28 Grid Hole Layout
    Standard 28mm holes match most global D28 clamping accessories, enabling fast flexible fixture layout for different heavy steel structures.
  • Strong Heat Deformation Resistance
    Gas nitriding treatment creates a hardened surface layer and reduces thermal warping caused by continuous high temperature welding cycles.
  • Strictly Controlled Machining Precision
    Full surface CNC milling ensures consistent hole position accuracy and flatness to keep alignment stable during heavy steel assembly.
  • Interconnected Modular Design
    Multiple individual tables can be joined together to expand working area for oversized steel beams and large frame assemblies.
  • High Resistance To Welding Spatter
    Hardened tabletop withstands hot welding slag and scratches, lowering surface damage and extending the service life in harsh workshop environments.
Product Applications
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
  • Batch production of steel frame structural components
  • Heavy steel beam welding and assembling work
  • Construction machinery structural part manufacturing
  • Container and trailer frame mass fabrication
  • Steel workshop high-volume welding production lines
  • Prefabricated metal component processing
  • Large steel-structure prototype batch trial-production
Customer Feedback
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
Shipping and Delivery
D28 Welding Table For Heavy Steel Fabrication Workshop Tasks
Frequently Asked Questions
What load can this D28 welding table support?
It can take evenly distributed load up to 2 tons per square meter, designed specifically for heavy steel workpiece fabrication.
What is gas nitriding on the tabletop?
Gas nitriding forms a deep uniform hardened layer on steel surface, improving wear resistance while minimizing distortion compared with other hardening methods.
Can I link multiple tables to handle extra large steel workpieces?
Yes. The modular design supports seamless connection of several tables to build a bigger continuous working platform.
Are D28 clamps and stops compatible with this welding table?
This table follows international D28 standard, and works with all standard D28 clamps positioning blocks and angle stops.
Can you adjust table dimensions for our special heavy steel projects?
Custom length width and thickness are available. Please share your workpiece size and load requirement for our technical evaluation.
What inspections will be carried out before shipment?
We perform flatness testing hole position verification and surface hardness inspection on each table before packaging and delivery.
Contact Information

If you want to know more technical details or get a quotation for the D28 welding table for your heavy steel fabrication workshop, please send your inquiry. Our sales and engineering team will provide tailored solutions and competitive pricing to support your workshop metal fabrication projects.
