Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Specifications
Supply Ability :
500 units/month
Hole Standard :
D28, Φ28.1mm, 100×100mm grid
Model Number :
D28
Vertical Tolerance of Side Faces :
≤0.05mm / 200mm
MOQ :
1 PCS
Delivery Time :
15-25 work days
Flatness :
≤0.1mm/1000mm
Payment Terms :
D/A,L/C,D/P,T/T
Tabletop Thickness :
25mm
Structure :
5-sided perforated / 1-sided perforated
Price :
500-1500 USD
Material :
Q355 Steel / HT300 Cast Iron
Surface Treatment :
Deep Gas Nitriding
Standard Working Height :
620 mm (adjustable upon request)
Certification :
CE
Place of Origin :
WUXI , CHINA
Packaging Details :
4000*2000*200mm
Brand Name :
WUXI LEMAR
Static Even Load :
Up to 3~10 Ton/m²
Description
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps

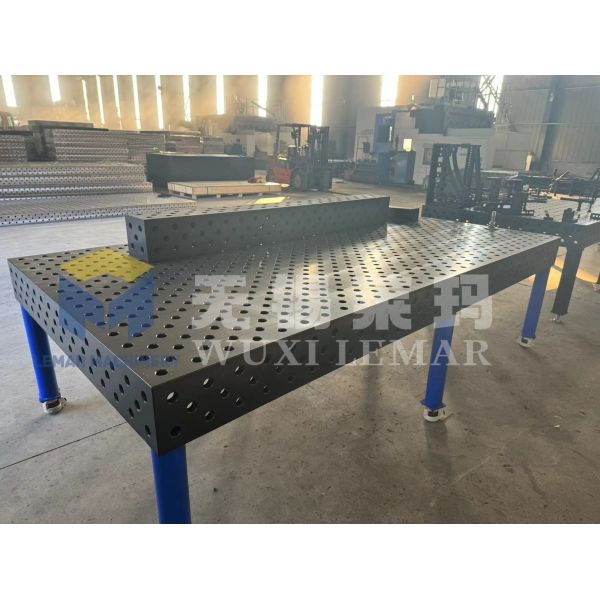

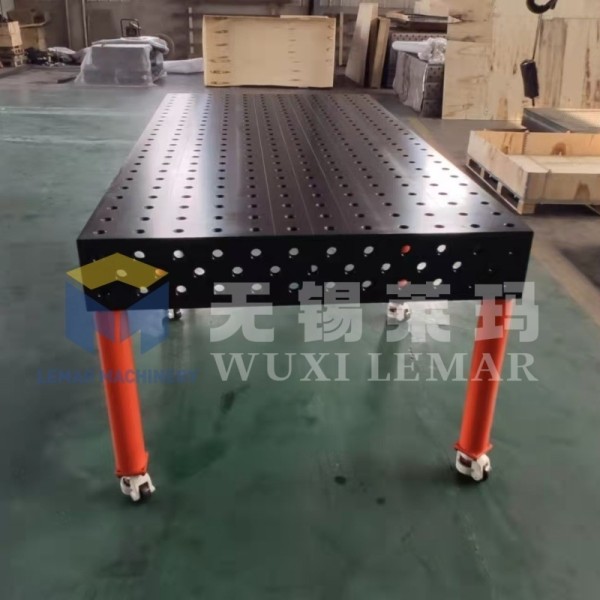

Our Heavy Duty D28 Welding Table Supporting Multi-Angle Positioning Clamps is a professional 3D flexible welding fixture platform engineered for heavy steel fabrication. Built around the universal D28 Φ28mm hole system with 100×100mm grid, this heavy-duty welding table supports full series multi-angle positioning clamps, rotary brackets and quick locking accessories. Featuring optional five-sided hole layout, it enables 3D horizontal, vertical and inclined workpiece clamping to tackle complex frames, chassis and tubular components. Stress-relieved base material paired with deep nitrided tabletop delivers outstanding rigidity, stable flatness and strong resistance against weld spatter, corrosion and abrasion. Eliminate repeated custom jig production, shorten setup time and ensure consistent welding precision for manual workshops and robotic welding stations.
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Dimensional Size Chart
Table Size (Length × Width) Tabletop Thickness Table Flatness Surface Treatment
1000 mm × 800 mm 25mm ≤0.1mm / 1000mm Deep Gas Nitriding
1200 mm × 800 mm 25mm ≤0.1mm / 1000mm Deep Gas Nitriding
1500 mm × 1000 mm 25mm ≤0.1mm / 1000mm Deep Gas Nitriding
2000 mm × 1000 mm 25mm ≤0.1mm / 1000mm Deep Gas Nitriding
2400 mm × 1200 mm 25mm ≤0.1mm / 1000mm Deep Gas Nitriding
3000 mm × 1500 mm 25mm ≤0.1mm / 1000mm Deep Gas Nitriding
4000 mm × 2000 mm 25mm ≤0.1mm / 1000mm Deep Gas Nitriding
Main Advantages
  • Flexible and versatile: One welding table can handle multiple products, eliminating the need for repeated custom tooling and significantly reducing fixture costs
  • Heavy-duty stability: The D28 large-hole system locking pin has strong shear resistance, suitable for welding heavy steel structures
  • Stable precision: Nitriding and stress-relieving treatment prevents deformation over long-term use, ensuring consistent weld dimensions
  • Quick changeover: Disassembly and assembly rely on locking pins, and tooling adjustments can be completed in minutes, suitable for multi-variety, small-batch production
  • Robot compatibility: Uniform dimensional standards enable widespread use in automated robotic welding workstations

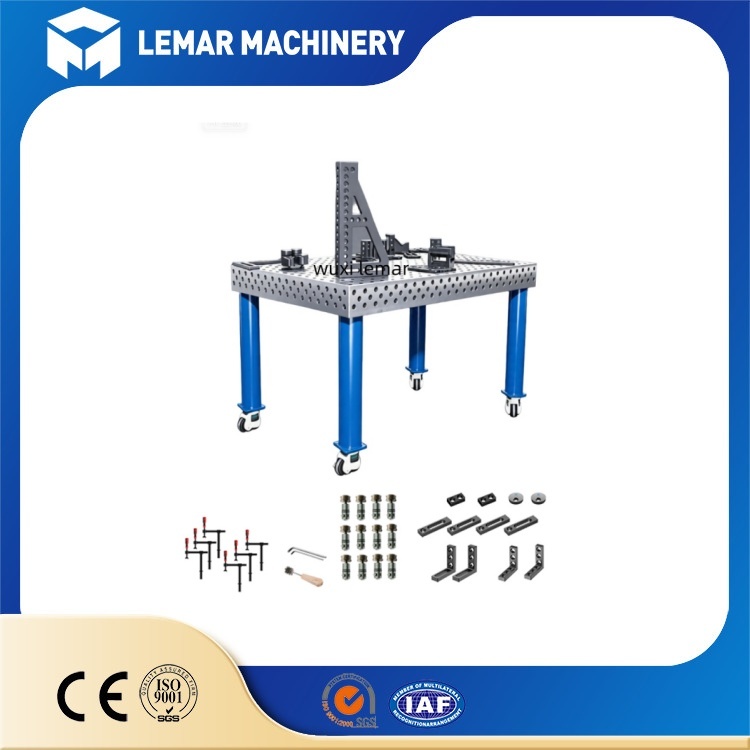

Complete Parts System
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
The platform features a standard D28 interface, allowing for flexible combinations to secure workpieces at any angle from 0° to 180°:
  • Positioning and Support Components: Multi-angle supports, adjustable angle blocks, V-supports, height adjustment spacers, right-angle positioning blocks
  • Clamping Components: Quick-action screw clamps, swivel arm clamps, universal angle hold-down clamps, side clamps
  • Core Connection and Locking Components: D28 quick-locking pins (ball-lock or countersunk types); the complete tooling system enables rapid assembly and disassembly without the need for time-consuming bolting
  • Extension Accessories: Positioning rulers, stop blocks, connecting pins, platform connectors
Competitive Advantages
Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps Heavy Duty D28 Welding Platform Supporting Multi-Angle Positioning Clamps
Other Tables Our Welding Table
Flatness: 0.5-1.0mm
Rough Surface

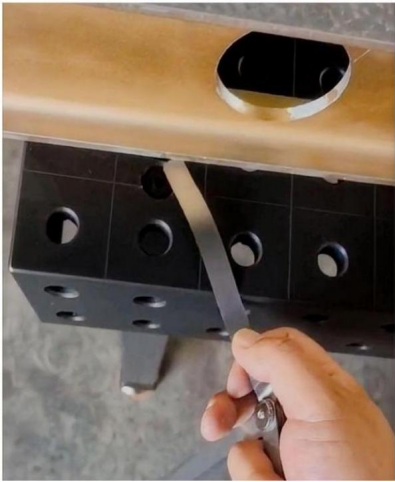

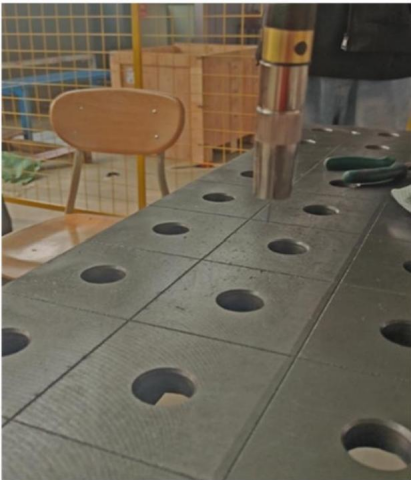

Unstable & Inaccurate		 Flatness: ≤0.1mm
