D28 Series 3D Adjustable Welding Fixture Table
D28 Series 3D Adjustable Welding Fixture Table

Cut your custom jig costs drastically with our D28 Series 3D Adjustable Welding Fixture Table. Built on universal φ28mm 100×100 grid hole system, the five-face machined table enables flexible X/Y/Z three-dimensional clamping. All D28 modular clamps and positioning components can be freely combined to build fixtures within minutes. Two material options and nitriding surface treatment deliver outstanding rigidity, precision and anti-spatter performance. Perfect for heavy vehicle frames, steel structures and automated robotic welding lines.

D28 Series 3D Adjustable Welding Fixture Table D28 Series 3D Adjustable Welding Fixture Table
Standard Dimension Specification
Table Size (L×W) Weight (S355 Welded Steel) Weight (HT300 Cast Iron) Max Uniform Load
1000 × 1000 mm (39.4"×39.4") 780 kg 950 kg 2000 kg
1200 × 800 mm (47.2"×31.5") 720 kg 880 kg 2000 kg
1500 × 1000 mm (59.1"×39.4") 1120 kg 1360 kg 3000 kg
2000 × 1000 mm (78.7"×39.4") 1550 kg 1880 kg 4000 kg
2400 × 1200 mm (94.5"×47.2") 2100 kg 2540 kg 4500 kg
3000 × 1500 mm (118.1"×59.1") 3050 kg 3680 kg 5000 kg
4000 × 2000 mm (157.5"×78.7") 4600 kg 5550 kg 6000 kg
Export Logistics Solutions
  • Tabletop Packaging: Solid wood IPPC-fumigated crate (mandatory for export to prevent destruction at the destination port); tabletop wrapped in waterproof film with desiccant included; plastic plugs inserted into all locating holes; protective corner guards installed.
  • Fixture Accessories: Small items (locking pins, locating blocks) packed in separate metal baskets or cartons, with an accessory list included.
  • Loading Notes: Large welding tables are heavy; verify weight and dimensions before loading into 20GP/40GP containers. For oversized platforms, consider using open-top or flat-rack containers. Secure the load inside the crate with steel strapping to prevent damage from movement or impact during ocean transit.
Application Expansion
D28 Series 3D Adjustable Welding Fixture Table D28 Series 3D Adjustable Welding Fixture Table

In addition to welding fixtures, the D28 welding table can also be used for:

  • Sheet metal assembly fixtures
  • Reference platforms for checking finished product dimensions
  • Base platforms for grinding and deburring fixtures
  • Reference tables for robotic vision positioning

Advantage: A single welding table serves multiple processes, increasing equipment utilization for the customer.

FAQ

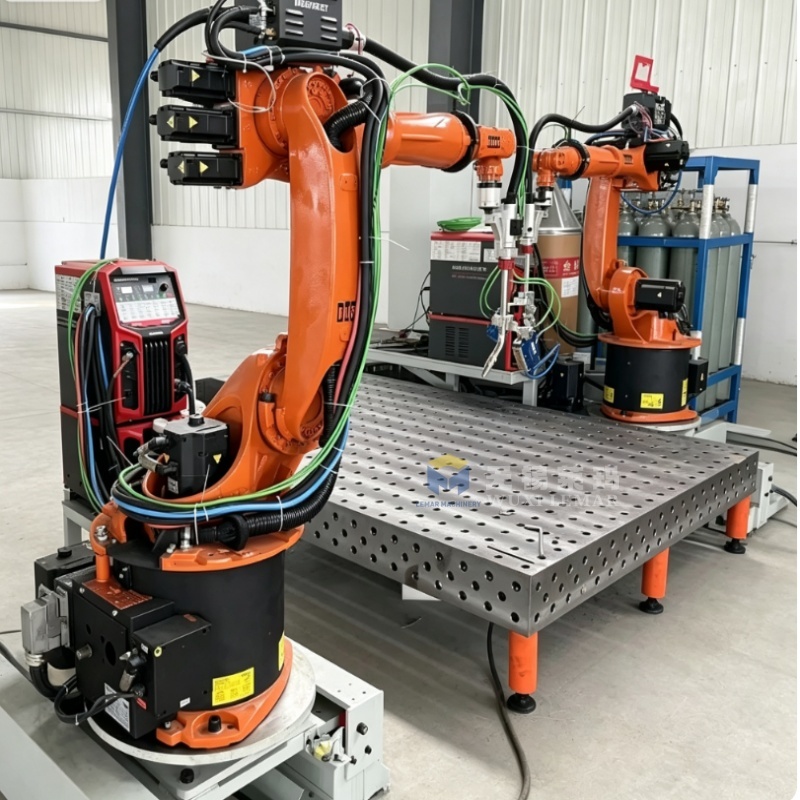

Q: Can I use the table for robotic welding cells?
A: Absolutely. The D28 3D welding table is widely matched with robot welding systems. We can offer installation reference drawings for workstation layout.
Q: What is your warranty policy?
A: We offer a 12-month warranty for the main table body. Consumable clamping parts and locking pins are not covered under the warranty. Damage caused by violent impact or overload is excluded.
Q: Do you accept customized sizes?
A: Standard sizes are in stock. Non-standard customized dimensions are available based on your requirements, with longer production lead time.
Q: Can you provide CE certificate, material test reports and inspection documents?
A: Yes. CE certification, raw material certificates and factory precision inspection reports can be supplied for orders.
Q: Does every side of the D28 table have machined holes?

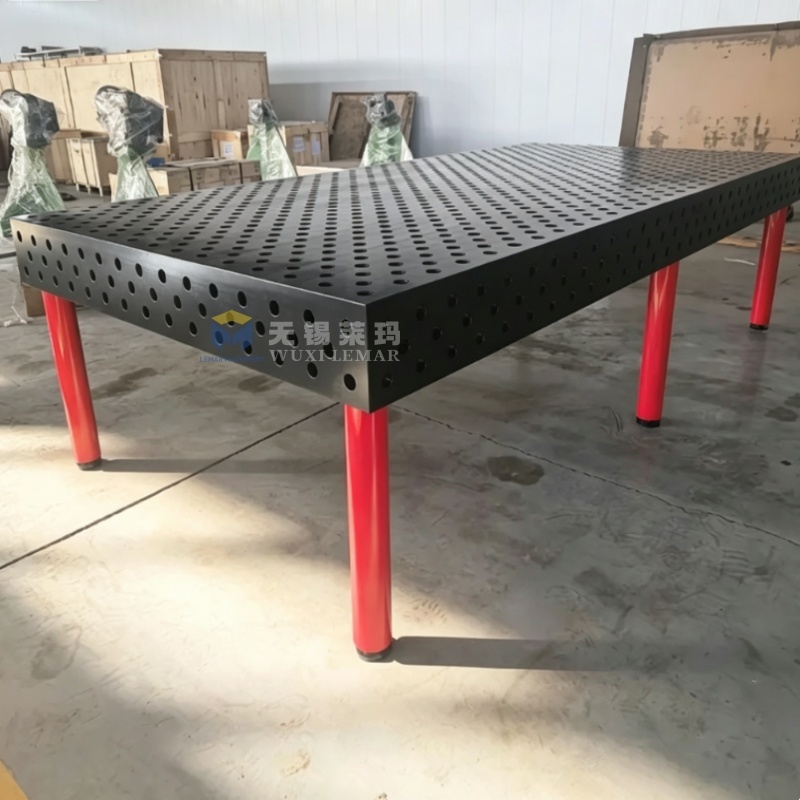

A: Yes. The table adopts full five-sided CNC machining. The top surface and four vertical sides are all drilled and reamed to standard Ø28mm holes, realizing true X/Y/Z 3D multi-angle clamping instead of only top-surface clamping.

Tired of high costs and low reusability of traditional welding jigs? Our D28 Series 3D Adjustable Welding Fixture Table can greatly improve your production efficiency. Contact us today to get detailed datasheets, package plans and the latest quotation.
