Industrial D16 welding table with 1200x1000mm table top and 150mm height
Industrial D16 welding table with 1200x1000mm table top and 150mm height
Industrial D16 welding table with 1200x1000mm table top and 150mm height
Industrial D16 welding table with 1200x1000mm table top and 150mm height
Industrial D16 welding table with 1200x1000mm table top and 150mm height
Industrial D16 welding table with 1200x1000mm table top and 150mm height
Industrial D16 welding table with 1200x1000mm table top and 150mm height
Industrial D16 welding table with 1200x1000mm table top and 150mm height
Specifications
Supply Ability :
500 units/month
Processing :
5‑sided CNC machined, artificial aging stress‑relieved
Model Number :
D16
Hole System :
50×50 mm grid pitch
MOQ :
1 PCS
Delivery Time :
15-25 work days
Hole diameter :
Φ16.065‑16.149 mm
Compatibility :
Fits global D16 standard tooling
Payment Terms :
L/C,D/A,D/P,T/T
Surface treatment :
Plasma nitriding, HV550-800
Price :
500-1500 USD
Material :
Q355 Steel (standard), optional HT300 Cast Iron
Certification :
CE
Tabletop Flatness :
≤0.1 mm /1000mm
Brand Name :
WUXI LEMAR
Size :
1200x1000mm
Place of Origin :
WUXI , CHINA
Adjacent hole tolerance :
±0.05 mm
Packaging Details :
4000*2000*200m
Description
Industrial D16 Welding Table with 1200×1000mm Table Top and 150mm Height
Industrial D16 welding table with 1200x1000mm table top and 150mm height

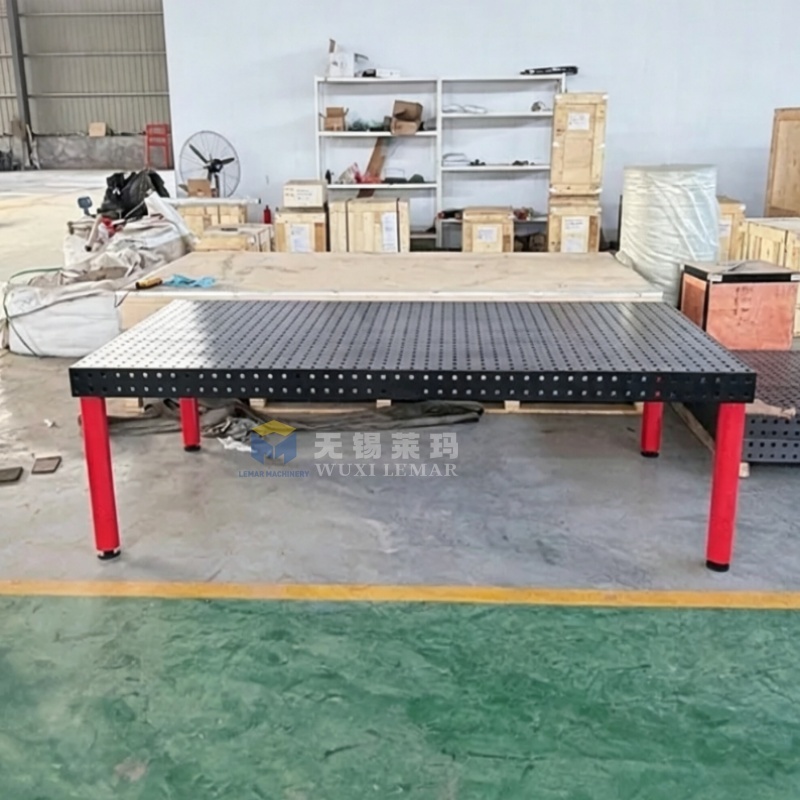

The D16 3D Flexible Welding Table 1200 × 1000 mm with 150 mm side wall height is a high-precision modular fixture platform designed for accurate positioning and assembly of medium-small welding workpieces. Adopting D16 Φ16 mm locating hole system with 50×50 mm standard grid, the table integrates five-sided CNC machined surfaces, enabling multi-direction clamping on top and four vertical side faces.

Processed with artificial aging stress relief and plasma nitriding hardening treatment, the table body effectively avoids long-term deformation and delivers excellent anti-spatter and wear-resistant performance. All locating holes are precision-reamed to D10 tolerance, fully compatible with worldwide D16 standard clamps, locating pins and positioning blocks.

Please note: This is a table-body-only offer; support legs and tooling accessories require separate purchase. Widely adopted for metal fabrication, chassis manufacturing, tubular parts processing and robotic welding stations.


Industrial D16 welding table with 1200x1000mm table top and 150mm height Industrial D16 welding table with 1200x1000mm table top and 150mm height
Tolerance System
Item Technical Specification Remarks
Tabletop Flatness ≤0.1 mm /1000mm Max allowable error 0.12mm for full 1200×1000 table
Center-to-center Distance of Adjacent Holes ±0.05 mm 50mm grid pitch
Cumulative Hole Spacing Error ≤0.1mm/1000mm No progressive deviation over long distances
Perpendicularity Between Side Faces & Tabletop ≤0.1mm/200mm Guarantees right-angle accuracy for side-clamped workpieces
Hole Diameter Φ16.065-16.149 mm Compatible with standard D16 locating pins
Perpendicularity of Holes To Tabletop ±0.03mm Prevents tilted insertion of locating pins
Accuracy and Interchangeability of Hole Systems
  • D16 Hole Diameter: Φ16.065-16.149 mm (D10 tolerance)
  • Grid: 50 mm × 50 mm; adjacent hole spacing tolerance of ±0.05 mm with no cumulative error; holes on all five faces machined in a single setup using a gantry CNC machine
  • Locating pins, squares, and clamps comply with ISO/DIN industry standards and are compatible with fixtures from major European brands, avoiding reliance on accessories from a single manufacturer
D16 welding tables feature a fine grid, making them suitable for the precision clamping of small parts; D28 welding tables feature a 100 mm grid, making them suitable for heavy, large-scale workpieces.
List of Optional Accessories
Industrial D16 welding table with 1200x1000mm table top and 150mm height
  1. Positioning Components: D16 locking positioning pins, zero-point stops, 90° positioning squares, V-blocks, angle positioners
  2. Clamping Components: Manual quick-action clamps, screw clamps, pneumatic clamps
  3. Support Components: Adjustable support blocks, riser blocks, support pillars
  4. Connecting Components: Connecting pins, connecting plates
  5. Accessories: Lifting eyes, protective covers, robot adapter bases

Looking for a reliable modular fixturing solution for your workshop?

Our D16 3D Flexible Welding Table 1200 × 1000 mm, 150 mm Side Wall Height can be matched with various D16 clamps, locating pins and support legs according to your actual demands. Drop us an inquiry now to get your competitive offer.
