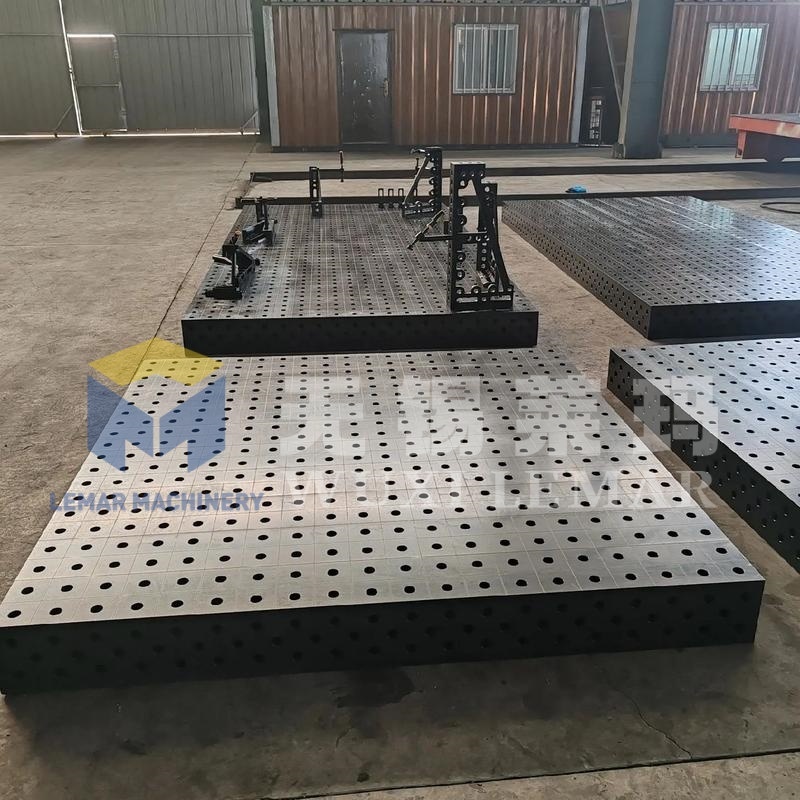

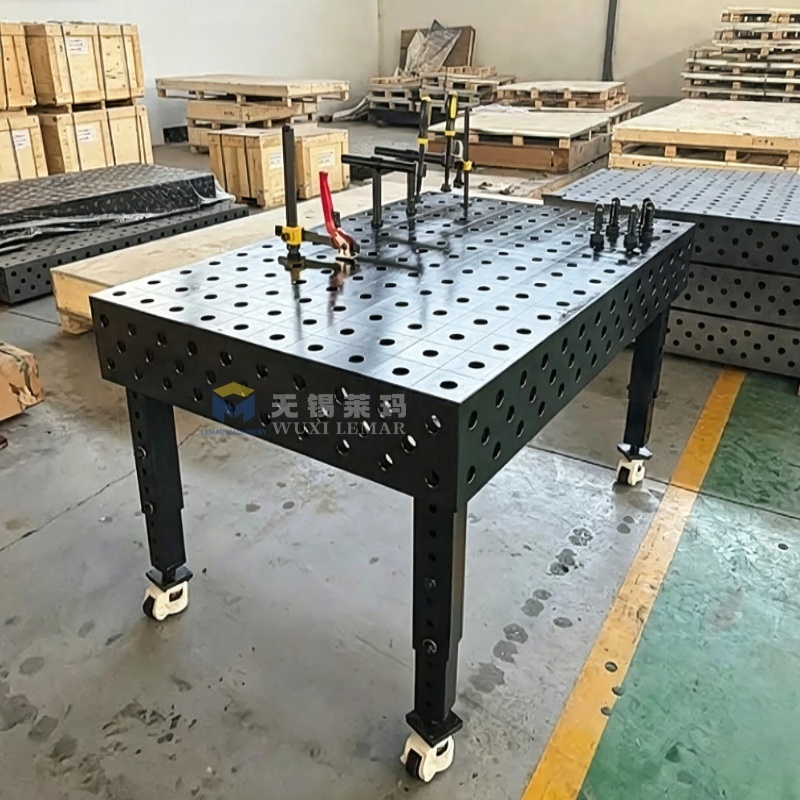

D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
Specifications
Supply Ability :
500 units/month
Hole System :
D28 (Φ28mm)
Model Number :
D28
Structure :
5-sided built-in clamping grid
MOQ :
1 PCS
Delivery Time :
15-25 work days
Surface Treatment :
Nitriding (Standard)
Payment Terms :
D/A,L/C,D/P,T/T
Hole Pitch :
100 mm × 100 mm
Material Options :
Q355 Steel/ HT300 Cast iron
Price :
500-1500 USD
Hole Tolerance :
±0.05 mm
Surface Flatness :
≤0.1 mm/m
Nitriding Layer Depth :
0.2–0.4 mm
Certification :
CE
Place of Origin :
WUXI , CHINA
Packaging Details :
4000*2000*200mm
Brand Name :
WUXI LEMAR
Surface Hardness :
HV 550–800
Description
D28 Heavy Duty Welding Table with Built-in Clamping Grid and Angle Guides
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides

Tired of costly custom welding jigs and frequent dimensional errors during fabrication? Our D28 Heavy Duty Welding Table with Built-in Clamping Grid and Angle Guides offers a flexible, long-lasting solution for heavy-duty welding tasks.

Featuring a built-in five-face clamping grid based on standard D28 hole system, the platform allows multi-angle clamping and rapid reconfiguration for different workpieces. The complete angle guide accessory system supports precise positioning of rectangular frames, diagonal trusses and complex assemblies. Robust load-bearing structure and anti-spatter nitrided surface guarantee stable performance under long-hour production. Suitable for MIG, TIG welding and assembly inspection, this modular welding table maximizes production efficiency for fabricators handling heavy steel structures.


D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides

Selection Distinction
Item D28 Welding Table (This Model) D16 Light-Duty Welding Table
Hole Diameter / Hole Pitch Φ28 mm / 100×100 mm Φ16 mm / 50×50 mm
Clamping Force High capacity, compatible with heavy-duty clamps For medium & light-duty clamping fixtures
Typical Workpieces Chassis, construction machinery, heavy steel structures, large frames Sheet metal, small frames, precision stainless steel assemblies
Table Weight Heavier Lightweight design
Investment Orientation Heavy industry, mass steel fabrication, robotic welding cells General sheet metal workshops, small fabrication shops
Core Advantages
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides

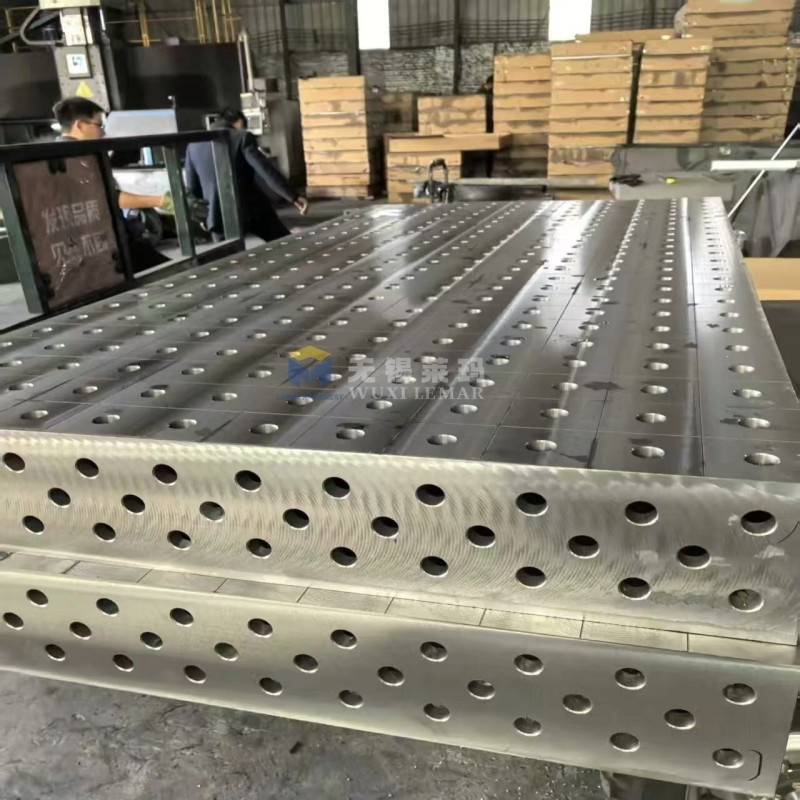

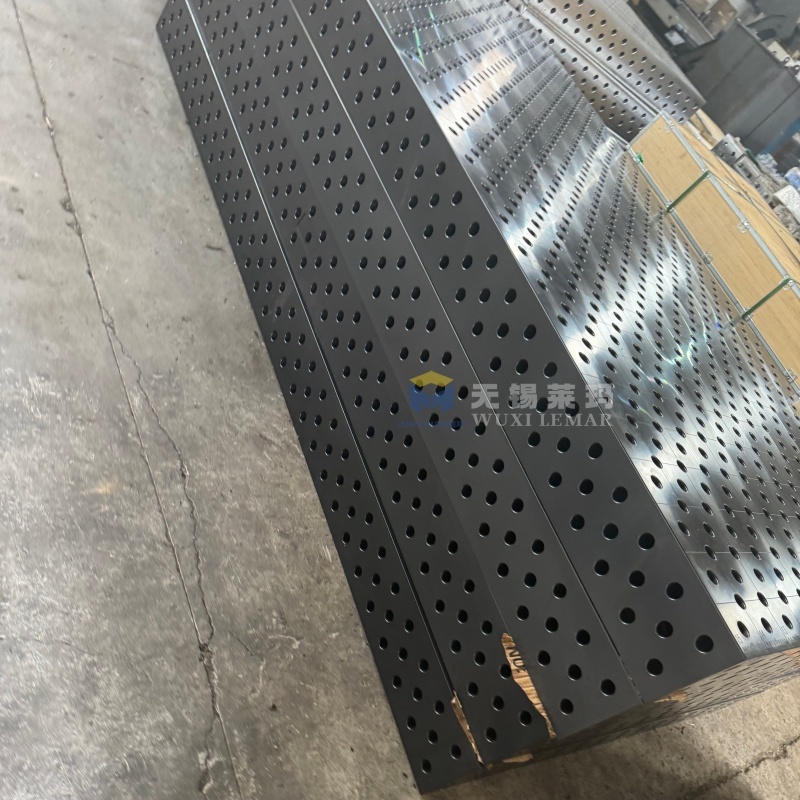

  • Built-in Clamping Grid System: The table and four side walls feature evenly distributed standard D28 holes, enabling 3D spatial clamping (fixing workpieces at multiple angles vertically, horizontally, and laterally). The coordinate grid has a built-in scale reference, reducing repeated measurements and significantly lowering dimensional errors.

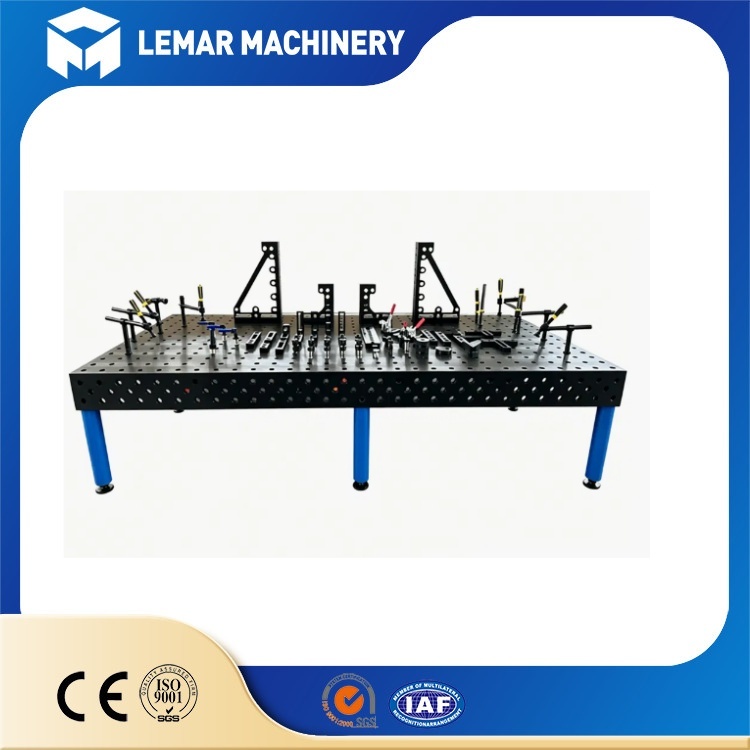

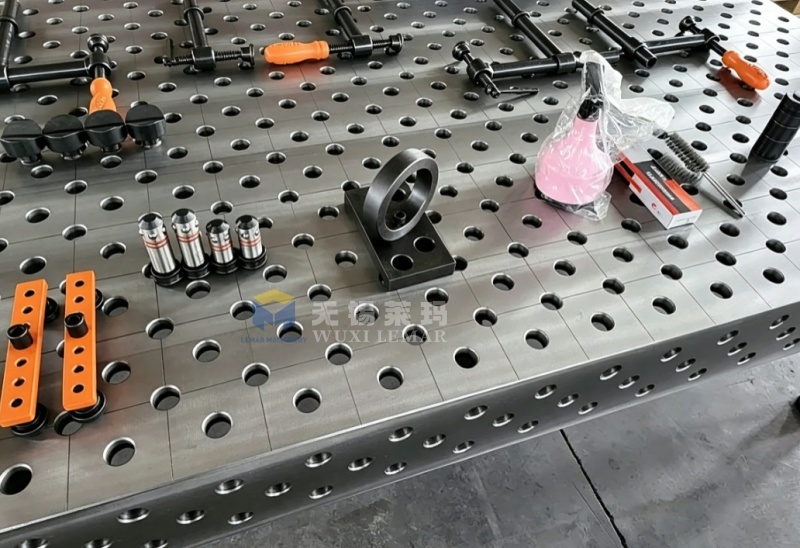

  • Compatible with Complete D28 Standard Tooling: The welding table can be directly equipped with: 90° positioning angle irons, adjustable angle brackets, quick clamps, positioning pins, V-blocks, support blocks, and extended square boxes, easily achieving workpiece positioning at any angle from 0-180°, perfectly welding square tube frames, machine frames, trusses, and box structures.

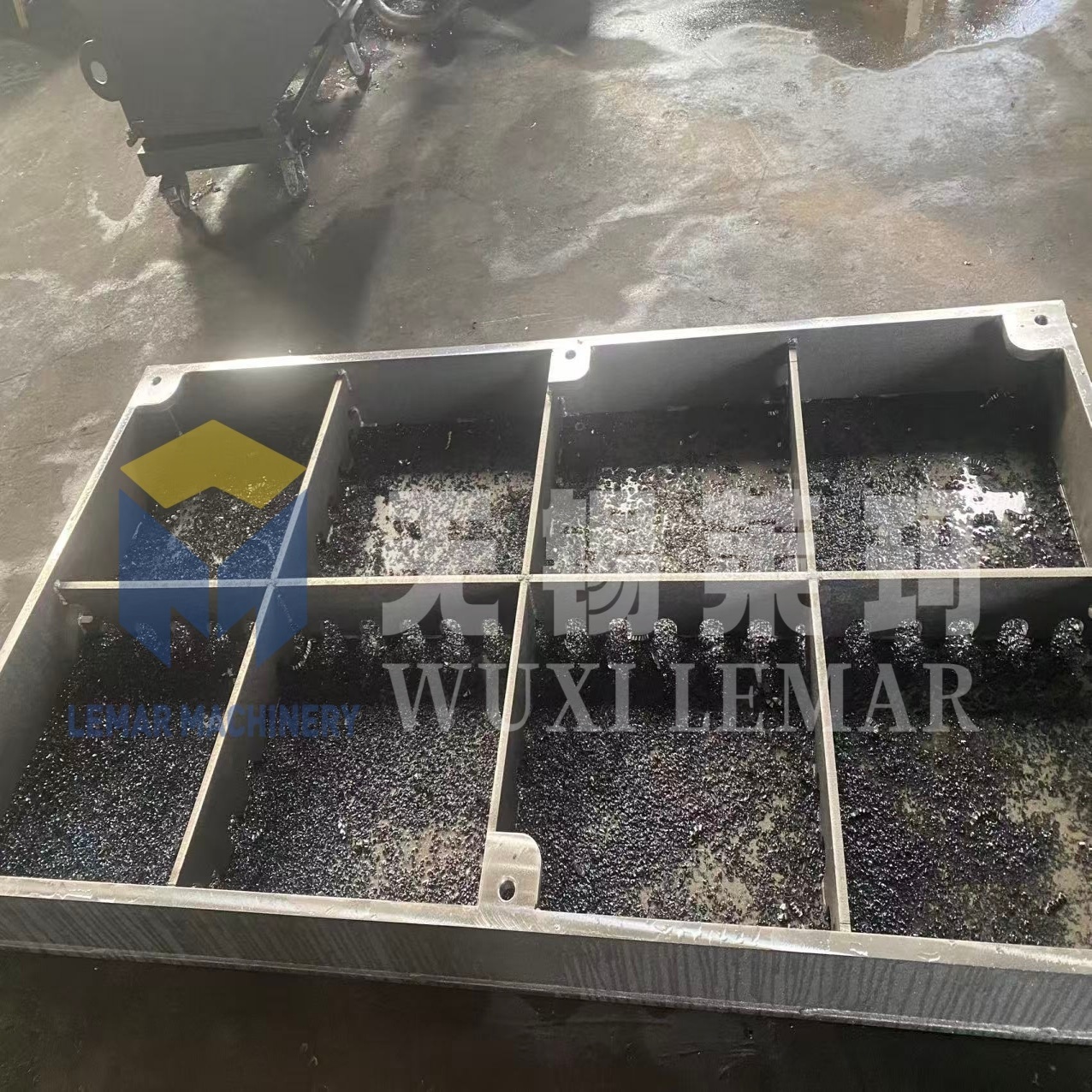

  • Heavy Duty Rigid Structure: The box-shaped reinforced base resists welding heat deformation when welding large components, preventing platform warping; suitable for thick steel plates, large vehicle frames, and engineering machinery structural components.
  • High Repeatability Positioning Accuracy: During mass production, the clamping position is consistent each time, effectively reducing welding rework and meeting the dimensional consistency requirements of export customers.
Transportation and Delivery
  • Packaging: Solid wood fumigated crate (essential for export, fumigation certificate provided), tabletop covered with protective board, and protective plugs for holes
  • Shipping: Large welding tables (over 2000mm) are very heavy, so full container load (FCL) shipping is preferred; for LCL shipments, extra reinforcement is needed to prevent deformation during transport
  • Delivery Time: 15-20 days for nitrided steel welding tables; 15-20 days for HT300 cast iron welding tables
Customer Reviews
D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides D28 Heavy Dduty Welding Table with Built-in Clamping Grid and Angle Guides
FAQ
Are the D28 accessories interchangeable with other famous brands?
Our D28 hole system follows international standard dimensions. Locating pins, clamps and angle brackets are fully interchangeable with mainstream European standard 3D welding table accessories.
Can you offer customized sizes?
Standard sizes are in stock for quick delivery. Custom length and width are acceptable for bulk orders. Contact our sales team for detailed quotations and lead time.
Can multiple clients combine one container together?
We accept consolidated container loading for multiple buyers, as long as all goods are ready within the same production schedule.
What trade terms can you provide?
We support EXW, FOB, CFR and CIF. If you need DAP or DDP terms, please contact our sales team to confirm freight cost.

Stop wasting time on inefficient custom welding jigs. Invest in our D28 Heavy Duty Welding Table with Built-in Clamping Grid and Angle Guides for flexible, repeatable and precise metal assembly.

Share your production demands, workpiece types and target budget via inquiry. We will recommend the most suitable table size and matching D28 fixture sets for you.
