2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
Specifications
Supply Ability :
500 units/month
Applicable Material :
Stainless Steel, Carbon Steel, Aluminum
Model Number :
ZFH-2000
Frequency Range :
High Frequency
MOQ :
1
Delivery Time :
10-20 work days
Travel Driving System :
Servo Motor Drive
MOQ :
1 Set
Payment Terms :
,T/T,D/P,D/A,L/C
Input Voltage :
380V/50Hz 3 Phase (Custom 220V/415V)
Price :
500-1000USD
Cooling System :
Water Cooling Copper Mandrel
Certification :
CE
Applicable Plate :
Thickness 0.8-6mm
Brand Name :
LEMAR
Model NO. :
ZTH-2000
Place of Origin :
WUXI
Welding Type :
TIG / MIG / Mag / Plasma
Packaging Details :
220.00cm * 130.00cm * 120.00cm
Description

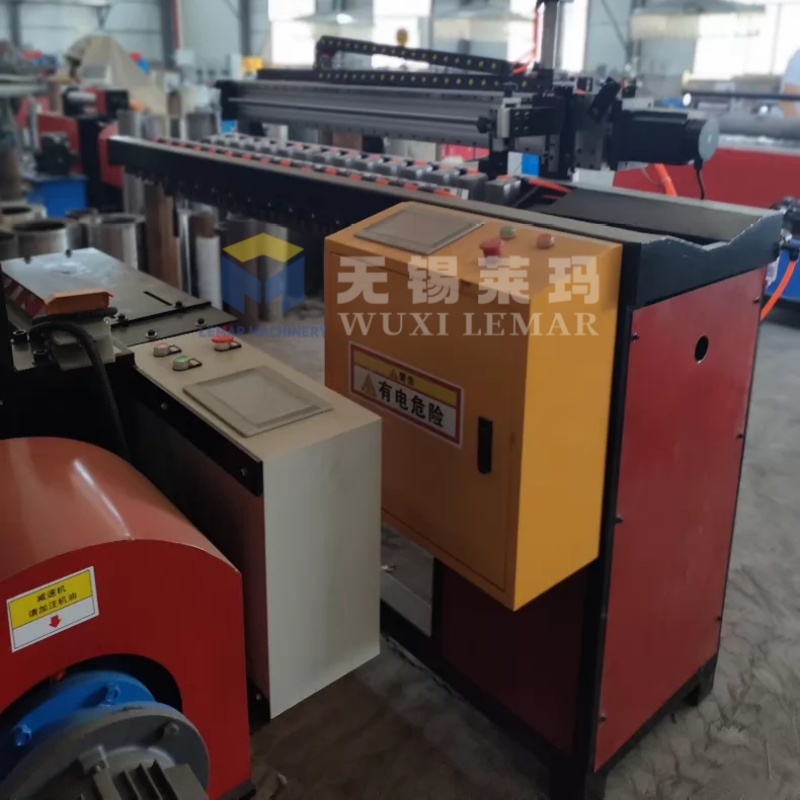

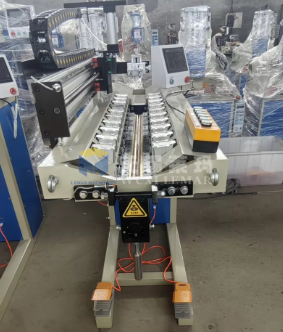

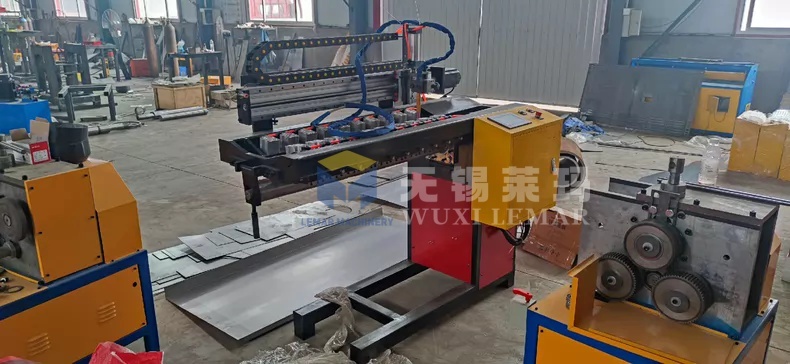

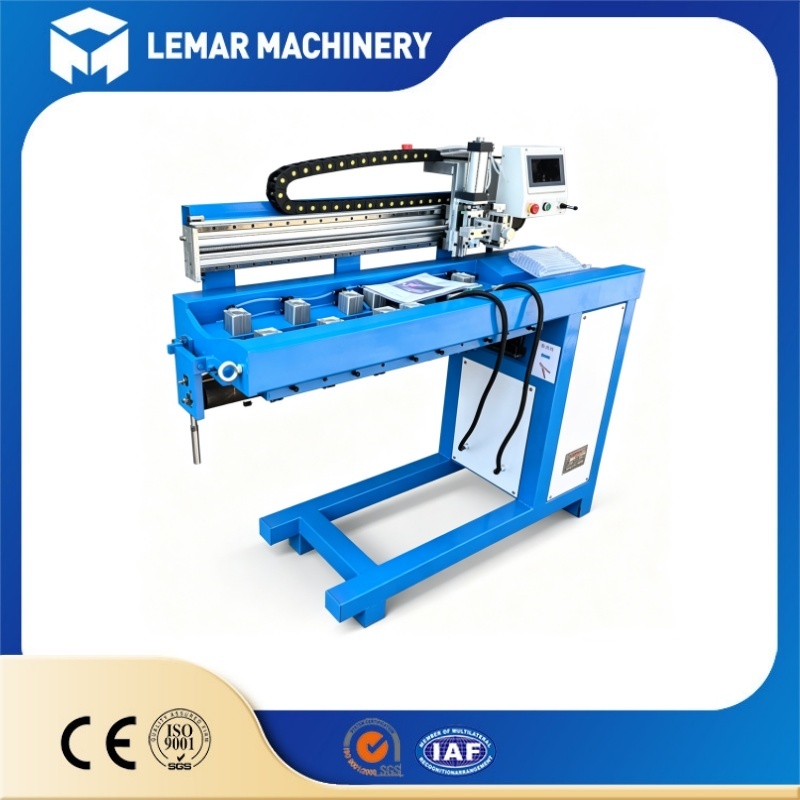

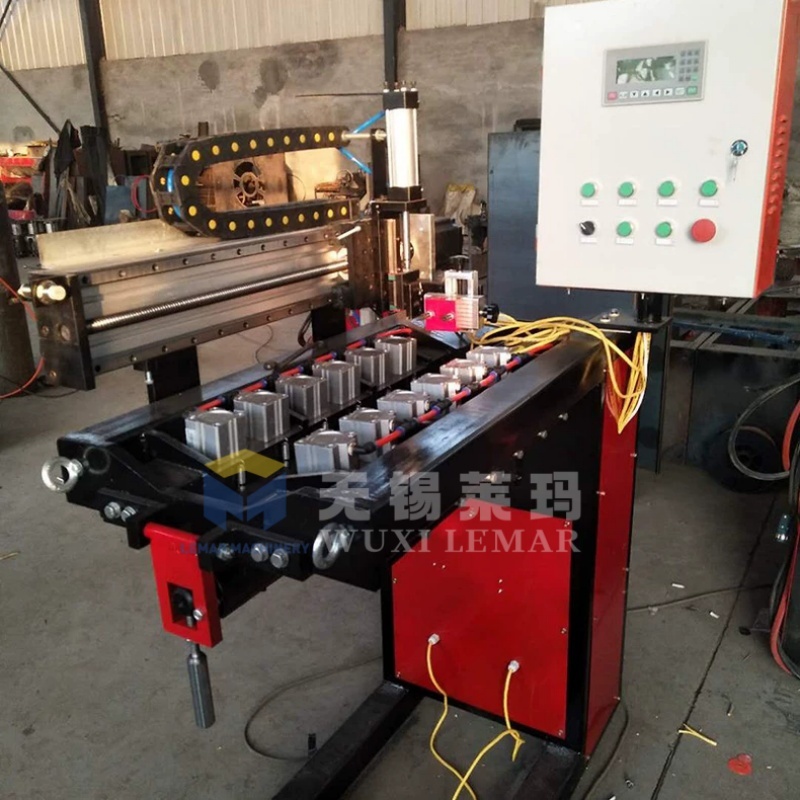

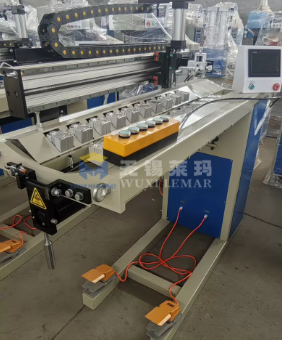

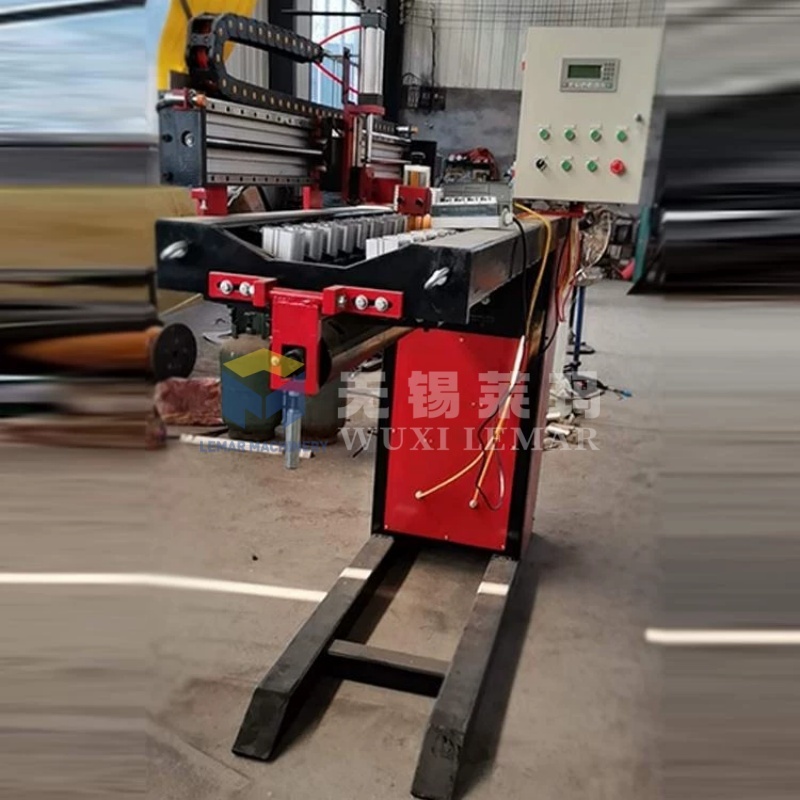

2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
This 2000mm longitudinal seam welding machine is dedicated for straight seam automatic welding of stainless steel, carbon steel cylinder plates, tank side plates and barrel shells. Equipped with precise clamping mechanism, linear guide travel and stable welding torch lifting system, it realizes one-time forming for long straight welds. Matched with welding turning rolls and positioners to build full-automatic tank production line, with CE certification, suitable for pressure vessel, food sanitary tank, water tank and pipe manufacturing factories.
2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
Core Technical Parameters
Item Specification
Effective Welding Length 2000mm
Applicable Plate Thickness 1-12mm
Workpiece Material Carbon steel, stainless steel, aluminum alloy
Clamping Mode Pneumatic heavy clamping
Welding Source MIG/TIG customized
Guide Rail Precision linear guide
Power Supply 380V/400V EU customized
Certification CE
Product Advantages
High Weld Straightness
Linear guide movement ensures straight welding track, no weld deviation, neat weld bead for subsequent polishing.
Pneumatic Firm Clamping
Double-side pneumatic pressing to eliminate plate gap, avoid welding penetration defect, stable for thin & thick plate welding.
Adjustable Welding Torch Height
Manual/electric torch lifting adapts to different plate thickness and welding processes.
Integrated Frame Structure
Whole frame stress relief treatment, no deformation after long-time continuous operation.
Easy Operation
Simple control panel, one-key start for automatic welding, lower requirement for welder skill.
2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing
Matching Equipment
  • Adjustable welding turning rolls for circular girth welding
  • Heavy-duty welding positioner for head overturn welding
  • Automatic welding manipulator for multi-angle welding operation
  • Welding power source to match TIG/MIG welding process
  • Welding flux recovery machine for workshop cleaning

2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing2000mm Longitudinal Welding Machine for Pipe Shell Manufacturing

Looking for stable, high-efficiency 2000mm longitudinal seam welding machine to upgrade your tank workshop? Our straight seam welders serve thousands of pressure vessel, sanitary tank and metal cylinder manufacturers globally. We supply free technical layout design, operation manual and long-term quality warranty. Send your inquiry now, our sales engineer will provide factory direct price and complete production line layout suggestion!
